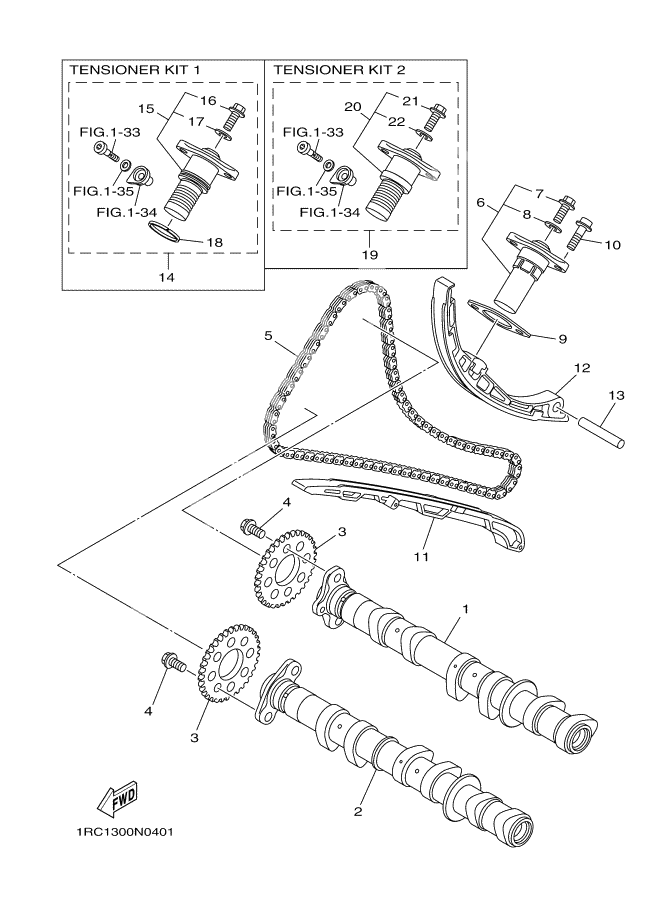

CAMSHAFT
CAMSHAFT
CAMSHAFT ASSY 1 (Ref #1)
1
Part #1RC-12170-00
CAMSHAFT ASSY 2 (Ref #2)
2
Part #1RC-12180-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
Bolt, Flange (Ref #4)
4
Part #90105-07006
Bolt, Flange (Ref #4)
4
Part #90105-07006
Bolt, Flange (Ref #4)
4
Part #90105-07006
Bolt, Flange (Ref #4)
4
Part #90105-07006
CHAIN (Ref #5)
5
Part #94591-57128
Tensioner Assy, Cam Chain (Ref #6)
6
Part #1RC-12210-03
. BOLT (Ref #7)
7
Part #5EL-12228-00
. GASKET (Ref #8)
8
Part #5SL-12214-00
Gasket, Tensioner Case (Ref #9)
9
Part #1RC-12213-00
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06395
Damper, Chain 1 (Ref #11)
11
Part #1RC-12251-00
チエーンダンパアセンブリ (Ref #12)
12
Part #1RC-12250-01
Pin, Dowel (Ref #13)
13
Part #93607-44002
テンシヨナーキツト 1 (Ref #14)
14
Part #99999-04254
. テンシヨナーアセンブリ,カムチエーン (Ref #15)
15
Part #1RC-12210-09
. RING (Ref #18)
18
Part #1RC-14633-09
テンシヨナーキツト 2 (Ref #19)
19
Part #99999-04255
. テンシヨナーアセンブリ,カムチエーン (Ref #20)
20
Part #1RC-12210-08
