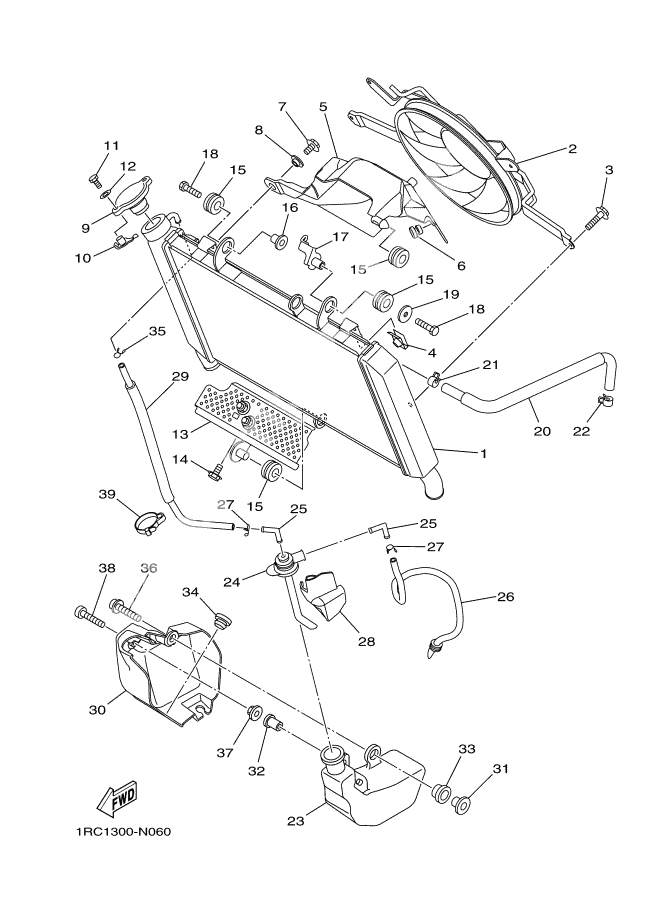

RADIATOR AND HOSE
RADIATOR AND HOSE
Radiator assy (Ref #1)
1
Part #1RC-12461-00
ブロワーアセンブリ (Ref #2)
2
Part #1RC-12405-00
BOLT, BLOWER HOLDING (Ref #3)
3
Part #3D8-12675-00
PLATE (Ref #4)
4
Part #1AA-12535-00
カバー,ラジエタ (Ref #5)
5
Part #1RC-12467-00
PLUG (Ref #6)
6
Part #90338-07157
Bolt, Flange (Ref #7)
7
Part #90105-06080
COLLAR (Ref #8)
8
Part #90387-07717
. CAP, RADIATOR (Ref #9)
9
Part #4FL-12462-00
STOPPER (Ref #10)
10
Part #5FC-12437-00
BOLT (Ref #11)
11
Part #97007-05012
Washer, Plate (Ref #12)
12
Part #92907-05600
STAY 1 (Ref #13)
13
Part #1RC-12637-00
Bolt, Flange (Ref #14)
14
Part #95822-06012
Collar (Ref #16)
16
Part #90387-06158
ガイド,ケーブル 2 (Ref #17)
17
Part #1RC-26132-00
BOLT (Ref #18)
18
Part #91312-06030
BOLT (Ref #18)
18
Part #91312-06030
BOLT (Ref #18)
18
Part #91312-06030
BOLT (Ref #18)
18
Part #91312-06030
Washer, Plate (Ref #19)
19
Part #90201-06033
HOSE 1 (Ref #20)
20
Part #1RC-1243A-00
CLIP (Ref #21)
21
Part #90467-10039
Tank, Recovery (Ref #23)
23
Part #1RC-21871-00
CAP (Ref #24)
24
Part #1RC-21875-00
Elbow (Ref #25)
25
Part #1RC-21828-00
Elbow (Ref #25)
25
Part #1RC-21828-00
Elbow (Ref #25)
25
Part #1RC-21828-00
Elbow (Ref #25)
25
Part #1RC-21828-00
PIPE, BREATHER (Ref #26)
26
Part #1RC-21826-00
CLIP (Ref #27)
27
Part #90467-08075
CLIP (Ref #27)
27
Part #90467-08075
CLIP (Ref #27)
27
Part #90467-08075
CLIP (Ref #27)
27
Part #90467-08075
PROTECTOR 1 (Ref #28)
28
Part #1RC-22825-00
PIPE 1 (Ref #29)
29
Part #1RC-21816-00
Cover (Ref #30)
30
Part #1RC-2172W-00
Collar (Ref #31)
31
Part #90387-06285
NUT (Ref #32)
32
Part #90179-05523
Collar (Ref #33)
33
Part #1RC-21749-00
Grommet (Ref #34)
34
Part #90480-13203
Bolt, Hexagon Socket Head (Ref #36)
36
Part #90110-06233
Collar (Ref #37)
37
Part #1RC-21748-00
Bolt, Button Head (Ref #38)
38
Part #92012-05030
CLAMP (Ref #39)
39
Part #90464-07M40
