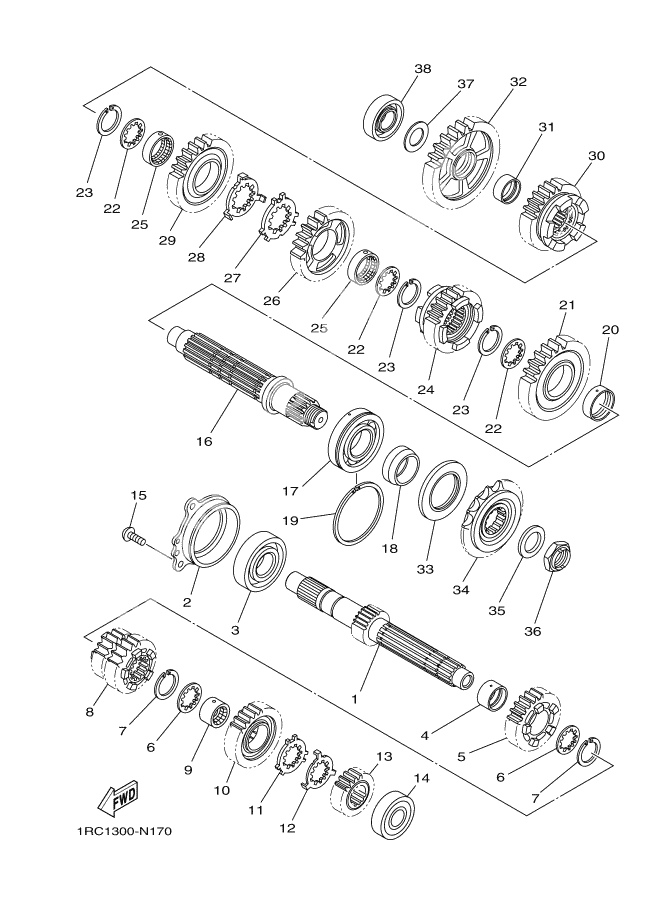

Трансмиссия
Трансмиссия
AXLE, MAIN (15T) (Ref #1)
1
Part #1RC-17411-00
HOUSING, BEARING 1 (Ref #2)
2
Part #1RC-15163-00
Bearing (Ref #3)
3
Part #93306-30534
COLLAR (Ref #4)
4
Part #90387-25030
GEAR, 5TH PINION (21T) (Ref #5)
5
Part #1RC-17151-00
Washer (Ref #6)
6
Part #90209-21332
Washer (Ref #6)
6
Part #90209-21332
Washer (Ref #6)
6
Part #90209-21332
Washer (Ref #6)
6
Part #90209-21332
Circlip (Ref #7)
7
Part #93440-25186
Circlip (Ref #7)
7
Part #93440-25186
Circlip (Ref #7)
7
Part #93440-25186
Circlip (Ref #7)
7
Part #93440-25186
ギア,サードピニオン (21T/21T) (Ref #8)
8
Part #1RC-17131-00
Collar (Ref #9)
9
Part #90387-21003
GEAR, 6TH PINION (27T) (Ref #10)
10
Part #1RC-17161-00
Washer (Ref #11)
11
Part #90209-22352
Washer (Ref #12)
12
Part #90209-21351
GEAR, 2ND PINION (19T) (Ref #13)
13
Part #1RC-17121-00
Bearing (Ref #14)
14
Part #93306-20464
SCREW (Ref #15)
15
Part #90149-06082
Axle, Drive (Ref #16)
16
Part #1RC-17421-00
Bearing (Ref #17)
17
Part #93306-20663
Collar (Ref #18)
18
Part #90387-30012
Circlip (Ref #19)
19
Part #93440-64199
COLLAR (Ref #20)
20
Part #90387-31003
ギア,セカンドホイール (38T) (Ref #21)
21
Part #1RC-17221-00
ギア,シツクスホイール (28T) (Ref #24)
24
Part #1RC-17261-00
COLLAR (Ref #25)
25
Part #90387-28004
COLLAR (Ref #25)
25
Part #90387-28004
COLLAR (Ref #25)
25
Part #90387-28004
COLLAR (Ref #25)
25
Part #90387-28004
ギア,フオースホイール (29T) (Ref #26)
26
Part #1RC-17241-00
Washer, Claw (Ref #27)
27
Part #90214-29002
Washer, Claw (Ref #28)
28
Part #90214-28002
ギア,サードホイール (34T) (Ref #29)
29
Part #1RC-17231-00
GEAR, 5TH WHEEL (25T) (Ref #30)
30
Part #1RC-17251-00
COLLAR (Ref #31)
31
Part #90387-25008
ギヤ,フアーストホイール (40T) (Ref #32)
32
Part #1RC-17211-00
Oil Seal (Ref #33)
33
Part #93102-40030
SPROCKET, DRIVE (16T) (Ref #34)
34
Part #5PS-17460-00
Washer, Conical Spring (Ref #35)
35
Part #90208-22002
NUT (Ref #36)
36
Part #90179-22018
Washer, Plate (Ref #37)
37
Part #90201-20008
