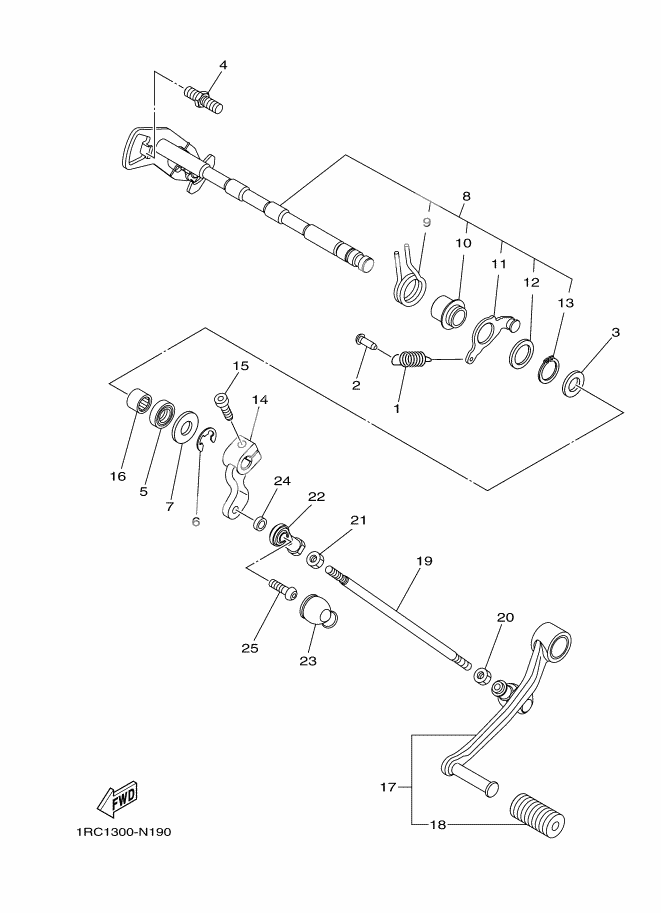

SHIFT SHAFT
SHIFT SHAFT
Spring, Tension (Ref #1)
1
Part #90506-18021
HOOK, SPRING (Ref #2)
2
Part #1321634600
Washer, Plate (Ref #3)
3
Part #90201-127E1
STOPPER, SCREW (Ref #4)
4
Part #1D7-18127-00
OIL SEAL (SD 12-22-5 HS) (Ref #5)
5
Part #93102-12106
Circlip (Ref #6)
6
Part #99002-10600
WASHER, PLATE (Ref #7)
7
Part #90201-12575
Shift Shaft Assy (Ref #8)
8
Part #1RC-18101-00
. SPRING, TORSION (Ref #9)
9
Part #90508-32141
. SPACER (Ref #10)
10
Part #2C0-18175-00
. ストツパレバーアセンブリ (Ref #11)
11
Part #1RC-18140-00
WASHER, PLATE (Ref #12)
12
Part #90201-177G4
Circlip (Ref #13)
13
Part #99009-17400
ARM, SHIFT (Ref #14)
14
Part #1RC-18112-00
BOLT (Ref #15)
15
Part #91312-06020
BEARING (Ref #16)
16
Part #93317-11295
Shift Pedal Assy (Ref #17)
17
Part #1RC-18110-00
. COVER, SHIFT PEDAL (Ref #18)
18
Part #5EB-18113-00
ROD, SHIFT 2 (Ref #19)
19
Part #3VD-18115-00
NUT(COUNTER CLOCKWISE) (Ref #20)
20
Part #90170-06228
NUT (Ref #21)
21
Part #95304-06700
JOINT, ROD 1 (Ref #22)
22
Part #5VX-18116-00
COVER, DUST (Ref #23)
23
Part #5VX-18154-00
COLLAR (Ref #24)
24
Part #90387-06372
BOLT (Ref #25)
25
Part #90111-06098
