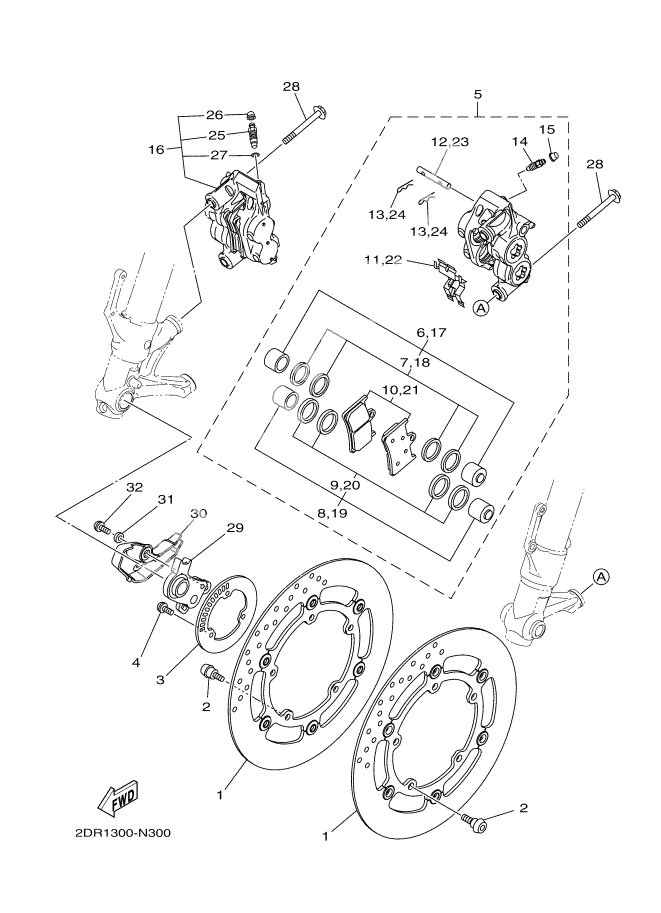

FRONT BRAKE CALLIPER
FRONT BRAKE CALLIPER
Disk Brake Assy (Ref #1)
1
Part #1RC-2581T-00
Disk Brake Assy (Ref #1)
1
Part #1RC-2581T-00
Disk Brake Assy (Ref #1)
1
Part #1RC-2581T-00
Disk Brake Assy (Ref #1)
1
Part #1RC-2581T-00
BOLT (Ref #2)
2
Part #90109-064G6
BOLT (Ref #2)
2
Part #90109-064G6
BOLT (Ref #2)
2
Part #90109-064G6
BOLT (Ref #2)
2
Part #90109-064G6
Rotor, Sensor (Ref #3)
3
Part #2DR-2517G-00
Screw (Ref #4)
4
Part #90149-05029
Caliper Assy (Left) (Ref #5)
5
Part #1RC-2580T-00
. PISTON ASSY, CALIPER (Ref #6)
6
Part #4SV-25802-10
. . CALIPER SEAL KIT (Ref #7)
7
Part #3GM-25803-10
. PISTON ASSY, CALIPER (Ref #8)
8
Part #4SV-25802-00
. . CALIPER SEAL KIT (Ref #9)
9
Part #3MA-25803-10
. BRAKE PAD KIT (Ref #10)
10
Part #5SL-25805-00
. SUPPORT, PAD (Ref #11)
11
Part #13S-25919-00
. PIN, PAD (Ref #12)
12
Part #4SV-25924-00
. CLIP (Ref #13)
13
Part #3GM-25925-00
. CLIP (Ref #13)
13
Part #3GM-25925-00
. CLIP (Ref #13)
13
Part #3GM-25925-00
. CLIP (Ref #13)
13
Part #3GM-25925-00
. SCREW, BLEED (Ref #14)
14
Part #1J3-25824-00
. CAP (Ref #15)
15
Part #306-25825-01
CALIPER ASSY (RIGHT) (Ref #16)
16
Part #2DR-2580U-00
. SCREW, BLEED (Ref #25)
25
Part #5VS-25824-00
. RUBBER, BUSHING (Ref #27)
27
Part #5VS-25975-00
Bolt, Flange (Ref #28)
28
Part #90105-10440
Bolt, Flange (Ref #28)
28
Part #90105-10440
Bolt, Flange (Ref #28)
28
Part #90105-10440
Bolt, Flange (Ref #28)
28
Part #90105-10440
HOUSING, SENSOR FRONT (Ref #29)
29
Part #2DR-2517A-00
PROTECTOR (Ref #30)
30
Part #2DR-27491-00
COLLAR (Ref #31)
31
Part #90387-06372
Bolt,hex. Socket Button (Ref #32)
32
Part #90111-06127
