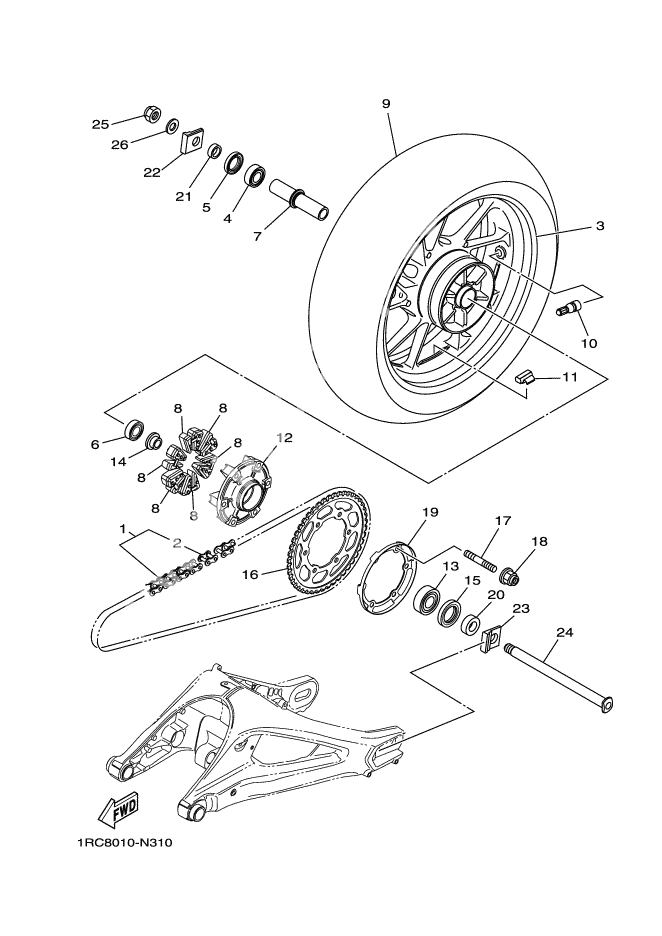

REAR WHEEL
REAR WHEEL
チエーン (DID 525V10-110LL) (Ref #1)
1
Part #94582-31110
. ジヨイント,チエーン (DID 525V10-ZJ) (Ref #2)
2
Part #94682-31031
Диск заднего колеса (LGB/RW) (Ref #3)
3
Part #2DR-25338-00-0X
Диск заднего колеса (LGB/RW) (Ref #3)
3
Part #2DR-25338-00-0X
Диск заднего колеса (LGB/RW) (Ref #3)
3
Part #2DR-25338-00-0X
Диск заднего колеса (LGB/RW) (Ref #3)
3
Part #2DR-25338-00-0X
BEARING (Ref #4)
4
Part #93306-20480
Oil Seal (Ref #5)
5
Part #93102-28022
Bearing (Ref #6)
6
Part #93306-00416
Spacer, Bearing (Ref #7)
7
Part #2PP-25317-00
. ワイヤ (L1300) (Ref #9)
9
Part #*
. ワイヤ (L1300) (Ref #9)
9
Part #*
. ワイヤ (L1300) (Ref #9)
9
Part #*
. ワイヤ (L1300) (Ref #9)
9
Part #*
VALVE, RIM (TR412) (Ref #10)
10
Part #93900-00030
バランサ,ホイール (30G) (Ref #11)
11
Part #5MT-25398-20
バランサ,ホイール (30G) (Ref #11)
11
Part #5MT-25398-20
バランサ,ホイール (30G) (Ref #11)
11
Part #5MT-25398-20
バランサ,ホイール (30G) (Ref #11)
11
Part #5MT-25398-20
バランサ,ホイール (20G) (Ref #11)
11
Part #5MT-25398-10
バランサ,ホイール (20G) (Ref #11)
11
Part #5MT-25398-10
バランサ,ホイール (20G) (Ref #11)
11
Part #5MT-25398-10
バランサ,ホイール (20G) (Ref #11)
11
Part #5MT-25398-10
バランサ,ホイール (10G) (Ref #11)
11
Part #5MT-25398-00
バランサ,ホイール (10G) (Ref #11)
11
Part #5MT-25398-00
バランサ,ホイール (10G) (Ref #11)
11
Part #5MT-25398-00
バランサ,ホイール (10G) (Ref #11)
11
Part #5MT-25398-00
Clutch, Hub (Ref #12)
12
Part #5JJ-25366-00
Bearing (Ref #13)
13
Part #93306-205B5
Collar, Wheel (Ref #14)
14
Part #1RC-25383-00
Oil seal (Ref #15)
15
Part #93106-40013
SPROCKET, DRIVEN (45T) (Ref #16)
16
Part #1RC-25445-00
Bolt, Stud (Ref #17)
17
Part #90116-10048
NUT, S/L FLANGE (Ref #18)
18
Part #95602-10200
BRACKET 1 (Ref #19)
19
Part #1RC-2537W-00
Collar (Ref #20)
20
Part #90387-20036
Collar (Ref #21)
21
Part #90387-20035
Puller, Chain 1 (Ref #22)
22
Part #3SP-25388-00
PULLER, CHAIN 2 (Ref #23)
23
Part #4NX-25389-00
AXLE, WHEEL (Ref #24)
24
Part #1RC-25381-00
Nut, Self-Locking (Ref #25)
25
Part #90185-18009
Washer, Plate (Ref #26)
26
Part #90201-18021
