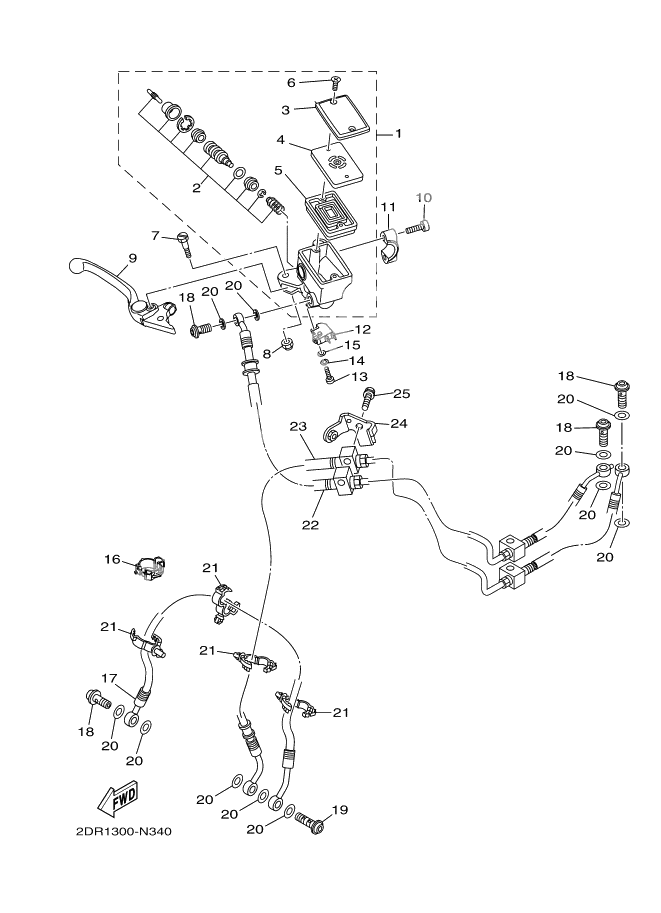

FRONT MASTER CYLINDER
FRONT MASTER CYLINDER
MASTER CYLINDER SUB ASSY 2 (Ref #1)
1
Part #2DR-2580A-00
. CYLINDER KIT, MASTER (Ref #2)
2
Part #1MC-25807-00
. CAP, RESERVOIR (Ref #3)
3
Part #5VS-25852-00
. BUSH,DIAPHRAGM (Ref #4)
4
Part #5VS-25855-00
. DIAPHRAGM, RESERVOIR (Ref #5)
5
Part #20S-25854-00
. SCREW (Ref #6)
6
Part #5VS-2589H-00
Bolt, Lever (Ref #7)
7
Part #5VS-2589F-00
Nut, U (Ref #8)
8
Part #95617-06100
LEVER 2 (Ref #9)
9
Part #5VS-83922-00
BOLT (Ref #10)
10
Part #5VS-26332-00
BRACKET, MASTER CYLINDER (Ref #11)
11
Part #5VS-25867-00
FRONT STOP SWITCH ASSY (Ref #12)
12
Part #1HP-83980-01
. SCREW, PAN HEAD (Ref #13)
13
Part #98502-04012
. WASHER, SPRING (Ref #14)
14
Part #92902-04100
. WASHER, PLATE (Ref #15)
15
Part #92902-04600
CLAMP (Ref #16)
16
Part #90464-12013
HOSE, BRAKE 1 (Ref #17)
17
Part #2DR-25872-00
Bolt, Union (Ref #19)
19
Part #90401-10042
BRAKE HOSE ASSY (Ref #22)
22
Part #2DR-2584A-00
HOSE, BRAKE (Ref #23)
23
Part #2DR-2584B-00
BRACKET, REFLECTOR 1 (Ref #24)
24
Part #2DR-85132-00
Bolt, Flange (Ref #25)
25
Part #90105-06192
