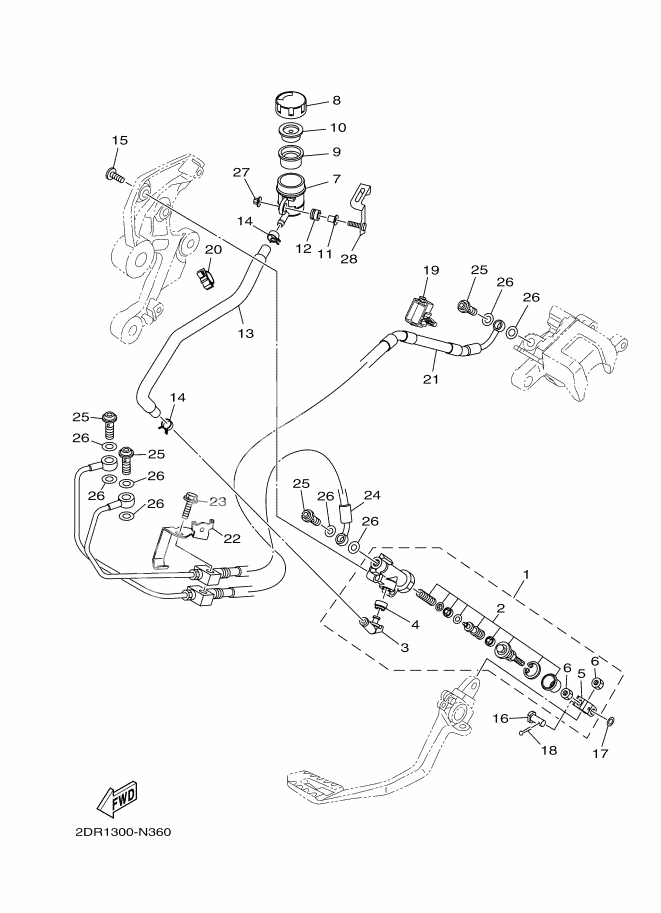

REAR MASTER CYLINDER
REAR MASTER CYLINDER
RR. MASTER CYLINDER ASSY. (Ref #1)
1
Part #56P-2583V-00
. CYLINDER KIT, MASTER (Ref #2)
2
Part #56P-25808-50
. JOINT (Ref #3)
3
Part #2D1-2582A-00
. O-RING (Ref #4)
4
Part #4BP-2585F-01
. JOINT (Ref #5)
5
Part #4BP-27222-02
NUT (Ref #6)
6
Part #90170-08010
NUT (Ref #6)
6
Part #90170-08010
NUT (Ref #6)
6
Part #90170-08010
NUT (Ref #6)
6
Part #90170-08010
Tank, reservoir (Ref #7)
7
Part #14B-25894-00
Cap, Reservoir (Ref #8)
8
Part #2C0-25852-00
Diaphragm, Reservoir (Ref #9)
9
Part #2VN-25854-00
Bush,diaphragm (Ref #10)
10
Part #2VN-25855-00
Collar (Ref #11)
11
Part #90387-05028
Grommet (Ref #12)
12
Part #2C0-26326-00
HOSE, RESERVOIR (Ref #13)
13
Part #1RC-25895-00
CLIP (Ref #14)
14
Part #90467-120A3
CLIP (Ref #14)
14
Part #90467-120A3
CLIP (Ref #14)
14
Part #90467-120A3
CLIP (Ref #14)
14
Part #90467-120A3
BOLT (Ref #15)
15
Part #90111-08038
Pin, Clevis (Ref #16)
16
Part #90240-08005
Washer, Plate (Ref #17)
17
Part #90201-08066
Pin, Cotter (Ref #18)
18
Part #91401-20012
CLAMP (Ref #19)
19
Part #90464-20023
CLAMP (Ref #20)
20
Part #90464-18007
HOSE, BRAKE 5 (Ref #21)
21
Part #2DR-2581K-00
BRACKET, REFLECTOR 2 (Ref #22)
22
Part #2DR-85142-00
Bolt, Flange (Ref #23)
23
Part #90105-06192
HOSE, BRAKE 4 (Ref #24)
24
Part #2DR-2581J-00
Nut, flange (Ref #27)
27
Part #95707-05500
ホルダ,リザーブタンク (Ref #28)
28
Part #1RC-2582E-00
