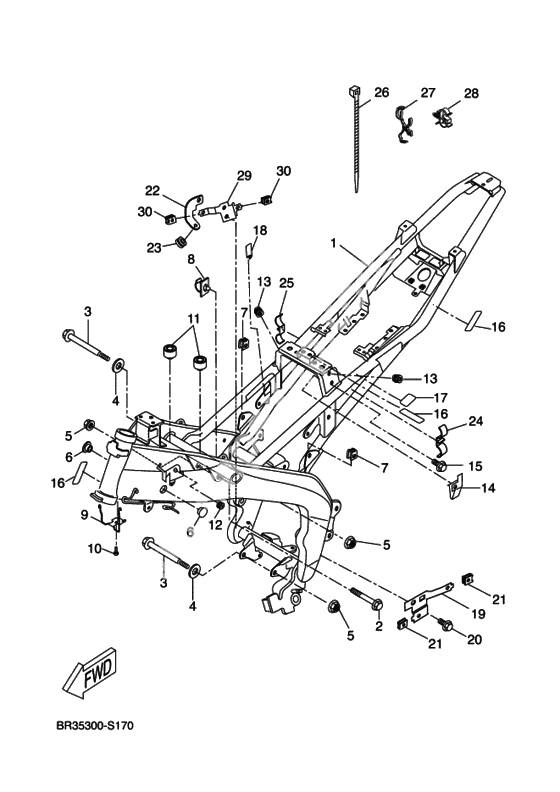

Рама
Рама
FRAME COMP (Ref #1)
1
Part #5D7-F1110-20-00
Болт (Ref #2)
2
Part #90105-10323-00
Болт (Ref #3)
3
Part #901-0110X-12-00
Болт (Ref #3)
3
Part #901-0110X-12-00
Болт (Ref #3)
3
Part #901-0110X-12-00
Болт (Ref #3)
3
Part #901-0110X-12-00
Washer, Plate (Ref #4)
4
Part #90201-10X12-00
Washer, Plate (Ref #4)
4
Part #90201-10X12-00
Washer, Plate (Ref #4)
4
Part #90201-10X12-00
Washer, Plate (Ref #4)
4
Part #90201-10X12-00
Plug (2Gh) (Ref #6)
6
Part #90338-15202-00
Plug (2Gh) (Ref #6)
6
Part #90338-15202-00
Plug (2Gh) (Ref #6)
6
Part #90338-15202-00
Plug (2Gh) (Ref #6)
6
Part #90338-15202-00
Nut, Spring (Ref #7)
7
Part #90183-06X00-00
Nut, Spring (Ref #7)
7
Part #90183-06X00-00
Nut, Spring (Ref #7)
7
Part #90183-06X00-00
Nut, Spring (Ref #7)
7
Part #90183-06X00-00
Clamp (Ref #8)
8
Part #3C1-F1338-00-00
Holder, Clutch Cable (Ref #9)
9
Part #5D7-F1162-00-00
BOLT (Ref #10)
10
Part #95817-06016-00
Стопор, главная подставка (Ref #11)
11
Part #2JW-F7114-00-00
GROMMET (Ref #12)
12
Part #90480-13567-00
Nut, flange (Ref #13)
13
Part #90179-06520-00
Nut, flange (Ref #13)
13
Part #90179-06520-00
Nut, flange (Ref #13)
13
Part #90179-06520-00
Nut, flange (Ref #13)
13
Part #90179-06520-00
Stay, Relay (Ref #14)
14
Part #5D7-F117J-00-00
Болт (Ref #15)
15
Part #90105-05014-00
LABEL (Ref #17)
17
Part #22B-F6137-00-00
Mole (Ref #18)
18
Part #5D7-F2869-00-00
Bracket, Pouch (Ref #19)
19
Part #5D7-F8283-10-00
BOLT (Ref #20)
20
Part #95817-06012-00
Nut, Spring (Ref #21)
21
Part #90183-05X04-00
Nut, Spring (Ref #21)
21
Part #90183-05X04-00
Nut, Spring (Ref #21)
21
Part #90183-05X04-00
Nut, Spring (Ref #21)
21
Part #90183-05X04-00
Bracket 6 (Ref #22)
22
Part #5D7-F836J-00-00
Grommet (Ref #23)
23
Part #90480-11X02-00
Holder, Brake Hose 5 (Ref #24)
24
Part #5D7-F588F-00-00
Holder, Brake Hose 6 (Ref #25)
25
Part #5D7-F588G-00-00
Хомут (Ref #26)
26
Part #90464-10233-00
Скоба (Ref #27)
27
Part #90464-20008-00
Clamp (Ref #28)
28
Part #90464-06X00-00
Bracket, under (Ref #29)
29
Part #5D7-F8284-10-00
