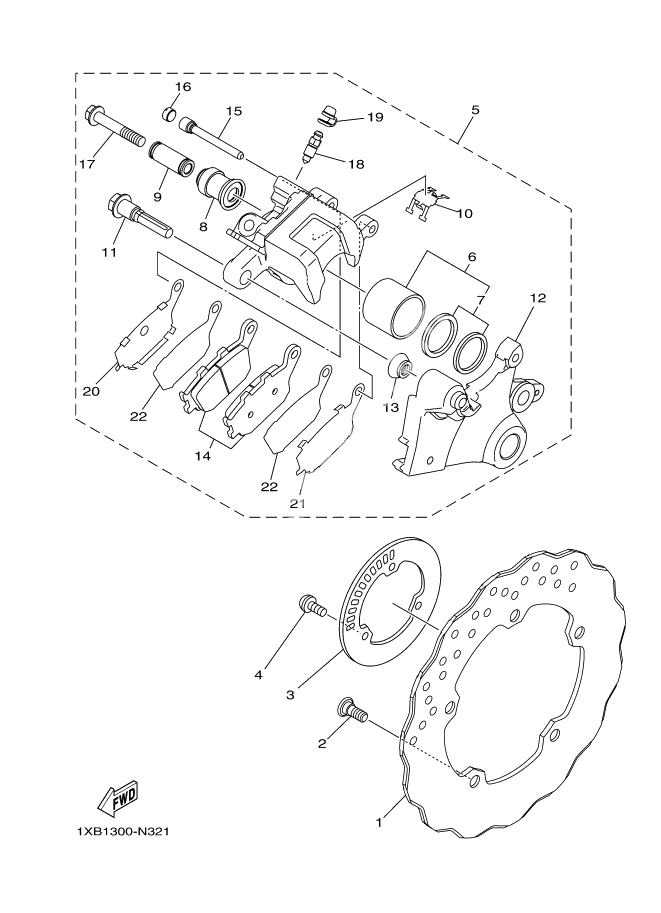

Rear brake caliper
Rear brake caliper
Disk, Rear Brake 2 (Ref #1)
1
Part #1WS-2582W-01
Bolt (Ref #2)
2
Part #90109-08045
Rotor, Sensor (Ref #3)
3
Part #2DR-2517G-00
Screw (Ref #4)
4
Part #90149-05029
Caliper Assy, Rear 2 (Ref #5)
5
Part #2DR-2580W-00
. PISTON ASSY, CALIPER (Ref #6)
6
Part #5SL-25802-00
. . CALIPER SEAL KIT (Ref #7)
7
Part #5SL-25803-00
. BOOT, CALIPER (Ref #8)
8
Part #5SL-25917-00
. SLEEVE, CALIPER (Ref #9)
9
Part #5SL-25838-00
. SUPPORT, PAD (Ref #10)
10
Part #5SL-25919-00
. PIN, SLIDE (Ref #11)
11
Part #5SL-25914-00
. BRACKET, SUPPORT (Ref #12)
12
Part #2DR-25921-50
. BOOT, CALIPER (Ref #13)
13
Part #3JD-25917-00
. BRAKE PAD KIT 2 (Ref #14)
14
Part #5VX-25806-00
. PIN, PAD (Ref #15)
15
Part #8CR-25924-00
. PLUG (Ref #16)
16
Part #5DH-25916-00
. BOLT (Ref #17)
17
Part #1RC-25926-00
. SCREW, BLEED (Ref #18)
18
Part #8CR-25824-00
. CAP (Ref #19)
19
Part #1UY-25825-51
. SHIM, CALIPER (Ref #20)
20
Part #5SL-25827-00
. SHIM, CALIPER (Ref #21)
21
Part #5SL-25827-10
. SHIM, CALIPER (Ref #22)
22
Part #5SL-25828-01
. SHIM, CALIPER (Ref #22)
22
Part #5SL-25828-01
. SHIM, CALIPER (Ref #22)
22
Part #5SL-25828-01
. SHIM, CALIPER (Ref #22)
22
Part #5SL-25828-01
