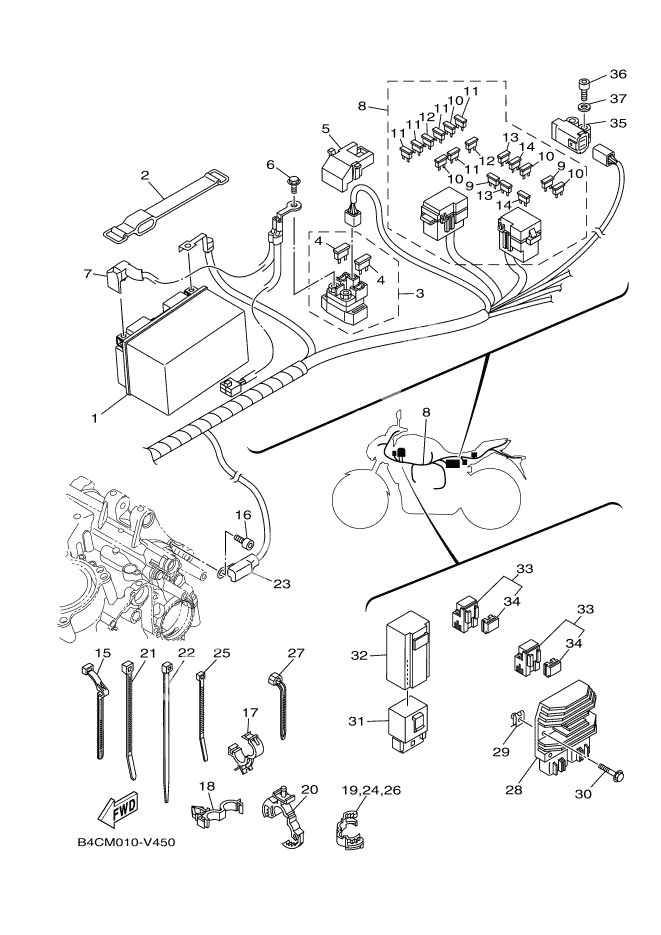

Electrical 1
Electrical 1
Battery Assy (Yuasa Ytz10S) (Ref #1)
1
Part #90793-26114
Band, Battery (Ref #2)
2
Part #1WS-82131-00
Starter Relay Assy (Rc19-089B) (Ref #3)
3
Part #1XC-81940-00
. FUSE (30A-BL) (Ref #4)
4
Part #1AE-82151-00
. FUSE (30A-BL) (Ref #4)
4
Part #1AE-82151-00
. FUSE (30A-BL) (Ref #4)
4
Part #1AE-82151-00
. FUSE (30A-BL) (Ref #4)
4
Part #1AE-82151-00
Cover, Lead Wire (Ref #5)
5
Part #5SL-82119-10
Bolt, Flange (Ref #6)
6
Part #95022-06008
Wire, Plus Lead (Ref #7)
7
Part #1XB-82115-01
Wire Harness Assy (Ref #8)
8
Part #B4C-82590-30
Wire Harness Assy (Ref #8)
8
Part #B4C-82590-30
Wire Harness Assy (Ref #8)
8
Part #B4C-82590-30
Wire Harness Assy (Ref #8)
8
Part #B4C-82590-30
. FUSE (2A-BL) (Ref #9)
9
Part #5JJ-82151-80
. FUSE (2A-BL) (Ref #9)
9
Part #5JJ-82151-80
. FUSE (2A-BL) (Ref #9)
9
Part #5JJ-82151-80
. FUSE (2A-BL) (Ref #9)
9
Part #5JJ-82151-80
. FUSE (15A-BL) (Ref #12)
12
Part #5JJ-82151-10
. FUSE (15A-BL) (Ref #12)
12
Part #5JJ-82151-10
. FUSE (15A-BL) (Ref #12)
12
Part #5JJ-82151-10
. FUSE (15A-BL) (Ref #12)
12
Part #5JJ-82151-10
. FUSE (20A-BL) (Ref #13)
13
Part #5JJ-82151-20
. FUSE (20A-BL) (Ref #13)
13
Part #5JJ-82151-20
. FUSE (20A-BL) (Ref #13)
13
Part #5JJ-82151-20
. FUSE (20A-BL) (Ref #13)
13
Part #5JJ-82151-20
. FUSE (30A-BL) (Ref #14)
14
Part #5JJ-82151-60
. FUSE (30A-BL) (Ref #14)
14
Part #5JJ-82151-60
. FUSE (30A-BL) (Ref #14)
14
Part #5JJ-82151-60
. FUSE (30A-BL) (Ref #14)
14
Part #5JJ-82151-60
CLAMP (Ref #15)
15
Part #90464-07M40
Bolt (Ref #16)
16
Part #91380-06012
CLAMP (Ref #17)
17
Part #90464-20191
CLAMP (Ref #18)
18
Part #90464-18007
Clamp (Ref #19)
19
Part #90464-14010
CLAMP (Ref #20)
20
Part #90464-18011
BAND (Ref #21)
21
Part #1UA-82591-00
Clamp (Ref #22)
22
Part #90464-65001
Cover, terminal (Ref #23)
23
Part #1WS-81916-00
CLAMP (Ref #25)
25
Part #90464-36005
CLAMP (Ref #27)
27
Part #90464-25004
Rectifier & Regulator Assy (Ref #28)
28
Part #1D7-81960-10
Nut, Spring (Ref #29)
29
Part #90183-060A6
Bolt, Flange (Ref #30)
30
Part #95022-06025
Relay Assy (G8R-30Y-V5) (Ref #31)
31
Part #5VK-81950-51
Cover 1 (Ref #32)
32
Part #1WS-8246B-00
RELAY ASSY (1TP-00) (Ref #33)
33
Part #1TP-81950-00
RELAY ASSY (1TP-00) (Ref #33)
33
Part #1TP-81950-00
RELAY ASSY (1TP-00) (Ref #33)
33
Part #1TP-81950-00
RELAY ASSY (1TP-00) (Ref #33)
33
Part #1TP-81950-00
. HOLDER, RELAY (Ref #34)
34
Part #5EA-81952-00
. HOLDER, RELAY (Ref #34)
34
Part #5EA-81952-00
. HOLDER, RELAY (Ref #34)
34
Part #5EA-81952-00
. HOLDER, RELAY (Ref #34)
34
Part #5EA-81952-00
SENSOR, LEAN ANGLE (Ref #35)
35
Part #5PS-82576-01
Bolt, Hexagon Socket Head (Ref #36)
36
Part #91312-04025
WASHER, PLATE (Ref #37)
37
Part #90201-04030
