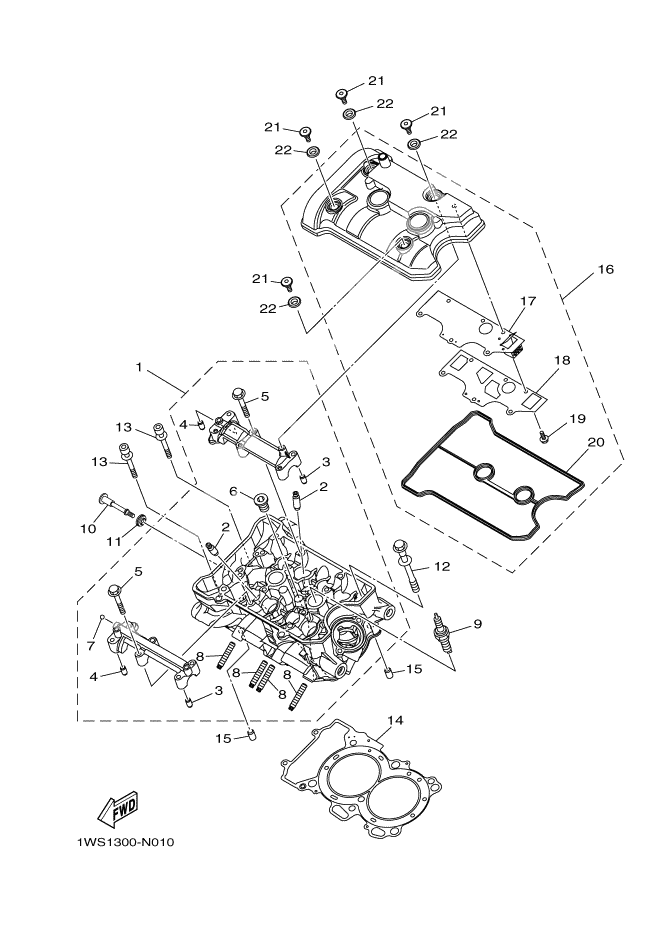

CYLINDER HEAD
CYLINDER HEAD
Cylinder head assy (Ref #1)
1
Part #1WS-11101-09
. GUIDE, VALVE 1 (Ref #2)
2
Part #4D9-11133-10
. GUIDE, VALVE 1 (Ref #2)
2
Part #4D9-11133-10
. GUIDE, VALVE 1 (Ref #2)
2
Part #4D9-11133-10
. GUIDE, VALVE 1 (Ref #2)
2
Part #4D9-11133-10
. PIN, DOWEL (Ref #3)
3
Part #91808-16023
. PIN, DOWEL (Ref #3)
3
Part #91808-16023
. PIN, DOWEL (Ref #3)
3
Part #91808-16023
. PIN, DOWEL (Ref #3)
3
Part #91808-16023
. BOLT, FLANGE (Ref #5)
5
Part #90105-06027
. BOLT, FLANGE (Ref #5)
5
Part #90105-06027
. BOLT, FLANGE (Ref #5)
5
Part #90105-06027
. BOLT, FLANGE (Ref #5)
5
Part #90105-06027
. PLUG, STRAIGHT SCREW (Ref #6)
6
Part #90340-18002
BALL (Ref #7)
7
Part #93501-04011
Plug, Spark (Ngk Lmar8A-9) (Ref #9)
9
Part #94703-00436
Bolt (Ref #10)
10
Part #90109-06293
RUBBER, MOUNT 1 (Ref #11)
11
Part #5VY-1111G-00
Bolt, With Washer (Ref #12)
12
Part #90119-10056
Bolt, Hexagon Socket Head (Ref #13)
13
Part #90110-06081
Bolt, Hexagon Socket Head (Ref #13)
13
Part #90110-06081
Bolt, Hexagon Socket Head (Ref #13)
13
Part #90110-06081
Bolt, Hexagon Socket Head (Ref #13)
13
Part #90110-06081
Gasket, Cylinder Head 1 (Ref #14)
14
Part #1WS-11181-00
Pin, Dowel (Ref #15)
15
Part #99530-10114
Pin, Dowel (Ref #15)
15
Part #99530-10114
Pin, Dowel (Ref #15)
15
Part #99530-10114
Pin, Dowel (Ref #15)
15
Part #99530-10114
Cover, Cylinder Head 1 (Ref #16)
16
Part #1WS-11190-01
. PLATE, BREATHER (Ref #17)
17
Part #1WS-11165-01
. GASKET, BREATHER COVER (Ref #18)
18
Part #1WS-11169-00
Bolt, Flange (Ref #19)
19
Part #90105-05024
. GASKET, HEAD COVER 1 (Ref #20)
20
Part #1WS-11193-01
