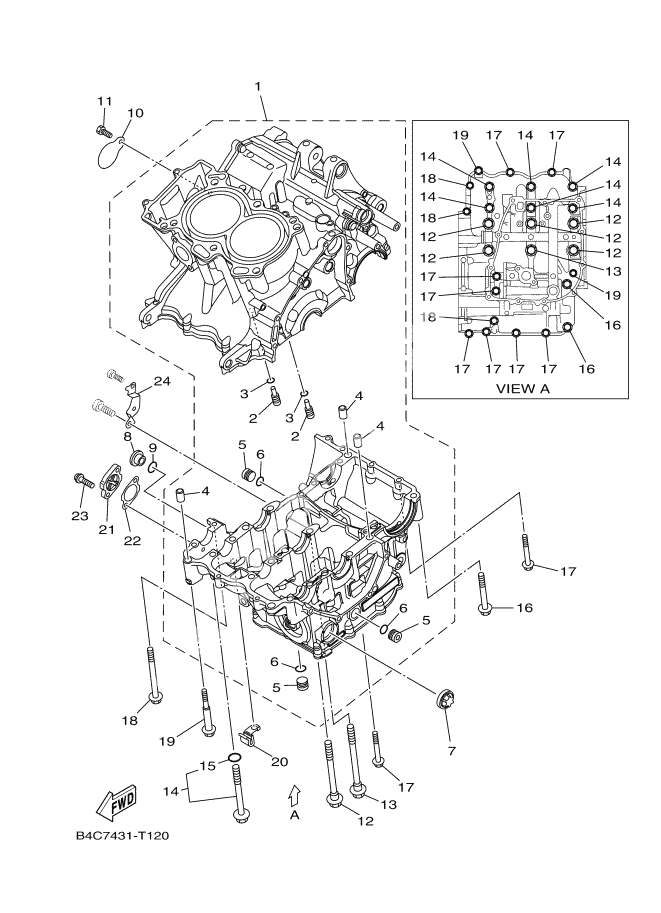

CRANK CASE
CRANK CASE
CRANKCASE ASSY (Ref #1)
1
Part #1WS-15100-08
. NOZZLE 3 (Ref #2)
2
Part #5EB-15155-00
. NOZZLE 3 (Ref #2)
2
Part #5EB-15155-00
. NOZZLE 3 (Ref #2)
2
Part #5EB-15155-00
. NOZZLE 3 (Ref #2)
2
Part #5EB-15155-00
O-RING (Ref #3)
3
Part #93210-04092
O-RING (Ref #3)
3
Part #93210-04092
O-RING (Ref #3)
3
Part #93210-04092
O-RING (Ref #3)
3
Part #93210-04092
GAUGE, LEVEL (Ref #7)
7
Part #2H7-15361-00
. PLUG (Ref #8)
8
Part #36Y-15189-00
O-RING (Ref #9)
9
Part #93210-16325
Plug (Ref #10)
10
Part #1WS-15189-00
Bolt (Ref #11)
11
Part #90101-06043
Bolt, With Washer (Ref #13)
13
Part #90119-09018
Bolt, With Washer (Ref #13)
13
Part #90119-09018
Bolt, With Washer (Ref #13)
13
Part #90119-09018
Bolt, With Washer (Ref #13)
13
Part #90119-09018
. O-RING (Ref #15)
15
Part #93210-07540
CLAMP (Ref #20)
20
Part #90462-10064
Cover, oil pump (Ref #21)
21
Part #1WS-15416-00
GASKET, OIL PUMP COVER 1 (Ref #22)
22
Part #1WS-15456-00
Bolt, Hexagon Socket Head (Ref #23)
23
Part #90110-06395
Holder (Ref #24)
24
Part #1WS-15128-00
