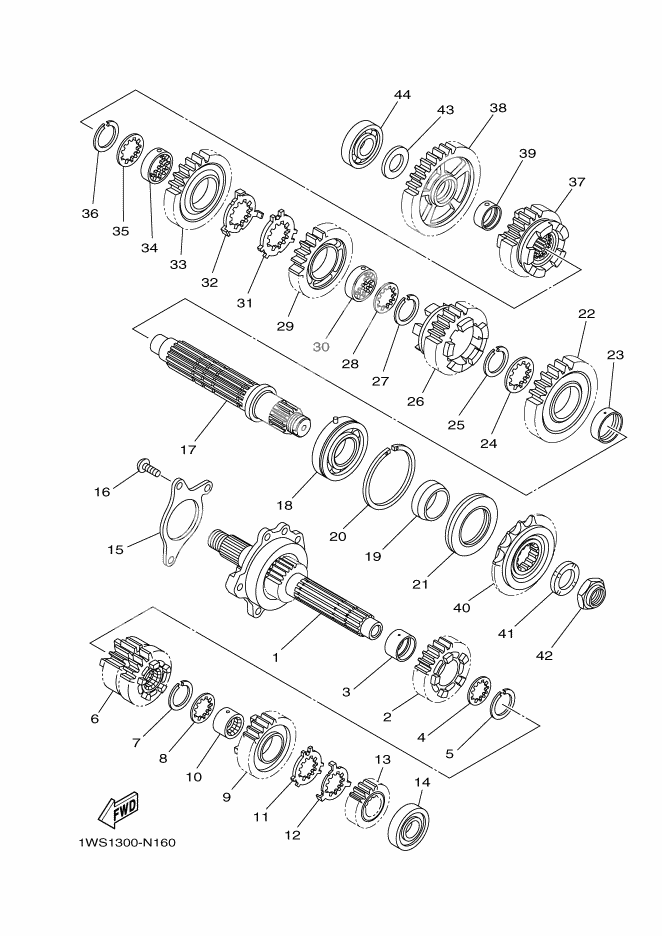

Трансмиссия
Трансмиссия
Main Axle Assy (Ref #1)
1
Part #1WS-17401-00
Gear, 5Th Pinion (22T) (Ref #2)
2
Part #1WS-17151-00
Collar (Ref #3)
3
Part #90387-250R3
Washer (Ref #4)
4
Part #90209-21332
Circlip (Ref #5)
5
Part #93440-25186
Gear, 3Rd Pinion (20T/19T) (Ref #6)
6
Part #1WS-17131-00
GEAR, 6TH PINION (28T) (Ref #9)
9
Part #1WS-17161-00
Collar (Ref #10)
10
Part #90387-21003
Washer (Ref #11)
11
Part #90209-22352
Washer (Ref #12)
12
Part #90209-21351
Gear, 2Nd Pinion (16T) (Ref #13)
13
Part #1WS-17121-00
Bearing (Ref #14)
14
Part #93306-20464
Plate (Ref #15)
15
Part #1WS-17446-00
Screw (Ref #16)
16
Part #90149-06189
Axle, Drive (Ref #17)
17
Part #1WS-17421-00
Bearing (Ref #18)
18
Part #93306-20663
Collar (Ref #19)
19
Part #90387-30012
Circlip (Ref #20)
20
Part #93440-64199
Oil Seal (Ref #21)
21
Part #93102-40030
Gear, 2Nd Wheel (34T) (Ref #22)
22
Part #1WS-17221-00
COLLAR (Ref #23)
23
Part #90387-31003
WASHER (Ref #24)
24
Part #90209-28008
CIRCLIP (Ref #25)
25
Part #93440-31187
GEAR, 6TH WHEEL (27T) (Ref #26)
26
Part #1WS-17261-00
Gear, 4Th Wheel (26T) (Ref #29)
29
Part #1WS-17241-00
COLLAR (Ref #30)
30
Part #90387-28004
Washer, Claw (Ref #31)
31
Part #90214-29002
Washer, Claw (Ref #32)
32
Part #90214-28002
Gear, 3Rd Wheel (31T) (Ref #33)
33
Part #1WS-17231-00
GEAR, 5TH WHEEL (24T) (Ref #37)
37
Part #1WS-17251-00
Gear, 1St Wheel (37T) (Ref #38)
38
Part #1WS-17211-00
COLLAR (Ref #39)
39
Part #90387-25008
Sprocket, Drive (16T) (Ref #40)
40
Part #1WS-17460-00
Washer, Conical Spring (Ref #41)
41
Part #90208-22002
NUT (Ref #42)
42
Part #90179-22018
Washer, Plate (Ref #43)
43
Part #90201-20008
