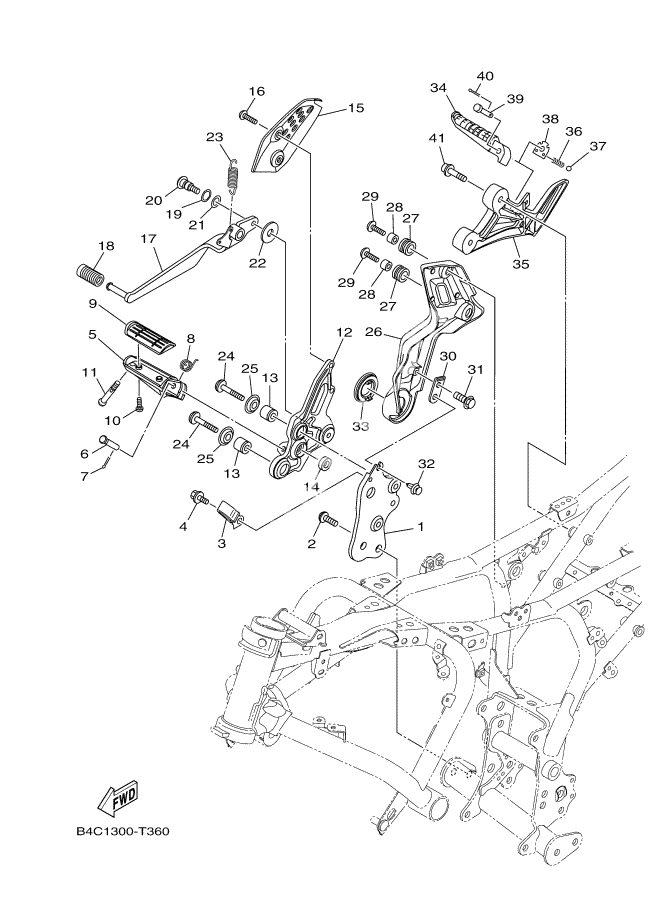

STAND FOOTREST
STAND FOOTREST
Bracket, Adapter 1 (Ref #1)
1
Part #B34-274A3-00
Bolt,hex. Socket Button (Ref #2)
2
Part #90111-10060
STAND, SIDE (Ref #3)
3
Part #1WS-27311-00
Bolt, Hexagon (Ref #4)
4
Part #90101-10025
Washer, Plate (Ref #5)
5
Part #90201-17018
Washer, Plate (Ref #5)
5
Part #90201-17018
Washer, Plate (Ref #5)
5
Part #90201-17018
Washer, Plate (Ref #5)
5
Part #90201-17018
COLLAR (Ref #6)
6
Part #90387-10050
WASHER, PLATE (Ref #7)
7
Part #90201-10035
Nut, Self-Locking (Ref #8)
8
Part #90185-10023
Spring, Tension (Ref #9)
9
Part #90506-23018
Guide, Side Stand (Ref #10)
10
Part #5VX-27351-00
Link, Side Stand (Ref #11)
11
Part #5VX-27315-00
Switch, side stand (Ref #12)
12
Part #1WS-82566-00
Holder (Ref #13)
13
Part #1WS-2419A-00
Bolt, Hexagon Socket Head (Ref #14)
14
Part #90110-05071
Nut, Self-Locking (Ref #15)
15
Part #95602-05200
Bracket, Side Stand (Ref #16)
16
Part #1WS-27321-00
Bolt,hex. Socket Button (Ref #17)
17
Part #90111-10058
FOOTREST 3 (Ref #18)
18
Part #1WS-27451-00
PIN (Ref #19)
19
Part #91701-08040
. PIN, COTTER (Ref #20)
20
Part #91402-25015
Spring, Torsion (Ref #21)
21
Part #90508-18056
Cover, Footrest (Ref #22)
22
Part #3YX-27413-00
Screw, Pan Head (Ref #23)
23
Part #90157-05025
Bolt (Ref #24)
24
Part #90109-086F8
Bracket 2 (Ref #25)
25
Part #1WS-27442-10
Damper, Footrest (Ref #26)
26
Part #36Y-27414-00
Damper, Footrest (Ref #26)
26
Part #36Y-27414-00
Damper, Footrest (Ref #26)
26
Part #36Y-27414-00
Damper, Footrest (Ref #26)
26
Part #36Y-27414-00
Stopper, Main Stand (Ref #27)
27
Part #5VX-27114-00
JOINT, ROD 1 (Ref #28)
28
Part #5VX-18116-00
COVER, DUST (Ref #29)
29
Part #5VX-18154-00
Plate 1 (Ref #30)
30
Part #1WS-27445-10
Bolt, Button Head (Ref #31)
31
Part #92014-06012
Shift Pedal Assy (Ref #32)
32
Part #B34-18110-00
. COVER, SHIFT PEDAL (Ref #33)
33
Part #1WS-18113-00
WASHER, PLATE (Ref #34)
34
Part #90201-12051
Washer, Wave (Ref #35)
35
Part #90206-12074
Bolt (Ref #36)
36
Part #4BP-27434-01
Washer, Plate (Ref #37)
37
Part #90201-08053
Rod, Shift (Ref #38)
38
Part #B4C-18115-00
NUT (Ref #39)
39
Part #90170-06026
NUT (Ref #40)
40
Part #95314-06700
Bolt, Hexagon Socket Head (Ref #41)
41
Part #90110-08071
Bolt, Hexagon Socket Head (Ref #41)
41
Part #90110-08071
Bolt, Hexagon Socket Head (Ref #41)
41
Part #90110-08071
Bolt, Hexagon Socket Head (Ref #41)
41
Part #90110-08071
WASHER (Ref #42)
42
Part #90209-08295
WASHER (Ref #42)
42
Part #90209-08295
WASHER (Ref #42)
42
Part #90209-08295
WASHER (Ref #42)
42
Part #90209-08295
COLLAR (Ref #43)
43
Part #90387-06372
BOLT (Ref #44)
44
Part #90111-06098
COVER 1 (Ref #45)
45
Part #1WS-27453-10
GROMMET (Ref #46)
46
Part #90480-14003
GROMMET (Ref #46)
46
Part #90480-14003
GROMMET (Ref #46)
46
Part #90480-14003
GROMMET (Ref #46)
46
Part #90480-14003
Collar (Ref #47)
47
Part #90387-06057
Collar (Ref #47)
47
Part #90387-06057
Collar (Ref #47)
47
Part #90387-06057
Collar (Ref #47)
47
Part #90387-06057
SCREW (Ref #48)
48
Part #90149-06105
SCREW (Ref #48)
48
Part #90149-06105
SCREW (Ref #48)
48
Part #90149-06105
SCREW (Ref #48)
48
Part #90149-06105
BRACKET, FOOTREST 2 (Ref #49)
49
Part #1WS-27425-00
BOLT, FLANGE DEEP RECESS (Ref #50)
50
Part #95D02-06010
Rivet (Ref #51)
51
Part #90269-08008
Заглушка (Ref #52)
52
Part #1WS-27475-00-P0
FOOTREST, REAR 1 (Ref #53)
53
Part #3VR-27431-02
Bracket 4 (Ref #54)
54
Part #1WS-2741L-01
. SPRING, COMPRESSION (Ref #55)
55
Part #90501-12743
BALL (Ref #56)
56
Part #93501-04011
Washer, special (Ref #57)
57
Part #5VX-27437-00
Pin, Clevis (Ref #58)
58
Part #91702-08040
Pin, Cotter (Ref #59)
59
Part #91401-25015
Screw, With Washer (Ref #60)
60
Part #90159-08002
Bracket, Helmet Hanger (Ref #61)
61
Part #B4C-2115J-00
Hanger, Helmet (Ref #62)
62
Part #4R8-21398-01
Screw, Countersunk (Ref #63)
63
Part #90151-06075
