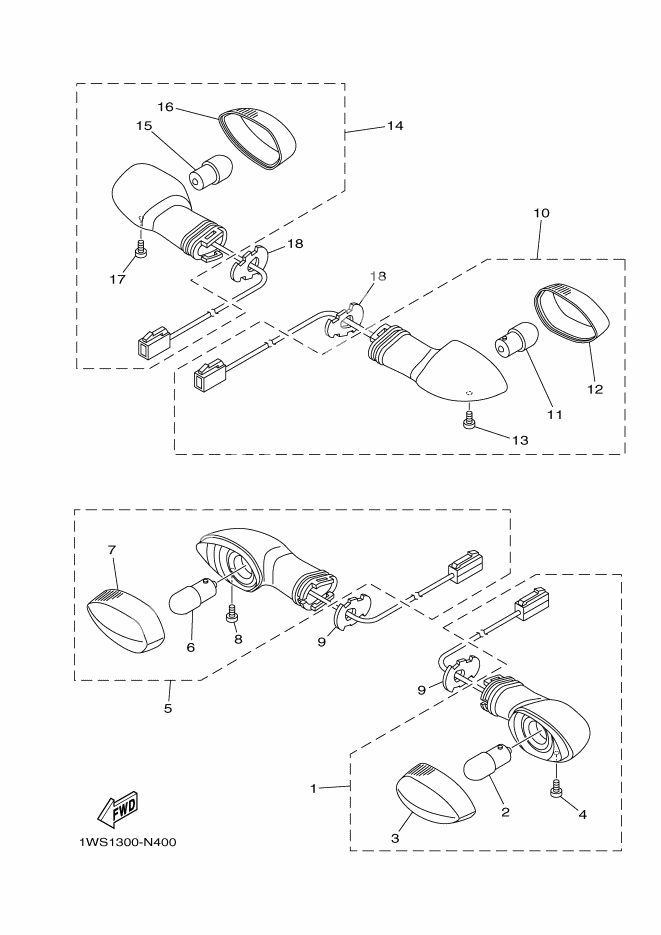

FLASHER LAMP
FLASHER LAMP
FRONT FLASHER LIGHT ASSY 1 (Ref #1)
1
Part #1WS-83310-00
. BULB, FLASHER (12V-10W) (Ref #2)
2
Part #1KB-83311-00
. LENS COMP 1 (Ref #3)
3
Part #1KB-8333A-00
. SCREW, LENS FITTING (Ref #4)
4
Part #3D9-H3333-10
FRONT FLASHER LIGHT ASSY 2 (Ref #5)
5
Part #1WS-83320-00
. LENS COMP 2 (Ref #7)
7
Part #1KB-8334A-00
STAY,FLASHER 1 (Ref #9)
9
Part #3D7-83318-10
STAY,FLASHER 1 (Ref #9)
9
Part #3D7-83318-10
STAY,FLASHER 1 (Ref #9)
9
Part #3D7-83318-10
STAY,FLASHER 1 (Ref #9)
9
Part #3D7-83318-10
REAR FLASHER LIGHT ASSY 1 (Ref #10)
10
Part #1WS-83330-00
REAR FLASHER LIGHT ASSY 2 (Ref #14)
14
Part #1WS-83340-00
