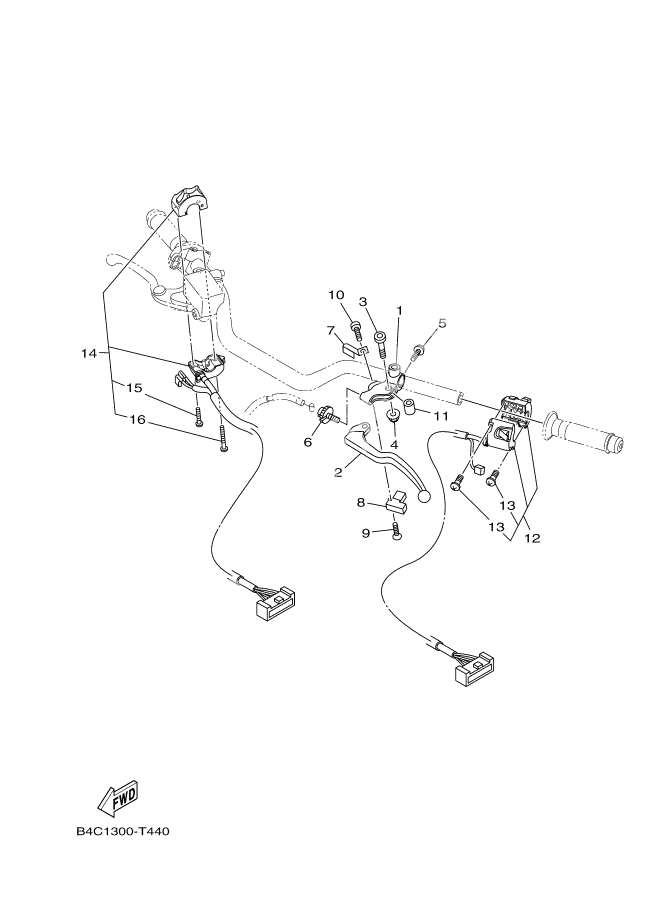

HANDLE SWITCH AND LEVER
HANDLE SWITCH AND LEVER
HOLDER, LEVER 1 (Ref #1)
1
Part #1B3-82911-00
LEVER 1 (Ref #2)
2
Part #5EB-83912-03
BOLT, LEVER (Ref #3)
3
Part #2C0-83945-00
NUT, SELF U-FLANGE (Ref #4)
4
Part #95607-06200
Bolt, Flange (Ref #5)
5
Part #95027-06020
BOLT, CABLE ADJUSTING (Ref #6)
6
Part #5LV-83951-00
PLATE, SPRING (Ref #7)
7
Part #4XV-83929-00
Switch (Ref #8)
8
Part #3YX-82917-01
Screw, Flat Head (Ref #9)
9
Part #98704-03020
Screw, Pan Head (Ref #10)
10
Part #98507-04010
COLLAR, LEVER 1 (Ref #11)
11
Part #5JJ-83913-00
SWITCH, HANDLE 4 (Ref #12)
12
Part #1WS-83972-01
. SCREW, PAN HEAD (Ref #13)
13
Part #98507-04025
. SCREW, PAN HEAD (Ref #13)
13
Part #98507-04025
. SCREW, PAN HEAD (Ref #13)
13
Part #98507-04025
. SCREW, PAN HEAD (Ref #13)
13
Part #98507-04025
SWITCH, HANDLE 2 (Ref #14)
14
Part #1WS-83975-00
. SCREW, PAN HEAD (Ref #15)
15
Part #98507-04020
. SCREW, PAN HEAD (Ref #16)
16
Part #98507-04030
