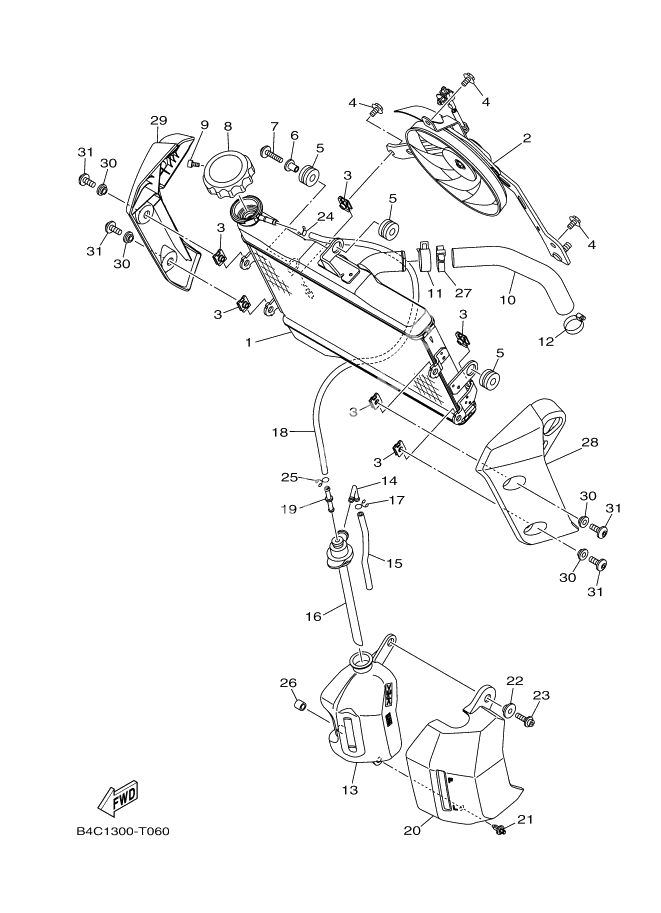

RADIATOR AND HOSE
RADIATOR AND HOSE
Radiator comp (Ref #1)
1
Part #B34-12461-00
Blower Assy (Ref #2)
2
Part #1WS-12405-00
COLLAR (Ref #6)
6
Part #90387-07391
Bolt,hex. Socket Button (Ref #7)
7
Part #90111-06156
CAP, RADIATOR (Ref #8)
8
Part #3D7-12462-00
BOLT (Ref #9)
9
Part #91317-03006
Hose 3 (Ref #10)
10
Part #1WS-12578-00
Clip (Ref #11)
11
Part #90467-290A0
Hose Clamp Assy (Ref #12)
12
Part #90450-35001
Tank, Recovery (Ref #13)
13
Part #1WS-21871-00
ELBOW (Ref #14)
14
Part #26H-21828-00
Hose (Ref #15)
15
Part #90445-08020
CAP (Ref #16)
16
Part #3P6-21875-00
CLIP (Ref #17)
17
Part #90467-08075
Pipe 1 (Ref #18)
18
Part #1WS-21816-00
JOINT (Ref #19)
19
Part #4XY-14568-00
Cover (Ref #20)
20
Part #1WS-2172W-00
RIVET (Ref #21)
21
Part #90269-06008
Collar (Ref #22)
22
Part #90387-06024
Bolt, Hexagon Socket Head (Ref #23)
23
Part #90110-06163
CLIP (Ref #25)
25
Part #90467-08003
Hose (Ref #26)
26
Part #90445-10064
CLAMP (Ref #27)
27
Part #90464-07M40
Cover, Side 3 (Ref #28)
28
Part #B4C-21731-00
Cover, Side 4 (Ref #29)
29
Part #B4C-21741-00
