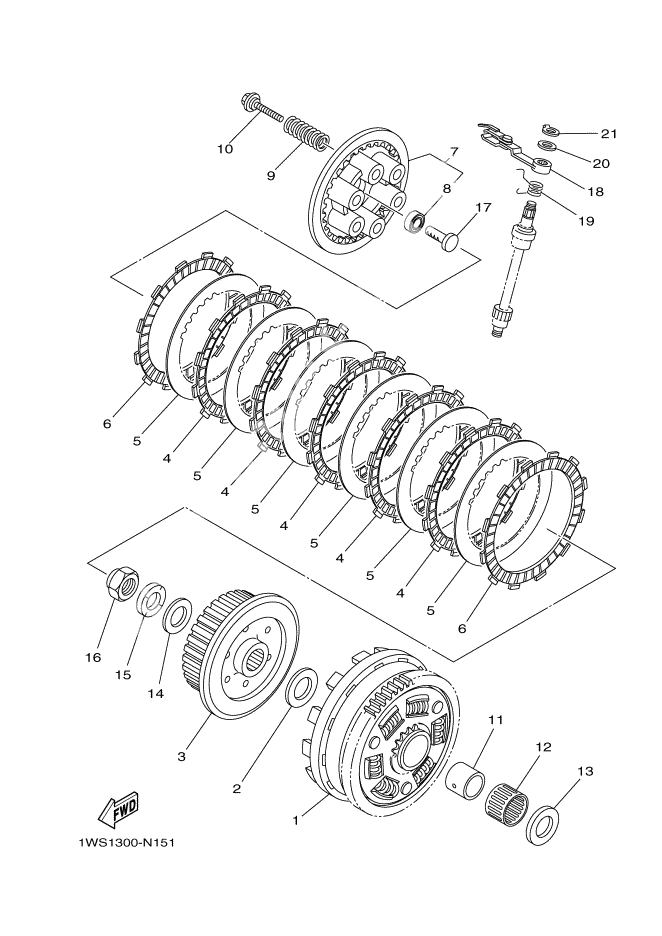

Сцепление
Сцепление
PRIMARY DRIVEN GEAR COMP. (Ref #1)
1
Part #1WS-16150-00
Plate, Thrust 1 (Ref #2)
2
Part #363-16154-00
Boss, Clutch (Ref #3)
3
Part #1WS-16371-00
Plate, Friction (Ref #6)
6
Part #5TG-16321-00
Plate, Friction (Ref #6)
6
Part #5TG-16321-00
Plate, Friction (Ref #6)
6
Part #5TG-16321-00
Plate, Friction (Ref #6)
6
Part #5TG-16321-00
Pressure Plate Assy (Ref #7)
7
Part #1WS-16350-00
. BEARING (Ref #8)
8
Part #93306-00106
Spring, Compression (Ref #9)
9
Part #90501-230E4
Bolt, With Washer (Ref #10)
10
Part #90119-06263
Spacer 1 (Ref #11)
11
Part #1WS-16181-00
BEARING (Ref #12)
12
Part #93310-232R9
Washer, Plate (Ref #14)
14
Part #90201-20030
Washer, conical spring (Ref #15)
15
Part #90208-20001
NUT (Ref #16)
16
Part #90179-20007
Rod, Push 1 (Ref #17)
17
Part #1WS-16356-00
Push Lever Assy (Ref #18)
18
Part #1WS-16340-00
Spring, Torsion (Ref #19)
19
Part #90508-18132
WASHER, PLATE (Ref #20)
20
Part #90201-10029
Circlip (Ref #21)
21
Part #99009-10400
