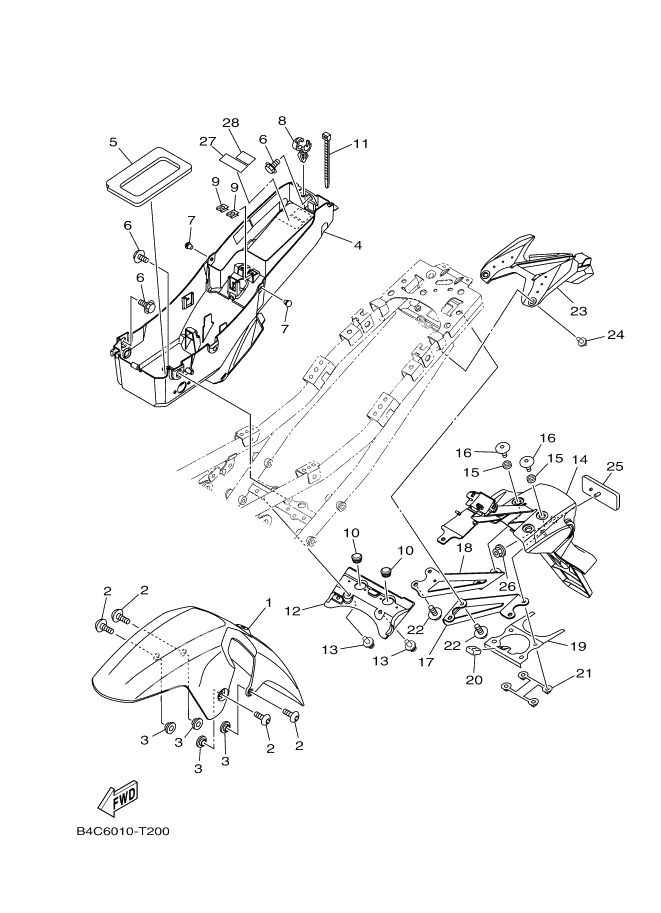

FENDER
FENDER
Fender, Front (Ref #1)
1
Part #B4C-21511-00
BOX, BATTERY 1 (Ref #4)
4
Part #1WS-8212B-00
Damper 2 (Ref #5)
5
Part #1WS-21639-00
. PLUG (Ref #7)
7
Part #90338-06018
. PLUG (Ref #7)
7
Part #90338-06018
. PLUG (Ref #7)
7
Part #90338-06018
. PLUG (Ref #7)
7
Part #90338-06018
Clamp (Ref #8)
8
Part #90464-18002
Nut, Spring (Ref #9)
9
Part #90183-04039
Nut, Spring (Ref #9)
9
Part #90183-04039
Nut, Spring (Ref #9)
9
Part #90183-04039
Nut, Spring (Ref #9)
9
Part #90183-04039
Grommet (Ref #10)
10
Part #90480-14100
Grommet (Ref #10)
10
Part #90480-14100
Grommet (Ref #10)
10
Part #90480-14100
Grommet (Ref #10)
10
Part #90480-14100
Clamp (Ref #11)
11
Part #90465-13275
Guard, Flap (Ref #12)
12
Part #1WS-21642-00
Rivet (Ref #13)
13
Part #90269-06002
Rivet (Ref #13)
13
Part #90269-06002
Rivet (Ref #13)
13
Part #90269-06002
Rivet (Ref #13)
13
Part #90269-06002
Guard, mud (Ref #14)
14
Part #1WS-21629-00
COLLAR (Ref #15)
15
Part #90387-06372
COLLAR (Ref #15)
15
Part #90387-06372
COLLAR (Ref #15)
15
Part #90387-06372
COLLAR (Ref #15)
15
Part #90387-06372
Bolt,hex. Socket Button (Ref #16)
16
Part #90111-06089
Bolt,hex. Socket Button (Ref #16)
16
Part #90111-06089
Bolt,hex. Socket Button (Ref #16)
16
Part #90111-06089
Bolt,hex. Socket Button (Ref #16)
16
Part #90111-06089
Stay 1 (Ref #17)
17
Part #1WS-2164F-00
Stay 2 (Ref #18)
18
Part #1WS-2164G-00
STAY, PLATE (Ref #19)
19
Part #1WS-21682-00
DAMPER (Ref #20)
20
Part #1WS-21746-00
BRACKET 6 (Ref #21)
21
Part #1WS-2161G-00
Bolt, Flange (Ref #22)
22
Part #90105-06205
Bolt, Flange (Ref #22)
22
Part #90105-06205
Bolt, Flange (Ref #22)
22
Part #90105-06205
Bolt, Flange (Ref #22)
22
Part #90105-06205
Cover, Rear Fender 1 (Ref #23)
23
Part #1WS-2163A-00
RIVET (Ref #24)
24
Part #90269-07008
. REAR REFLECTOR ASSY (Ref #25)
25
Part #3Y6-85130-02
Nut, Self-Locking (Ref #26)
26
Part #95602-05200
LABEL, WARNING CARRIER 1 (Ref #27)
27
Part #1B7-2816J-20
Label, Caution (Ref #28)
28
Part #1WS-24877-C0
