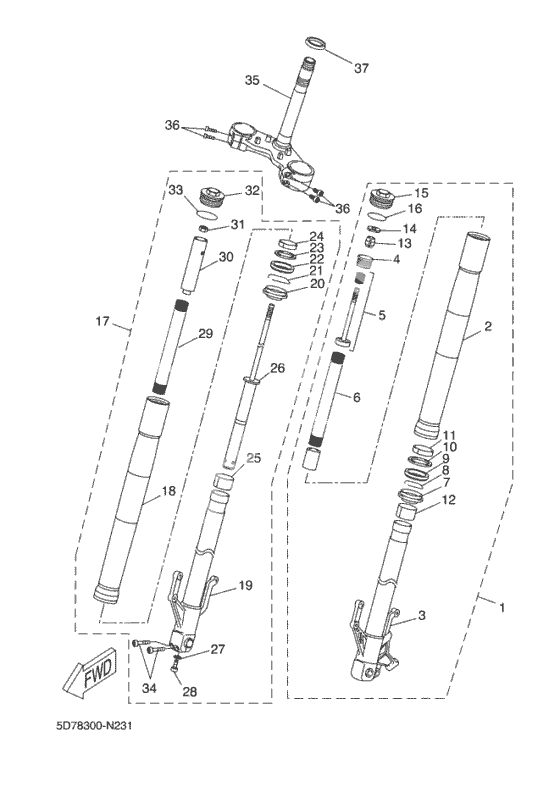

Вилка передней оси
Вилка передней оси
Front Fork Assy (L.h) (Ref #1)
1
Part #5D7-F3102-30-00
Tube, Outer 2 (Ref #2)
2
Part #5D7-F3136-30-00
Inner Tube Comp.2 (Ref #3)
3
Part #5D7-F3120-30-00
Stopper Rebound (Ref #4)
4
Part #5D7-F3355-30-00
Piston Rod Assy (Ref #5)
5
Part #5D7-F314A-30-00
Spring, Front Fork (Ref #6)
6
Part #5D7-F3141-30-00
Seal, Dust (Ref #7)
7
Part #5D7-F3144-30-00
Ring, Snap (Ref #8)
8
Part #5D7-F3153-30-00
Oil Seal (Ref #9)
9
Part #5D7-F3145-30-00
Washer, oil seal (Ref #10)
10
Part #5D7-F3146-30-00
Направляющая втулка, пера вилки 1 (Ref #11)
11
Part #5D7-F3125-30-00
Скользящая втулка, пера вилки (Ref #12)
12
Part #5D7-F3171-30-00
Damper 1 (Ref #13)
13
Part #5D7-F317J-30-00
NUT (Ref #14)
14
Part #5D7-F3357-30-00
Bolt, cap (Ref #15)
15
Part #5D7-F3111-30-00
O-Ring (Ref #16)
16
Part #5D7-F3147-30-00
Front Fork Assy (R.h) (Ref #17)
17
Part #5D7-F3103-30-00
Inner Tube Comp.1 (Ref #19)
19
Part #5D7-F3110-30-00
Cylinder Comp., Front Fork (Ref #26)
26
Part #5D7-F3170-30-00
Washer, Needle Valve (Ref #27)
27
Part #37P-F3158-00-00
Bolt, Hexagon Socket Head (Ref #28)
28
Part #5D7-F3181-30-00
Spacer (Ref #30)
30
Part #5D7-F3118-30-00
NUT, SPECIAL (Ref #31)
31
Part #5D7-F3393-30-00
Bolt (Ref #34)
34
Part #5D7-F3436-30-00
Under Bracket Comp (Ref #35)
35
Part #5D7-F3340-30-00
Bolt, Hexagon Socket Head (Ref #36)
36
Part #91314-08040-00
Bolt, Hexagon Socket Head (Ref #36)
36
Part #91314-08040-00
Bolt, Hexagon Socket Head (Ref #36)
36
Part #91314-08040-00
Bolt, Hexagon Socket Head (Ref #36)
36
Part #91314-08040-00
Уплотнение (Ref #37)
37
Part #5D7-F3462-10-00
