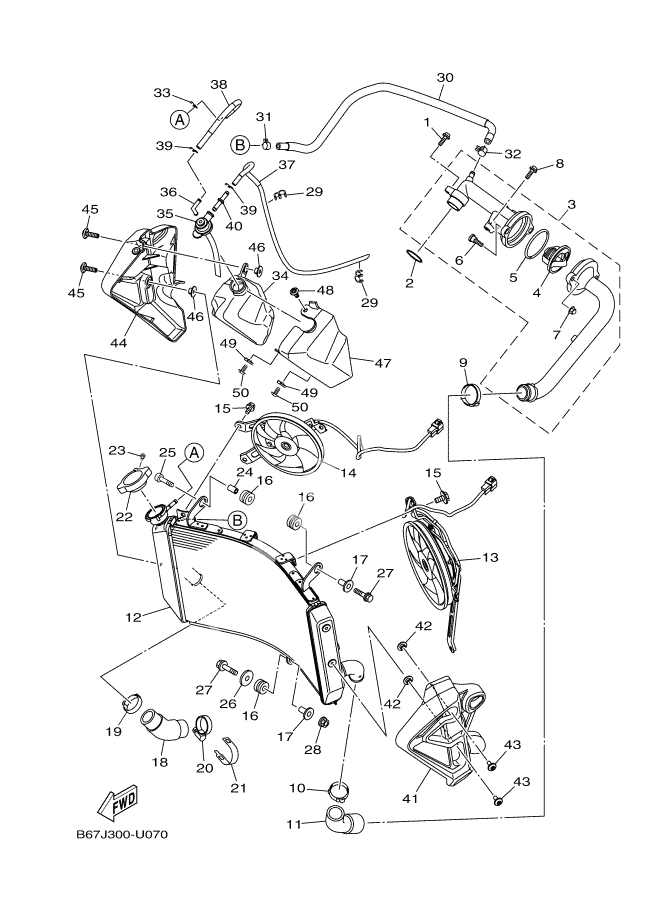

Radiator & hose
Radiator & hose
Bolt, Hexagon Socket Head (Ref #1)
1
Part #90110-06163
O-Ring (Ref #2)
2
Part #93210-26006
Thermostat assy (Ref #3)
3
Part #2CR-12410-01
サーモスタツトアセンブリ (Ref #4)
4
Part #4FM-12410-00
. O-RING (Ref #5)
5
Part #93210-54534
. BOLT (Ref #6)
6
Part #2CR-12615-00
. NUT, CROWN (Ref #7)
7
Part #90176-06017
Clip (Ref #9)
9
Part #90467-350A0
Clip (Ref #10)
10
Part #90467-320A0
Hose 3 (Ref #11)
11
Part #2CR-12578-00
Radiator comp (Ref #12)
12
Part #B67-12461-00
Blower Assy (Ref #13)
13
Part #B67-12405-00
Blower Assy (Ref #14)
14
Part #B67-12405-10
BOLT, BLOWER HOLDING (Ref #15)
15
Part #5GJ-12675-00
BOLT, BLOWER HOLDING (Ref #15)
15
Part #5GJ-12675-00
BOLT, BLOWER HOLDING (Ref #15)
15
Part #5GJ-12675-00
BOLT, BLOWER HOLDING (Ref #15)
15
Part #5GJ-12675-00
Collar (Ref #17)
17
Part #90387-0614M
Collar (Ref #17)
17
Part #90387-0614M
Collar (Ref #17)
17
Part #90387-0614M
Collar (Ref #17)
17
Part #90387-0614M
Hose 7 (Ref #18)
18
Part #2CR-12551-00
Hose Clamp Assy (Ref #20)
20
Part #90450-35001
COVER 2 (Ref #21)
21
Part #5GV-1246E-00
Cap, radiator (Ref #22)
22
Part #B67-12462-10
BOLT (Ref #23)
23
Part #91317-03006
Collar (Ref #24)
24
Part #90387-06M19
BOLT,HEX.SOCKET HEAD (Ref #25)
25
Part #91317-06030
Washer, Plate (Ref #26)
26
Part #90201-06071
Bolt, Flange (Ref #27)
27
Part #95827-06030
Bolt, Flange (Ref #27)
27
Part #95827-06030
Bolt, Flange (Ref #27)
27
Part #95827-06030
Bolt, Flange (Ref #27)
27
Part #95827-06030
NUT, SELF U-FLANGE (Ref #28)
28
Part #95607-06200
Clamp (Ref #29)
29
Part #90464-10M38
Clamp (Ref #29)
29
Part #90464-10M38
Clamp (Ref #29)
29
Part #90464-10M38
Clamp (Ref #29)
29
Part #90464-10M38
Hose 8 (Ref #30)
30
Part #2CR-12552-00
CLIP (Ref #31)
31
Part #90467-11090
Clip (Ref #32)
32
Part #90467-11044
CLIP (Ref #33)
33
Part #90467-08075
Tank, Recovery (Ref #34)
34
Part #B67-21871-00
CAP (Ref #35)
35
Part #3P6-21875-00
ELBOW (Ref #36)
36
Part #26H-21828-00
Pipe, Breather (Ref #37)
37
Part #B67-21826-00
Pipe 1 (Ref #38)
38
Part #B67-21816-00
JOINT (Ref #40)
40
Part #4XY-14568-00
Cover 1 (Ref #41)
41
Part #B67-1246A-00
COLLAR (Ref #42)
42
Part #90387-06170
COLLAR (Ref #42)
42
Part #90387-06170
COLLAR (Ref #42)
42
Part #90387-06170
COLLAR (Ref #42)
42
Part #90387-06170
Bolt,hex. Socket Button (Ref #43)
43
Part #90111-06127
Bolt,hex. Socket Button (Ref #43)
43
Part #90111-06127
Bolt,hex. Socket Button (Ref #43)
43
Part #90111-06127
Bolt,hex. Socket Button (Ref #43)
43
Part #90111-06127
Cover 2 (Ref #44)
44
Part #B67-1246E-00
SCREW (Ref #45)
45
Part #90149-06302
SCREW (Ref #45)
45
Part #90149-06302
SCREW (Ref #45)
45
Part #90149-06302
SCREW (Ref #45)
45
Part #90149-06302
Collar (Ref #46)
46
Part #90387-06024
Collar (Ref #46)
46
Part #90387-06024
Collar (Ref #46)
46
Part #90387-06024
Collar (Ref #46)
46
Part #90387-06024
Cover 3 (Ref #47)
47
Part #B67-1246F-00
Rivet (Ref #48)
48
Part #90269-06019
Nut, Spring (Ref #49)
49
Part #90183-05042
Nut, Spring (Ref #49)
49
Part #90183-05042
Nut, Spring (Ref #49)
49
Part #90183-05042
Nut, Spring (Ref #49)
49
Part #90183-05042
Screw, Tapping (Ref #50)
50
Part #90167-05079
Screw, Tapping (Ref #50)
50
Part #90167-05079
Screw, Tapping (Ref #50)
50
Part #90167-05079
Screw, Tapping (Ref #50)
50
Part #90167-05079
