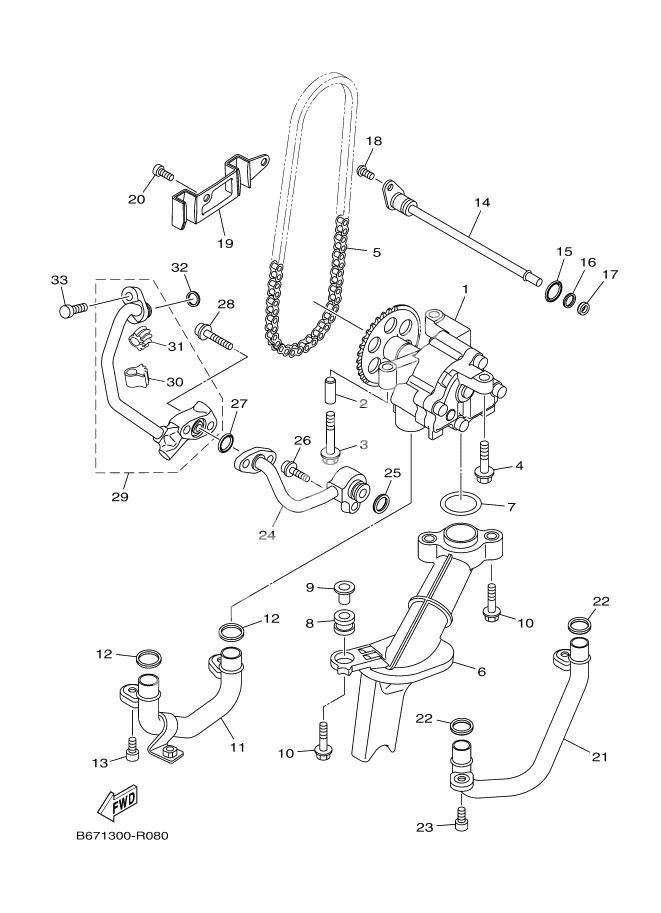

Oil pump
Oil pump
OIL PUMP ASSY (Ref #1)
1
Part #2CR-13300-00
Pin, Dowel (Ref #2)
2
Part #91808-22019
Bolt, Flange (Ref #3)
3
Part #95817-06035
Bolt, Flange (Ref #4)
4
Part #95817-06025
CHAIN (Ref #5)
5
Part #94580-31080
Strainer Housing Assy (Ref #6)
6
Part #2CR-13410-01
O-Ring (Ref #7)
7
Part #93210-22M93
GROMMET (Ref #8)
8
Part #90480-13010
Collar, distance (Ref #9)
9
Part #5VY-13117-10
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06173
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06173
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06173
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06173
Pipe, Oil 1 (Ref #11)
11
Part #2CR-13416-00
O-RING (Ref #12)
12
Part #93210-14003
O-RING (Ref #12)
12
Part #93210-14003
O-RING (Ref #12)
12
Part #93210-14003
O-RING (Ref #12)
12
Part #93210-14003
Bolt, Hexagon Socket Head (Ref #13)
13
Part #90110-06182
Pipe, Delivery 5 (Ref #14)
14
Part #2CR-1316E-00
O-Ring (Ref #15)
15
Part #93210-12010
O-Ring (Ref #16)
16
Part #93210-09525
O-RING (Ref #17)
17
Part #93210-06667
SCREW (Ref #18)
18
Part #90149-06158
Holder (Ref #19)
19
Part #2CR-13898-00
Pipe, Delivery 2 (Ref #21)
21
Part #2CR-13171-00
O-Ring (Ref #22)
22
Part #93210-13361
O-Ring (Ref #22)
22
Part #93210-13361
O-Ring (Ref #22)
22
Part #93210-13361
O-Ring (Ref #22)
22
Part #93210-13361
Oil Pipe Comp. 1 (Ref #24)
24
Part #2CR-13405-00
O-RING (Ref #25)
25
Part #93210-12790
Bolt, Hexagon Socket Head (Ref #26)
26
Part #90110-06395
Bolt, Hexagon Socket Head (Ref #28)
28
Part #90110-06389
Delivery Pipe Assy 2 (Ref #29)
29
Part #2CR-13170-00
. DAMPER (Ref #30)
30
Part #2CR-13159-00
. DAMPER (Ref #31)
31
Part #2CR-13593-00
O-Ring (Ref #32)
32
Part #93210-09754
Bolt, Hexagon Socket Head (Ref #33)
33
Part #90110-06295
