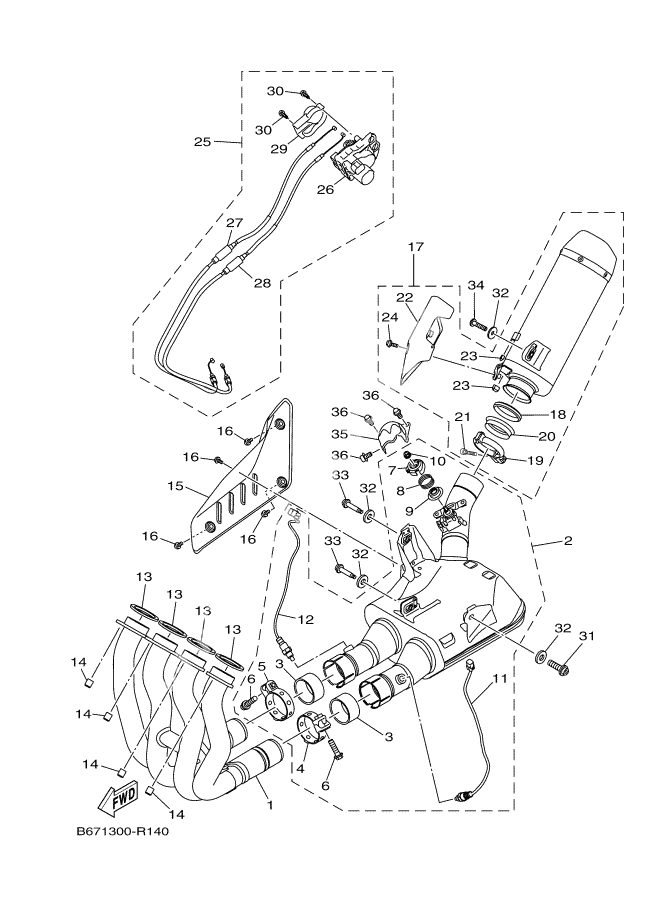

Exhaust
Exhaust
Exhaust pipe comp. (Ref #1)
1
Part #B60-14602-00
Chamber Assy (Ref #2)
2
Part #B67-14730-01
. GASKET, MUFFLER (Ref #3)
3
Part #5YU-14714-10
. GASKET, MUFFLER (Ref #3)
3
Part #5YU-14714-10
. GASKET, MUFFLER (Ref #3)
3
Part #5YU-14714-10
. GASKET, MUFFLER (Ref #3)
3
Part #5YU-14714-10
. BAND, MUFFLER (Ref #4)
4
Part #39P-14715-00
. BAND, MUFFLER (Ref #5)
5
Part #2CR-14715-00
. BOLT, FLANGE (SMALL HEAD) (Ref #6)
6
Part #95024-08035
. BOLT, FLANGE (SMALL HEAD) (Ref #6)
6
Part #95024-08035
. BOLT, FLANGE (SMALL HEAD) (Ref #6)
6
Part #95024-08035
. BOLT, FLANGE (SMALL HEAD) (Ref #6)
6
Part #95024-08035
. PULLEY (Ref #7)
7
Part #2C0-14865-00
. SPRING (Ref #8)
8
Part #2C0-14856-00
. SEAT, SPRING (Ref #9)
9
Part #2D1-14843-00
. NUT (Ref #10)
10
Part #90179-06063
. SENSOR, OXYGEN (Ref #11)
11
Part #BW8-8592A-10
. SENSOR, OXYGEN (Ref #12)
12
Part #2CR-8592A-20
Protector, Muffler 1 (Ref #15)
15
Part #B67-14718-00
Silencer Assy (Ref #17)
17
Part #B67-14750-00
. GASKET, EXHAUST PIPE (Ref #18)
18
Part #2CR-14623-00
. BAND, MUFFLER (Ref #19)
19
Part #2CR-14725-00
. RING, STOPPER (Ref #20)
20
Part #2CR-14618-00
. BOLT, HEXAGON SOCKET HEAD (Ref #21)
21
Part #90110-06343
. PROTECTOR, MUFFLER 2 (Ref #22)
22
Part #B67-14728-00
. DAMPER, MUFFLER (Ref #23)
23
Part #5S7-14737-00
. DAMPER, MUFFLER (Ref #23)
23
Part #5S7-14737-00
. DAMPER, MUFFLER (Ref #23)
23
Part #5S7-14737-00
. DAMPER, MUFFLER (Ref #23)
23
Part #5S7-14737-00
. BOLT (Ref #24)
24
Part #B67-14777-00
SERVO MOTOR COMP (Ref #25)
25
Part #B67-4616A-00
. SERVO MOTOR ASSY (Ref #26)
26
Part #2CR-85820-00
. CABLE, PULLEY 1 (Ref #27)
27
Part #B67-1133E-00
. CABLE, PULLEY 2 (Ref #28)
28
Part #B67-1133F-00
. COVER, SERVO MOTOR (Ref #29)
29
Part #5VY-85829-01
Screw, Tapping (Ref #30)
30
Part #97702-50514
Screw, Tapping (Ref #30)
30
Part #97702-50514
Screw, Tapping (Ref #30)
30
Part #97702-50514
Screw, Tapping (Ref #30)
30
Part #97702-50514
Bolt, Hexagon Socket Head (Ref #31)
31
Part #90110-08099
Bolt (Ref #33)
33
Part #90109-08238
Bolt (Ref #33)
33
Part #90109-08238
Bolt (Ref #33)
33
Part #90109-08238
Bolt (Ref #33)
33
Part #90109-08238
Bolt, Hexagon Socket Head (Ref #34)
34
Part #90110-08071
Protector, Exhaust (Ref #35)
35
Part #B67-14826-00
