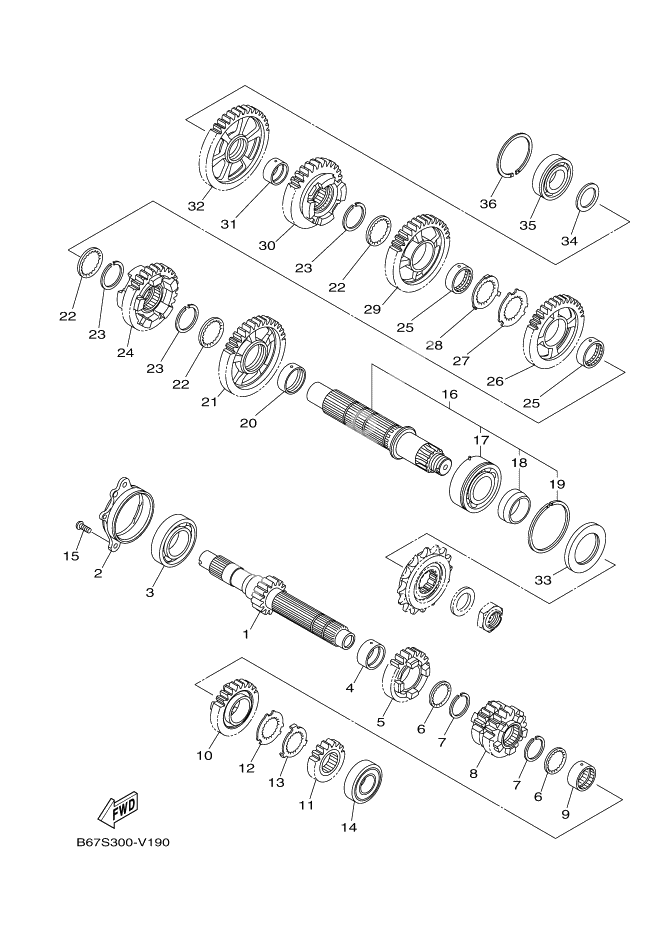

Трансмиссия
Трансмиссия
Axle, Main (15T) (Ref #1)
1
Part #2CR-17411-00
Housing, Bearing 1 (Ref #2)
2
Part #2CR-15163-00
BEARING (Ref #3)
3
Part #93306-20652
COLLAR (Ref #4)
4
Part #90387-28003
Gear, 5Th Pinion (21T) (Ref #5)
5
Part #2CR-17151-00
WASHER (Ref #6)
6
Part #90209-25011
WASHER (Ref #6)
6
Part #90209-25011
WASHER (Ref #6)
6
Part #90209-25011
WASHER (Ref #6)
6
Part #90209-25011
Circlip (Ref #7)
7
Part #93440-28184
Circlip (Ref #7)
7
Part #93440-28184
Circlip (Ref #7)
7
Part #93440-28184
Circlip (Ref #7)
7
Part #93440-28184
Gear, 3Rd Pinion (19/19T) (Ref #8)
8
Part #2CR-17131-01
Collar (Ref #9)
9
Part #90387-25023
Gear, 6Th Pinion (24T) (Ref #10)
10
Part #2CR-17161-00
Gear, 2Nd Pinion (17T) (Ref #11)
11
Part #B3L-17121-00
WASHER, CLAW (Ref #12)
12
Part #90214-25004
WASHER, CLAW (Ref #13)
13
Part #90214-25003
Bearing (Ref #14)
14
Part #93306-27214
SCREW (Ref #15)
15
Part #90149-06082
Drive Axle Assy (Ref #16)
16
Part #2CR-17402-00
. BEARING (Ref #17)
17
Part #93305-20605
Collar (Ref #18)
18
Part #90387-30012
Circlip (Ref #19)
19
Part #93440-62032
COLLAR (Ref #20)
20
Part #90387-31003
Gear, 2Nd Wheel (37T) (Ref #21)
21
Part #BW8-17221-00
Gear, 6Th Wheel (30T) (Ref #24)
24
Part #2CR-17261-00
COLLAR (Ref #25)
25
Part #90387-28004
COLLAR (Ref #25)
25
Part #90387-28004
COLLAR (Ref #25)
25
Part #90387-28004
COLLAR (Ref #25)
25
Part #90387-28004
Gear, 4Th Wheel (30T) (Ref #26)
26
Part #2CR-17241-01
Washer, Claw (Ref #27)
27
Part #90214-29002
Washer, Claw (Ref #28)
28
Part #90214-28002
Gear, 3Rd Wheel (35T) (Ref #29)
29
Part #B67-17231-01
Gear, 5Th Wheel (29T) (Ref #30)
30
Part #2CR-17251-00
COLLAR (Ref #31)
31
Part #90387-25008
Gear, 1St Wheel (39T) (Ref #32)
32
Part #B60-17211-00
OIL SEAL (Ref #33)
33
Part #93102-40330
Washer, Plate (Ref #34)
34
Part #90201-257H0
BEARING (Ref #35)
35
Part #93306-205A2
. CIRCLIP (Ref #36)
36
Part #93440-52009
