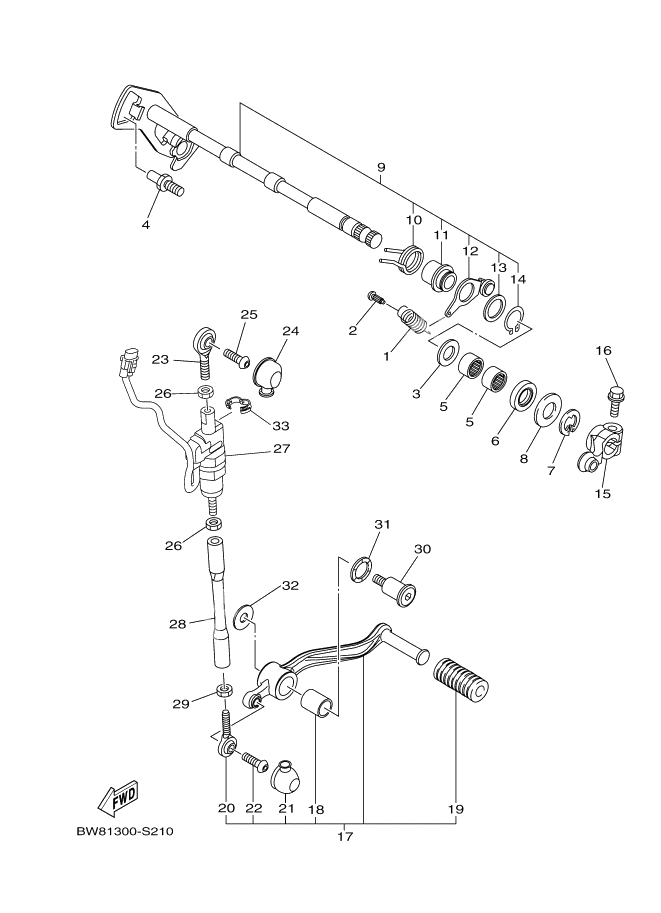

Shift shaft
Shift shaft
Spring, Tension (Ref #1)
1
Part #90506-18021
HOOK, SPRING (Ref #2)
2
Part #1321634600
Washer, Plate (Ref #3)
3
Part #90201-127E1
STOPPER, SCREW (Ref #4)
4
Part #1D7-18127-00
BEARING (Ref #5)
5
Part #93317-11295
BEARING (Ref #5)
5
Part #93317-11295
BEARING (Ref #5)
5
Part #93317-11295
BEARING (Ref #5)
5
Part #93317-11295
OIL SEAL (SD 12-22-5 HS) (Ref #6)
6
Part #93102-12106
Circlip (Ref #7)
7
Part #99002-10600
WASHER, PLATE (Ref #8)
8
Part #90201-12575
Shift Shaft Assy (Ref #9)
9
Part #2CR-18101-00
. SPRING, TORSION (Ref #10)
10
Part #90508-32141
. SPACER (Ref #11)
11
Part #2C0-18175-00
. STOPPER LEVER ASSY (Ref #12)
12
Part #14B-18140-00
WASHER, PLATE (Ref #13)
13
Part #90201-177G4
Circlip (Ref #14)
14
Part #99009-17400
Arm, Shift (Ref #15)
15
Part #BW8-18112-00
Bolt, Flange (Ref #16)
16
Part #90105-06127
Shift Pedal Assy (Ref #17)
17
Part #B67-18110-00
. BUSH (Ref #18)
18
Part #90386-14171
. COVER, SHIFT PEDAL (Ref #19)
19
Part #5EB-18113-00
Joint, Rod 2 (Ref #20)
20
Part #5LV-18117-00
COVER, DUST (Ref #21)
21
Part #4XV-18154-00
. BOLT,HEX. SOCKET BUTTON (Ref #22)
22
Part #90111-06019
JOINT, ROD 1 (Ref #23)
23
Part #5LV-18116-00
NUT (Ref #26)
26
Part #95304-06700
NUT (Ref #26)
26
Part #95304-06700
NUT (Ref #26)
26
Part #95304-06700
NUT (Ref #26)
26
Part #95304-06700
Shift Switch Assy (Ref #27)
27
Part #2CR-82470-02
Rod, Shift (Ref #28)
28
Part #B67-18115-10
NUT(COUNTER CLOCKWISE) (Ref #29)
29
Part #90170-06228
Bolt (Ref #30)
30
Part #4C8-27434-00
Washer, Wave (Ref #31)
31
Part #90206-14086
Washer, Plate (Ref #32)
32
Part #90201-08103
CLAMP (Ref #33)
33
Part #90464-13227
