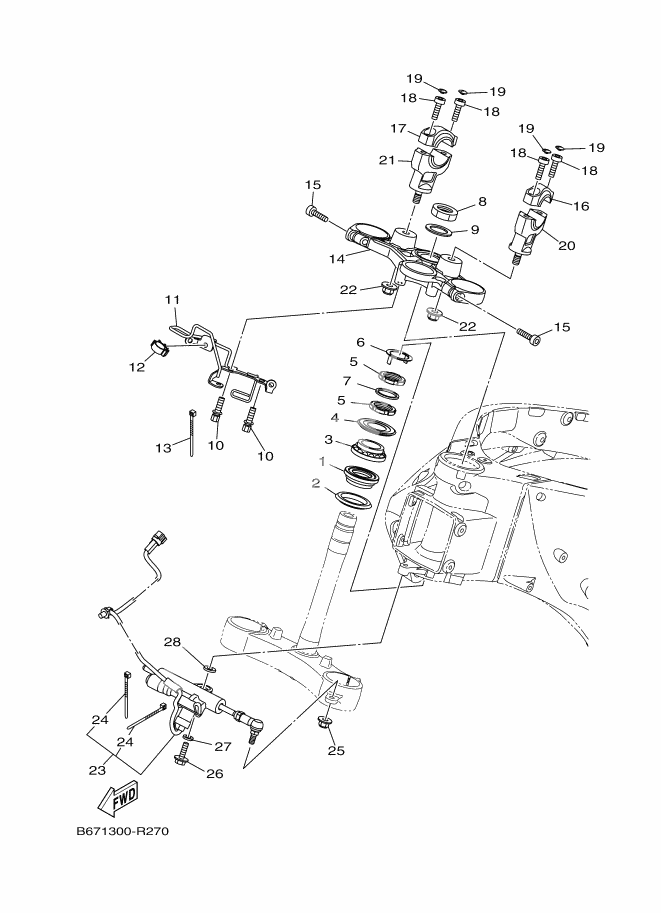

Steering
Steering
BEARING (Ref #1)
1
Part #93399-99957
SEAL, STEERING (Ref #2)
2
Part #3FV-23462-00
BEARING (Ref #3)
3
Part #93399-99932
COVER, BALL RACE 1 (Ref #4)
4
Part #4XV-23415-01
NUT (Ref #5)
5
Part #90179-30691
NUT (Ref #5)
5
Part #90179-30691
NUT (Ref #5)
5
Part #90179-30691
NUT (Ref #5)
5
Part #90179-30691
Washer, special (Ref #6)
6
Part #4XV-23418-00
WASHER, PLATE (Ref #7)
7
Part #90202-30235
NUT (Ref #8)
8
Part #90170-28419
Washer, Plate (Ref #9)
9
Part #90201-281U8
BOLT (Ref #10)
10
Part #90109-08195
BOLT (Ref #10)
10
Part #90109-08195
BOLT (Ref #10)
10
Part #90109-08195
BOLT (Ref #10)
10
Part #90109-08195
Guide, Cable (Ref #11)
11
Part #B67-23389-00
Clamp (Ref #12)
12
Part #90464-16006
CLAMP (Ref #13)
13
Part #90465-10098
Crown, Handle (Ref #14)
14
Part #B67-23435-00
Bolt, Hexagon Socket Head (Ref #15)
15
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #15)
15
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #15)
15
Part #91314-08030
Bolt, Hexagon Socket Head (Ref #15)
15
Part #91314-08030
HOLDER, HANDLE UPPER (Ref #16)
16
Part #2BS-23441-00
Holder, Handle Upper 1 (Ref #17)
17
Part #2BS-2344A-00
Holder 1 (Ref #20)
20
Part #B67-24847-01
Holder 2 (Ref #21)
21
Part #B67-24848-01
NUT, S/L FLANGE (Ref #22)
22
Part #95602-10200
NUT, S/L FLANGE (Ref #22)
22
Part #95602-10200
NUT, S/L FLANGE (Ref #22)
22
Part #95602-10200
NUT, S/L FLANGE (Ref #22)
22
Part #95602-10200
Handlebar Shimmy Damper Assy (Ref #23)
23
Part #B67-23490-00
BAND (Ref #24)
24
Part #1UA-82591-00
BAND (Ref #24)
24
Part #1UA-82591-00
BAND (Ref #24)
24
Part #1UA-82591-00
BAND (Ref #24)
24
Part #1UA-82591-00
Nut, U Flange (Ref #25)
25
Part #95602-08200
Bolt, Flange (Ref #26)
26
Part #90105-08153
Washer, Plate (Ref #27)
27
Part #90201-08676
Washer (Ref #28)
28
Part #5VY-26398-00
