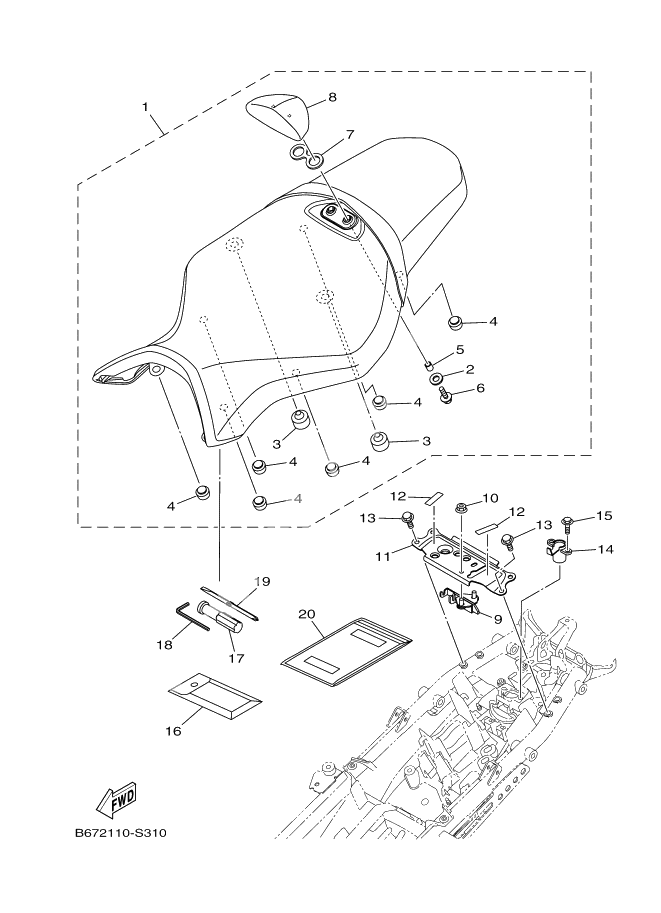

Seat
Seat
Double Seat Assy (Ref #1)
1
Part #B67-24730-02
Washer, Plate (Ref #2)
2
Part #90201-06085
Stopper, Main Stand (Ref #3)
3
Part #4GL-27114-00
Stopper, Main Stand (Ref #3)
3
Part #4GL-27114-00
Stopper, Main Stand (Ref #3)
3
Part #4GL-27114-00
Stopper, Main Stand (Ref #3)
3
Part #4GL-27114-00
. COLLAR (Ref #5)
5
Part #5BN-2475Y-00
Bolt, Flange (Ref #6)
6
Part #95822-06020
. SEAL 2 (Ref #7)
7
Part #B67-28429-00
. SEAT BACK ASSY (Ref #8)
8
Part #B67-24790-01
SEAT LOCK ASSY (Ref #9)
9
Part #4BP-24780-00
NUT, FLANGE (Ref #10)
10
Part #95702-06500
Bracket, seat lock (Ref #11)
11
Part #B67-2478X-00
Seal 2 (Ref #12)
12
Part #3P6-28228-00
Seal 2 (Ref #12)
12
Part #3P6-28228-00
Seal 2 (Ref #12)
12
Part #3P6-28228-00
Seal 2 (Ref #12)
12
Part #3P6-28228-00
Bolt, Flange (Ref #13)
13
Part #95022-06016
Bolt, Flange (Ref #13)
13
Part #95022-06016
Bolt, Flange (Ref #13)
13
Part #95022-06016
Bolt, Flange (Ref #13)
13
Part #95022-06016
Rotor Set (Ref #14)
14
Part #1RC-W2470-00
Bolt, Flange (Ref #15)
15
Part #95022-06014
Tool Kit (Ref #16)
16
Part #B67-28100-00
Grip, Driver (Ref #17)
17
Part #2H7-28151-00
Wrench, Hexagon 8 (Ref #18)
18
Part #23P-28164-00
Driver (Ref #19)
19
Part #137-28152-00
Pouch (Ref #20)
20
Part #4KG-28186-11
