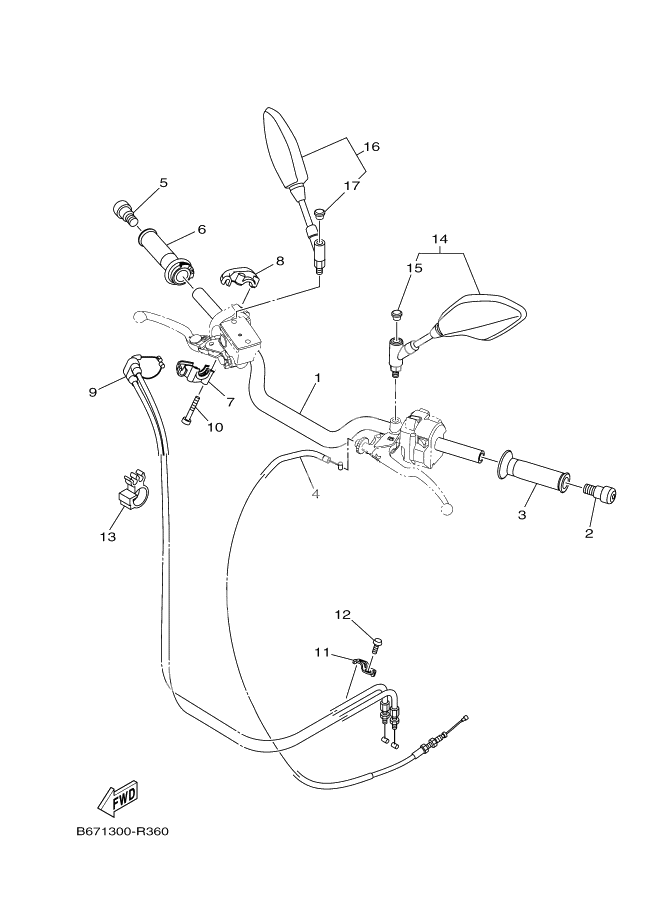

Steering handle & cable
Steering handle & cable
Handlebar (Ref #1)
1
Part #B67-26111-00
END, GRIP (Ref #2)
2
Part #5GJ-26246-00
Grip (Left) (Ref #3)
3
Part #4YR-26241-03
Wire, clutch (Ref #4)
4
Part #B67-26335-00
Grip Assy (Ref #6)
6
Part #4YR-26240-03
Cap, Grip Upper (Ref #7)
7
Part #1WS-26281-00
Cap, Grip Under (Ref #8)
8
Part #1WS-26282-00
Throttle Cable Assy (Ref #9)
9
Part #B67-26302-00
. BOLT (Ref #10)
10
Part #91317-05040
Clamp, wire (Ref #11)
11
Part #2CR-2627E-00
Bolt, Button Head (Ref #12)
12
Part #92014-06012
Clamp (Ref #13)
13
Part #90464-16023
Rear View Mirror Assy (Left) (Ref #14)
14
Part #B67-26280-01
. CAP (Ref #15)
15
Part #5PS-26133-20
Rear View Mirror Assy (Right) (Ref #16)
16
Part #B67-26290-01
