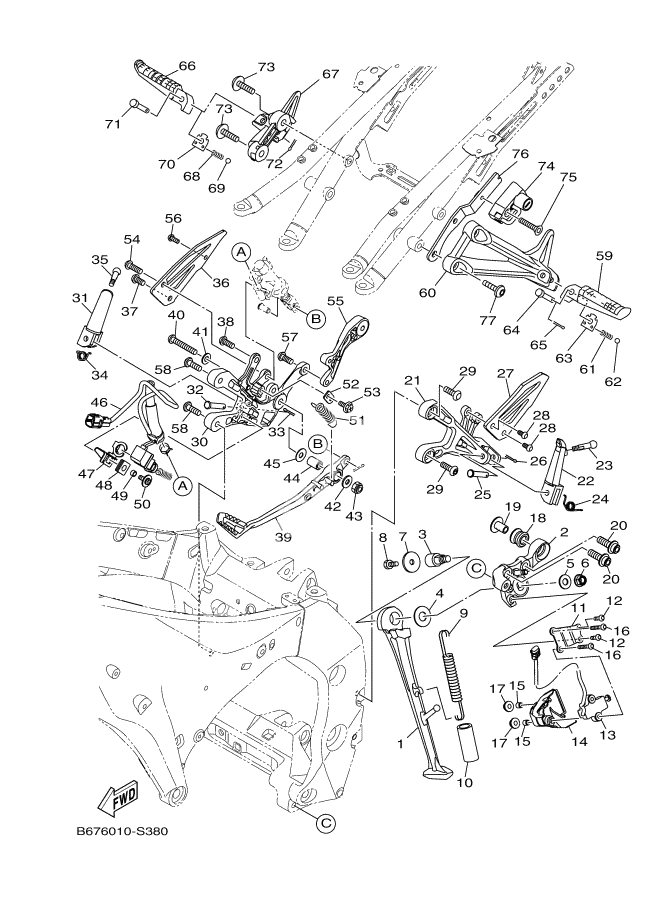

Stand & footrest
Stand & footrest
Stand, Side (Ref #1)
1
Part #B67-27311-00
Bracket, Side Stand (Ref #2)
2
Part #B67-27321-00
Guide, Side Stand (Ref #3)
3
Part #2C0-27351-00
Washer, Plate (Ref #4)
4
Part #90201-146F9
WASHER, PLATE (Ref #5)
5
Part #90201-10035
NUT, S/L FLANGE (Ref #6)
6
Part #95602-10200
Washer, Plate (Ref #7)
7
Part #90201-08050
Bolt (Ref #8)
8
Part #90101-08662
Spring, Tension (Ref #9)
9
Part #90506-20032
HOSE (L60) (Ref #10)
10
Part #90445-197J2
Bracket, Sensor 1 (Ref #11)
11
Part #14B-27961-00
Bolt, Button Head (Ref #12)
12
Part #92012-05016
Bolt, Button Head (Ref #12)
12
Part #92012-05016
Bolt, Button Head (Ref #12)
12
Part #92012-05016
Bolt, Button Head (Ref #12)
12
Part #92012-05016
Switch, side stand (Ref #13)
13
Part #2CR-82566-00
COVER ASSY (Ref #14)
14
Part #2CR-27406-00
COLLAR (Ref #15)
15
Part #90387-05025
COLLAR (Ref #15)
15
Part #90387-05025
COLLAR (Ref #15)
15
Part #90387-05025
COLLAR (Ref #15)
15
Part #90387-05025
Bolt, Button Head (Ref #16)
16
Part #92012-05030
Bolt, Button Head (Ref #16)
16
Part #92012-05030
Bolt, Button Head (Ref #16)
16
Part #92012-05030
Bolt, Button Head (Ref #16)
16
Part #92012-05030
Nut, Self-Locking (Ref #17)
17
Part #95602-05200
Nut, Self-Locking (Ref #17)
17
Part #95602-05200
Nut, Self-Locking (Ref #17)
17
Part #95602-05200
Nut, Self-Locking (Ref #17)
17
Part #95602-05200
Damper, Muffler (Ref #18)
18
Part #5VY-14747-00
COLLAR (Ref #19)
19
Part #90387-08021
Bolt (Ref #20)
20
Part #90109-10002
Bolt (Ref #20)
20
Part #90109-10002
Bolt (Ref #20)
20
Part #90109-10002
Bolt (Ref #20)
20
Part #90109-10002
Bracket 2 (Ref #21)
21
Part #B67-27442-00
FOOTREST 3 (Ref #22)
22
Part #3XV-27451-02
Bolt (Ref #23)
23
Part #90109-08231
Spring, Torsion (Ref #24)
24
Part #90508-18134
PIN (Ref #25)
25
Part #91701-08040
. PIN, COTTER (Ref #26)
26
Part #91402-25015
Plate 1 (Ref #27)
27
Part #B67-27445-00
BOLT (Ref #28)
28
Part #90111-06065
BOLT (Ref #28)
28
Part #90111-06065
BOLT (Ref #28)
28
Part #90111-06065
BOLT (Ref #28)
28
Part #90111-06065
Bolt,hex. Socket Button (Ref #29)
29
Part #90111-08085
Bolt,hex. Socket Button (Ref #29)
29
Part #90111-08085
Bolt,hex. Socket Button (Ref #29)
29
Part #90111-08085
Bolt,hex. Socket Button (Ref #29)
29
Part #90111-08085
Bracket 3 (Ref #30)
30
Part #B67-27443-00
フートレスト (Ref #31)
31
Part #3XV-27461-02
Spring, Torsion (Ref #34)
34
Part #90508-18135
Plate 2 (Ref #36)
36
Part #B67-27446-00
Bolt, Button Head (Ref #37)
37
Part #92012-08016
Bolt, Button Head (Ref #38)
38
Part #92012-08020
Pedal, Brake (Ref #39)
39
Part #B67-27211-00
Bolt, Button Head (Ref #40)
40
Part #92012-08050
WASHER (Ref #41)
41
Part #92902-08200
Washer, Plate (Ref #42)
42
Part #90201-08048
Nut, Self-Locking (Ref #43)
43
Part #90185-08089
COLLAR (Ref #44)
44
Part #90387-08102
Washer, Plate (Ref #45)
45
Part #90201-08103
Stop Switch Assy (Ref #46)
46
Part #B67-82530-00
Stay, stop switch (Ref #47)
47
Part #B67-2144G-00
GROMMET (Ref #48)
48
Part #90480-12607
COLLAR (Ref #49)
49
Part #90387-06M16
Screw, With Washer (Ref #50)
50
Part #90159-06150
Spring, Tension (Ref #51)
51
Part #90506-23008
Bracket 1 (Ref #52)
52
Part #B67-27432-00
Bolt, Flange (Ref #53)
53
Part #95802-06010
Bolt, Button Head (Ref #54)
54
Part #92012-08025
Stay, Muffler 3 (Ref #55)
55
Part #B67-21487-00
Bolt, Button Head (Ref #56)
56
Part #92012-06014
FOOTREST, REAR 1 (Ref #59)
59
Part #3VR-27431-02
BRACKET 4 (Ref #60)
60
Part #1RC-2741L-01
. SPRING, COMPRESSION (Ref #61)
61
Part #90501-12743
BALL (Ref #62)
62
Part #93501-04011
Washer, special (Ref #63)
63
Part #5VX-27437-00
Pin, Clevis (Ref #64)
64
Part #91702-08040
Pin, Cotter (Ref #65)
65
Part #91401-25015
FOOTREST, REAR 2 (Ref #66)
66
Part #3VR-27441-02
Bracket 5 (Ref #67)
67
Part #B67-2742L-00
SCREW (Ref #73)
73
Part #90149-08230
SCREW (Ref #73)
73
Part #90149-08230
SCREW (Ref #73)
73
Part #90149-08230
SCREW (Ref #73)
73
Part #90149-08230
Hanger, Helmet (Ref #74)
74
Part #4R8-21398-01
Screw, Countersunk (Ref #75)
75
Part #90151-06018
ブラケツト,ヘルメツト ハンガー (Ref #76)
76
Part #1RC-2115J-00
SCREW (Ref #77)
77
Part #90149-08063
