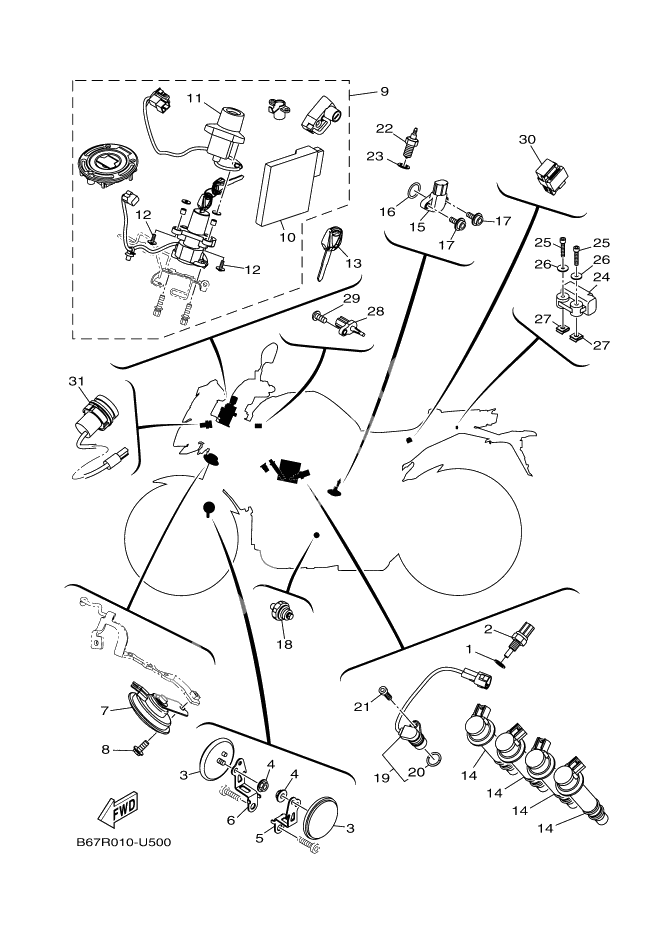

Electrical 1
Electrical 1
GASKET (Ref #1)
1
Part #90430-10004
サーモユニツト (Ref #2)
2
Part #4P9-83591-00
REFLECTOR, FRONT 1 (Ref #3)
3
Part #4AG-85111-00
REFLECTOR, FRONT 1 (Ref #3)
3
Part #4AG-85111-00
REFLECTOR, FRONT 1 (Ref #3)
3
Part #4AG-85111-00
REFLECTOR, FRONT 1 (Ref #3)
3
Part #4AG-85111-00
NUT, FLANGE (Ref #4)
4
Part #95702-06500
NUT, FLANGE (Ref #4)
4
Part #95702-06500
NUT, FLANGE (Ref #4)
4
Part #95702-06500
NUT, FLANGE (Ref #4)
4
Part #95702-06500
Bracket, Reflector 1 (Ref #5)
5
Part #2CR-85112-00
Bracket, Reflector 2 (Ref #6)
6
Part #2CR-85122-00
Horn (Ref #7)
7
Part #B67-83371-00
Bolt, Flange (Ref #8)
8
Part #95812-06012
Main Sw. Immobilizer Kit (Ref #9)
9
Part #B67-W8250-40
. ENGINE CONTROL UNIT ASSY (Ref #10)
10
Part #B67-8591A-30
. IMMOBILIZER. UNIT COMP. (Ref #11)
11
Part #1MC-8255P-00
. SCREW (Ref #12)
12
Part #5SL-82113-01
. SCREW (Ref #12)
12
Part #5SL-82113-01
. SCREW (Ref #12)
12
Part #5SL-82113-01
. SCREW (Ref #12)
12
Part #5SL-82113-01
BLANK KEY (Ref #13)
13
Part #5SL-82511-08
Sensor, Gear Position (Ref #15)
15
Part #2CR-85899-10
O-RING (Ref #16)
16
Part #93210-17008
Bolt, Hexagon Socket Head (Ref #17)
17
Part #90110-05067
Bolt, Hexagon Socket Head (Ref #17)
17
Part #90110-05067
Bolt, Hexagon Socket Head (Ref #17)
17
Part #90110-05067
Bolt, Hexagon Socket Head (Ref #17)
17
Part #90110-05067
Oil Pressure Switch Assy (Ref #18)
18
Part #1WS-82504-00
SENSOR, CAM POSITION (Ref #19)
19
Part #5VY-85896-02
. O-RING (Ref #20)
20
Part #4D9-81168-00
. BOLT, HEXAGON SOCKET HEAD (Ref #21)
21
Part #90110-06175
Neutral Switch Assy (Ref #22)
22
Part #3GB-82540-01
Gasket (Ref #23)
23
Part #90430-10148
SENSOR, LEAN ANGLE (Ref #24)
24
Part #5PS-82576-01
Bolt, Hexagon Socket Head (Ref #25)
25
Part #91312-04025
Bolt, Hexagon Socket Head (Ref #25)
25
Part #91312-04025
Bolt, Hexagon Socket Head (Ref #25)
25
Part #91312-04025
Bolt, Hexagon Socket Head (Ref #25)
25
Part #91312-04025
WASHER, PLATE (Ref #26)
26
Part #90201-04030
WASHER, PLATE (Ref #26)
26
Part #90201-04030
WASHER, PLATE (Ref #26)
26
Part #90201-04030
WASHER, PLATE (Ref #26)
26
Part #90201-04030
Nut, Spring (Ref #27)
27
Part #90183-04039
Nut, Spring (Ref #27)
27
Part #90183-04039
Nut, Spring (Ref #27)
27
Part #90183-04039
Nut, Spring (Ref #27)
27
Part #90183-04039
Sensor, Air Temperature (Ref #28)
28
Part #5YU-85886-00
Screw, Tapping (Ref #29)
29
Part #97702-50516
Relay Assy (G8Hn-1C4T-Dj-Y52) (Ref #30)
30
Part #5DM-81950-01
TERMINAL COMP. (Ref #31)
31
Part #B67-8254B-01
