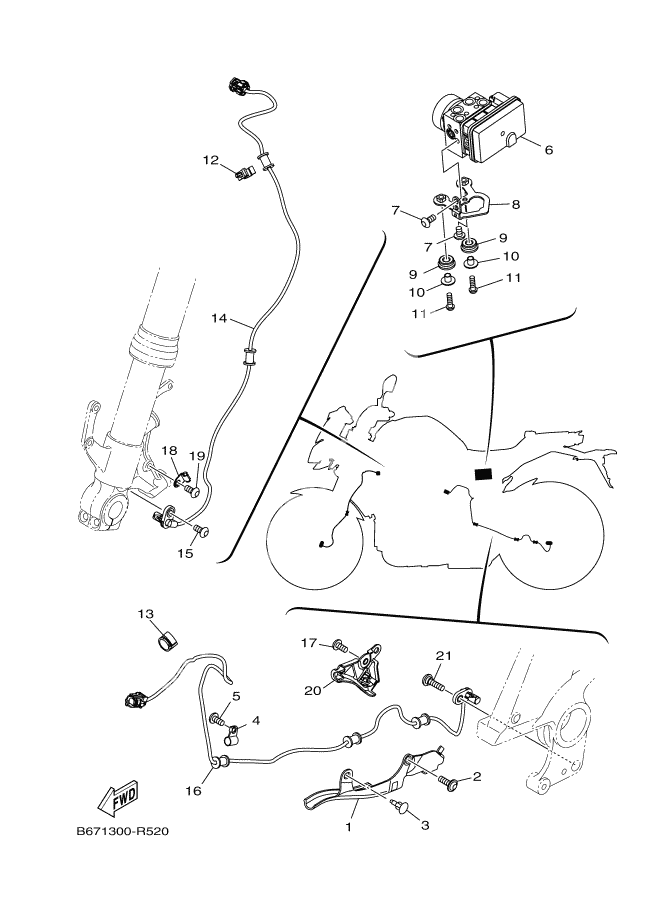

Electrical 3
Electrical 3
Cover (Ref #1)
1
Part #2CR-2219X-00
Bolt, Button Head (Ref #2)
2
Part #92012-06016
Rivet (Ref #3)
3
Part #90269-07007
Hook (Ref #4)
4
Part #B67-2216F-00
BOLT, BUTTON HEAD (Ref #5)
5
Part #92017-06012
Hydraulic Unit Assy (Ref #6)
6
Part #B67-85930-09
Bolt, Button Head (Ref #7)
7
Part #92012-06010
Bolt, Button Head (Ref #7)
7
Part #92012-06010
Bolt, Button Head (Ref #7)
7
Part #92012-06010
Bolt, Button Head (Ref #7)
7
Part #92012-06010
Bracket, Unit (Ref #8)
8
Part #B67-85991-00
GROMMET (Ref #9)
9
Part #90480-13567
GROMMET (Ref #9)
9
Part #90480-13567
GROMMET (Ref #9)
9
Part #90480-13567
GROMMET (Ref #9)
9
Part #90480-13567
COLLAR (Ref #10)
10
Part #90387-06160
COLLAR (Ref #10)
10
Part #90387-06160
COLLAR (Ref #10)
10
Part #90387-06160
COLLAR (Ref #10)
10
Part #90387-06160
Bolt, Button Head (Ref #11)
11
Part #92012-06020
Bolt, Button Head (Ref #11)
11
Part #92012-06020
Bolt, Button Head (Ref #11)
11
Part #92012-06020
Bolt, Button Head (Ref #11)
11
Part #92012-06020
Clamp (Ref #12)
12
Part #90464-09129
CLAMP (Ref #13)
13
Part #90464-16003
Wheel Sensor Assy, Front (Ref #14)
14
Part #2CR-85970-00
Bolt, Button Head (Ref #15)
15
Part #92017-06014
Wheel Sensor Assy, Rear (Ref #16)
16
Part #2CR-85980-00
Bolt, Button Head (Ref #17)
17
Part #92014-06012
Holder, Cable (Ref #18)
18
Part #2CR-23317-00
Protector (Ref #20)
20
Part #2CR-27491-00
Bolt (Ref #21)
21
Part #90109-06234
