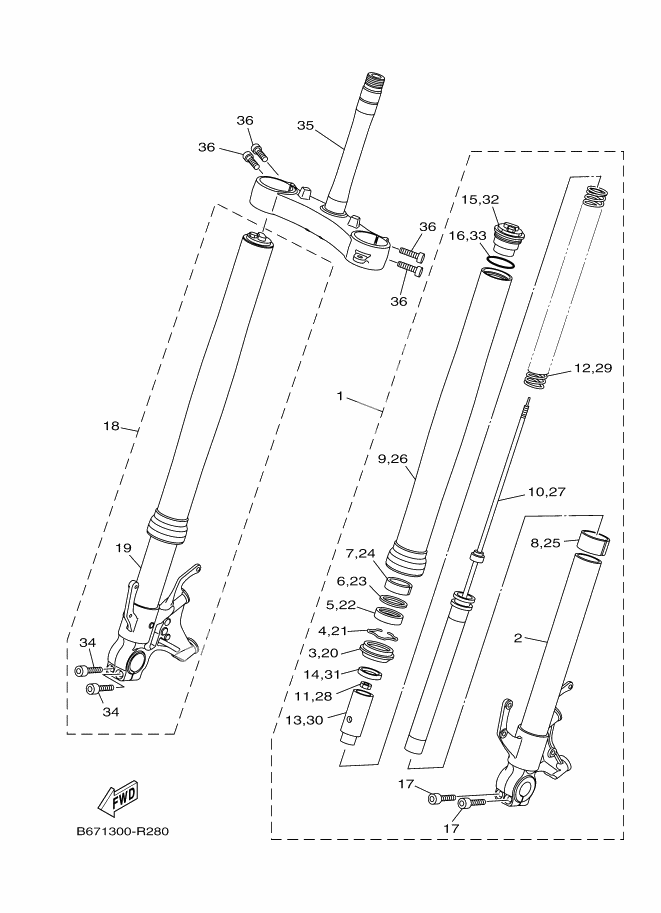

FRONT FORK
FRONT FORK
Front Fork Assy (L.h) (Ref #1)
1
Part #B67-23102-10
. INNER TUBE COMP.1 (Ref #2)
2
Part #2CR-23110-00
. . SEAL, DUST (Ref #3)
3
Part #4PU-23144-00
. . RING, SNAP (Ref #4)
4
Part #4V4-23153-L0
. . OIL SEAL (Ref #5)
5
Part #4PU-23145-01
. . ワツシヤ,オイルシール (Ref #6)
6
Part #5PW-23146-00
. METAL, SLIDE 1 (Ref #7)
7
Part #2CR-23125-00
. PISTON, FRONT FORK (Ref #8)
8
Part #2CR-23171-00
. TUBE, OUTER 2 (Ref #9)
9
Part #2CR-23136-10
. CYLINDER COMP., FRONT FORK (Ref #10)
10
Part #B67-23170-00
. NUT (Ref #11)
11
Part #3LC-23357-00
. SPRING, FRONT FORK (Ref #12)
12
Part #B67-23141-00
. SPACER (Ref #13)
13
Part #2CR-23118-00
. GUIDE, SPRING (Ref #14)
14
Part #2CR-23117-00
. BOLT, CAP (Ref #15)
15
Part #2CR-23111-10
. . O-RING (Ref #16)
16
Part #39P-23147-00
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91314-08040
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91314-08040
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91314-08040
Bolt, Hexagon Socket Head (Ref #17)
17
Part #91314-08040
Front Fork Assy (R.h) (Ref #18)
18
Part #B67-23103-10
. INNER TUBE COMP.2 (Ref #19)
19
Part #2CR-23120-00
UNDER BRACKET COMP. (Ref #35)
35
Part #B67-23340-00
