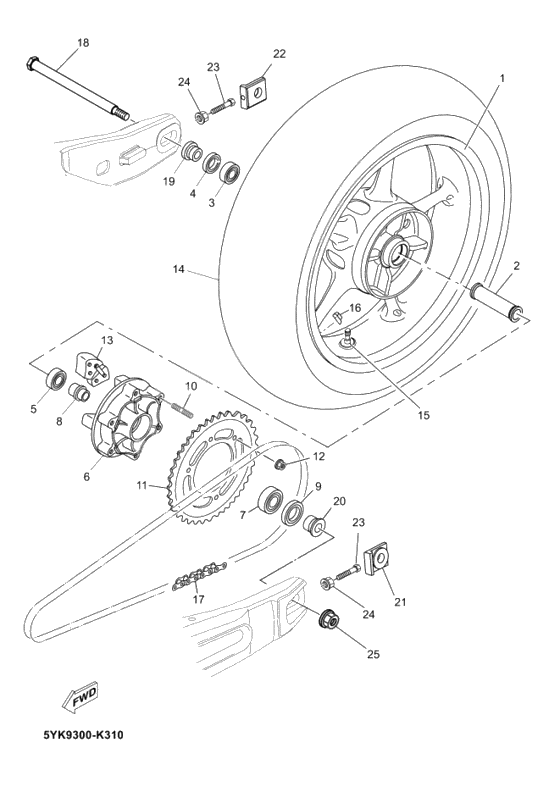

Rear wheel complete assy
Rear wheel complete assy
Cast Wheel, Rear (Ref #1)
1
Part #5YK-F5338-00-P0
Шайба, подшипник (Ref #2)
2
Part #5YK-F5317-00-00
BEARING (Ref #3)
3
Part #93306-30317-00
Oil seal (Ref #4)
4
Part #93102-25044-00
BEARING (Ref #5)
5
Part #933-06203-48-00
Clutch, Hub (Ref #6)
6
Part #5VK-25366-00-00
Подшипник шариковый (Ref #7)
7
Part #933-06304-37-00
Collar, Wheel (Ref #8)
8
Part #1VJ-25377-00-00
Oil seal (Ref #9)
9
Part #931-06300-29-00
Шпилька (Ref #10)
10
Part #90116-10485-00
Звездочка, ведущая (47Т) (Ref #11)
11
Part #5YK-F5447-00-00
Nut, U Flange (Ref #12)
12
Part #956-07102-00-00
DAMPER (Ref #13)
13
Part #5Y1-25364-00-00
Valve, Rim (Tr413) (Ref #15)
15
Part #93900-00030-00
Балансир колеса (Ref #16)
16
Part #5YK-F5398-00-00
Цепь (Ref #17)
17
Part #9456X-04112-00
Ось колеса (Ref #18)
18
Part #3AJ-25381-01-00
COLLAR (Ref #19)
19
Part #90387-170X9-00
Collar, Wheel (Ref #20)
20
Part #5YK-F5383-00-00
Натяжитель цепи 1 (Ref #21)
21
Part #5YK-F5388-00-00
Натяжитель цепи 2 (Ref #22)
22
Part #5YK-F5389-00-00
Nut, flange (Ref #23)
23
Part #90179-08491-00
Nut, flange (Ref #23)
23
Part #90179-08491-00
Nut, flange (Ref #23)
23
Part #90179-08491-00
Nut, flange (Ref #23)
23
Part #90179-08491-00
Bolt (L=55 P=1.25) (Ref #24)
24
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #24)
24
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #24)
24
Part #90101-08777-00
Bolt (L=55 P=1.25) (Ref #24)
24
Part #90101-08777-00
Nut, U Flange (Ref #25)
25
Part #95604-16200-00
