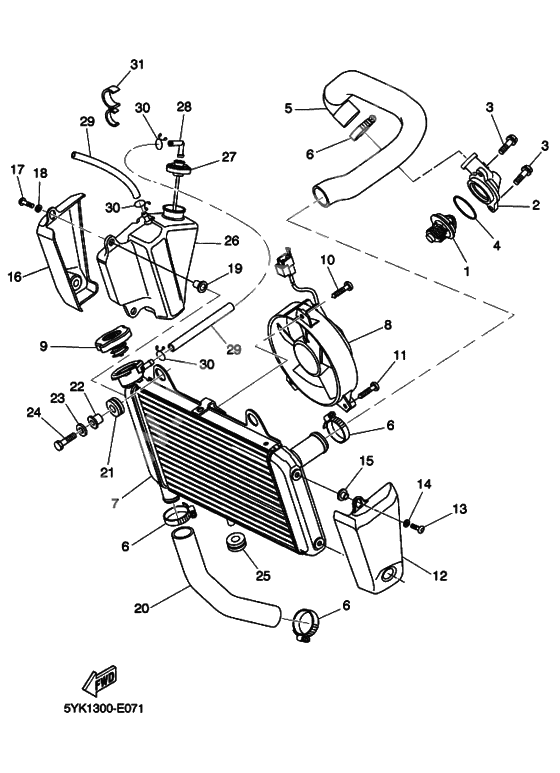

Radiator & hose
Radiator & hose
Thermostat assy (Ref #1)
1
Part #5VK-12410-00-00
COVER, THERMOSTAT (Ref #2)
2
Part #5VK-E2413-10-00
BOLT (Ref #3)
3
Part #950-27060-20-00
BOLT (Ref #3)
3
Part #950-27060-20-00
BOLT (Ref #3)
3
Part #950-27060-20-00
BOLT (Ref #3)
3
Part #950-27060-20-00
Washer, Needle Valve (Ref #4)
4
Part #93210-41X00-00
Hose 3 (Ref #5)
5
Part #5YK-E2578-00-00
Radiator comp (Ref #7)
7
Part #5YK-E2461-00-00
. フアン (Ref #8)
8
Part #5VK-E2405-00-00
Стакан карбюратора (Ref #9)
9
Part #5VK-E2462-00-00
Tapping screw (Ref #10)
10
Part #90169-05X01-00
Radiator Cover Assy1 (Ref #12)
12
Part #5YK-E240J-00-00
BOLT (Ref #13)
13
Part #92014-06016-00
Washer, Plate (Ref #14)
14
Part #9290L-06600-00
COLLAR (Ref #15)
15
Part #90387-06X30-00
Radiator Cover Assy 2 (Ref #16)
16
Part #5YK-E240K-00-00
BOLT (Ref #17)
17
Part #92014-06020-00
COLLAR (Ref #19)
19
Part #90387-06X29-00
Hose 4 (Ref #20)
20
Part #5YK-E2579-00-00
GROMMET (Ref #21)
21
Part #90480-18276-00
COLLAR (Ref #22)
22
Part #90387-068R3-00
Washer, Plate (Ref #23)
23
Part #92907-06600-00
BOLT (Ref #24)
24
Part #97017-06020-00
GROMMET (Ref #25)
25
Part #90480-15363-00
Tank, Recovery (Ref #26)
26
Part #5YK-F1871-00-00
Крышка (Ref #27)
27
Part #5VK-21875-00-00
Колено (Ref #28)
28
Part #26H-21828-00-00
HOSE (Ref #29)
29
Part #90445-08X02-00
HOSE (Ref #29)
29
Part #90445-08X02-00
HOSE (Ref #29)
29
Part #90445-08X02-00
HOSE (Ref #29)
29
Part #90445-08X02-00
CLAMP (Ref #31)
31
Part #90464-13M34-00
-
25VK-E2413-00-00
COVER, THERMOSTAT
1Replaced by 5VK-E2413-10-00 Доступно: Нет в наличии
-
390105-06X06-00
Screw, With Washer
2Replaced by 950-27060-20-00 Доступно: Нет в наличии
