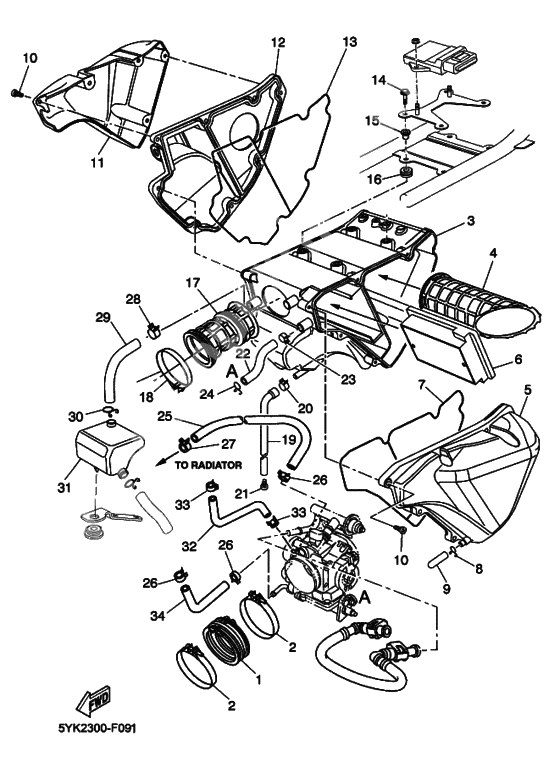

Intake
Intake
Соединение карбюратора 1 (Ref #1)
1
Part #5VK-E3586-10-00
Зажим шланга (Ref #2)
2
Part #90450-72003-00
Зажим шланга (Ref #2)
2
Part #90450-72003-00
Зажим шланга (Ref #2)
2
Part #90450-72003-00
Зажим шланга (Ref #2)
2
Part #90450-72003-00
Case, Air Cleaner 1 (Ref #3)
3
Part #5YK-E4411-00-00
Канал (Ref #4)
4
Part #5YK-E4437-00-00
Крышка корпуса 2 (Ref #5)
5
Part #5YK-E441E-00-00
Фильтр воздушный (Ref #6)
6
Part #5VK-E4451-00-00
Валик (Ref #7)
7
Part #5YK-E4452-00-00
Хомут (Ref #8)
8
Part #904-67128-08-00
Трубка, дренаж (Ref #9)
9
Part #5LW-E443E-00-00
Screw, Pan Head (Ref #10)
10
Part #9770M-50030-00
Screw, Pan Head (Ref #10)
10
Part #9770M-50030-00
Screw, Pan Head (Ref #10)
10
Part #9770M-50030-00
Screw, Pan Head (Ref #10)
10
Part #9770M-50030-00
Стакан очистителя (Ref #11)
11
Part #5YK-E4422-00-00
Крышка корпуса 1 (Ref #12)
12
Part #5YK-E441A-00-00
Валик (Ref #13)
13
Part #5YK-E4457-00-00
BOLT (Ref #14)
14
Part #9581M-06020-00
COLLAR (Ref #15)
15
Part #90387-07037-00
GROMMET (Ref #16)
16
Part #90480-18276-00
Соединение воздушного очистителя 1 (Ref #17)
17
Part #5YK-E4453-00-00
Зажим шланга (Ref #18)
18
Part #90450-59005-00
Трубка, дренаж (Ref #19)
19
Part #5VK-E443E-00-00
CLIP (Ref #20)
20
Part #90467-12085-00
PLUG (Ref #21)
21
Part #90338-08801-00
Hose 1 (Ref #22)
22
Part #5VK-E3545-10-00
Хомут (Ref #23)
23
Part #90467-17128-00
CLIP (Ref #24)
24
Part #90467-170A2-00
Hose, 4 (Ref #25)
25
Part #5YK-E244G-00-00
CLIP (Ref #28)
28
Part #90467-17801-00
Трубка, сапун 2 (Ref #29)
29
Part #5YK-E1167-00-00
CLIP (Ref #30)
30
Part #90467-14800-00
BREATHER (Ref #31)
31
Part #5YK-E5371-00-00
Hose, Vacuum Sensing 1 (Ref #32)
32
Part #5YK-13542-00-00
CLIP (Ref #33)
33
Part #90467-07138-00
CLIP (Ref #33)
33
Part #90467-07138-00
CLIP (Ref #33)
33
Part #90467-07138-00
CLIP (Ref #33)
33
Part #90467-07138-00
Hose 1 (Ref #34)
34
Part #5YK-E243A-00-00
