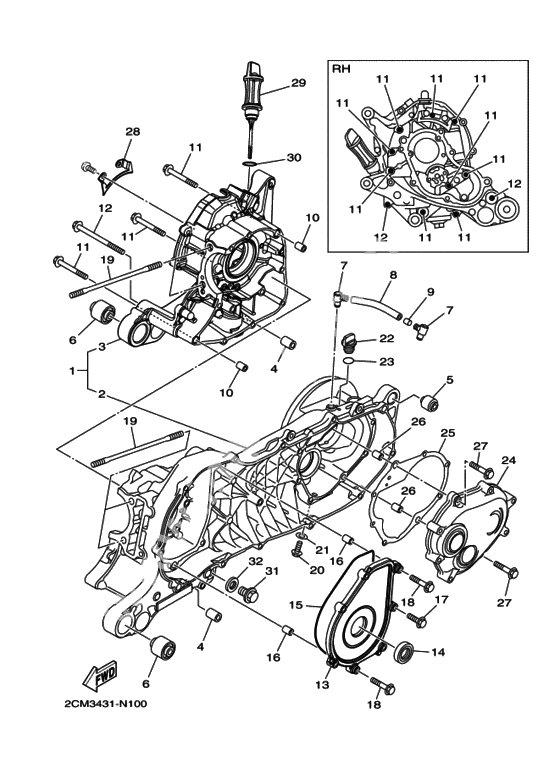

Картер двигателя
Картер двигателя
CRANKCASE ASSY (Ref #1)
1
Part #2CM-E5150-00-00
Crankcase 1 (Ref #2)
2
Part #2CM-E5111-00-00
Crankcase 2 (Ref #3)
3
Part #1PN-E5121-01-00
Bush (Ref #4)
4
Part #54S-F7121-00-00
Bush (Ref #4)
4
Part #54S-F7121-00-00
Bush (Ref #4)
4
Part #54S-F7121-00-00
Bush (Ref #4)
4
Part #54S-F7121-00-00
Bush, Rear Shock Absorber (Ref #5)
5
Part #4D1-F2216-00-00
DAMPER (Ref #6)
6
Part #90388-10809-00
DAMPER (Ref #6)
6
Part #90388-10809-00
DAMPER (Ref #6)
6
Part #90388-10809-00
DAMPER (Ref #6)
6
Part #90388-10809-00
Breather (Ref #7)
7
Part #5MY-E5371-00-00
Breather (Ref #7)
7
Part #5MY-E5371-00-00
Breather (Ref #7)
7
Part #5MY-E5371-00-00
Breather (Ref #7)
7
Part #5MY-E5371-00-00
Pipe, Breather (Ref #8)
8
Part #44S-E5373-00-00
Element 2 (Ref #9)
9
Part #4D0-E5408-00-00
Pin, Dowel (Ref #10)
10
Part #99530-10114-00
Pin, Dowel (Ref #10)
10
Part #99530-10114-00
Pin, Dowel (Ref #10)
10
Part #99530-10114-00
Pin, Dowel (Ref #10)
10
Part #99530-10114-00
Cover 2 (Ref #13)
13
Part #33S-E5423-00-00
Oil Seal (Ref #14)
14
Part #93102-25824-00
O-Ring (Ref #15)
15
Part #93211-44800-00
BOLT (Ref #17)
17
Part #95022-06025-00
BOLT (Ref #18)
18
Part #95022-06035-00
BOLT (Ref #18)
18
Part #95022-06035-00
BOLT (Ref #18)
18
Part #95022-06035-00
BOLT (Ref #18)
18
Part #95022-06035-00
Bolt, Stud (Ref #19)
19
Part #90116-08843-00
Bolt, Stud (Ref #19)
19
Part #90116-08843-00
Bolt, Stud (Ref #19)
19
Part #90116-08843-00
Bolt, Stud (Ref #19)
19
Part #90116-08843-00
BOLT (Ref #20)
20
Part #901-0508X-15-00
Washer, Needle Valve (Ref #20)
20
Part #90201-08087-00
Plug, Oil (Ref #22)
22
Part #5VV-E5363-00-00
O-Ring (Ref #23)
23
Part #93210-14807-00
Cover, Crankcase 2 (Ref #24)
24
Part #2CM-E5421-00-00
Gasket, Crankcase Cover 2 (Ref #25)
25
Part #2CM-E5461-00-00
Plate (Ref #28)
28
Part #54S-E5113-00-00
Plug, Oil Level (Ref #29)
29
Part #1PN-E5362-00-00
O-Ring (Ref #30)
30
Part #5VV-E3769-00-00
Пробка (Ref #31)
31
Part #90340-12806-00
Прокладка пробки (Ref #32)
32
Part #4YS-E1198-00-00
