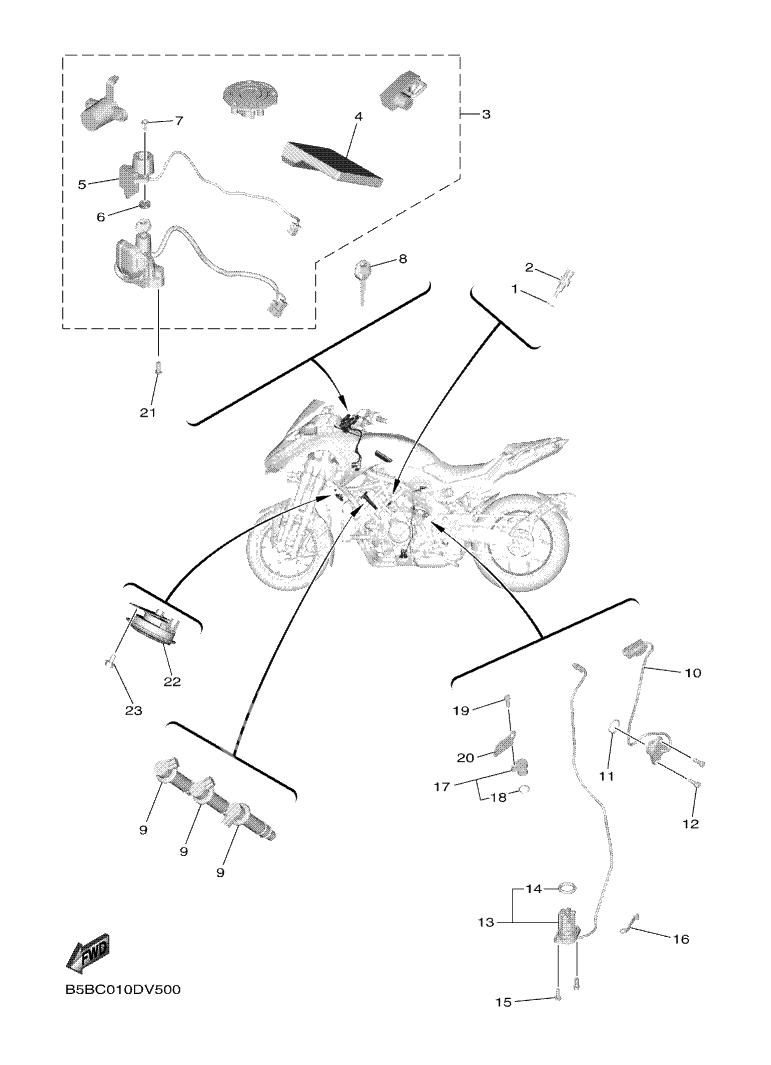

Electrical 2
Electrical 2
GASKET (Ref #1)
1
Part #90430-10004
サーモユニツト (Ref #2)
2
Part #4P9-83591-00
Main Sw. Immobilizer Kit (Ref #3)
3
Part #BD5-W8250-11
. ENGINE CONTROL UNIT ASSY (Ref #4)
4
Part #BD5-8591A-30
. IMMOBILIZER. UNIT COMP. (Ref #5)
5
Part #BD5-8255P-01
. SPACER (Ref #6)
6
Part #BD5-81661-00
. SCREW (Ref #7)
7
Part #1XC-82113-00
BLANK KEY (Ref #8)
8
Part #5SL-82511-08
NEUTRAL SWITCH ASSY (Ref #10)
10
Part #BD5-82540-00
O-RING (Ref #11)
11
Part #93210-21001
Bolt, Hexagon Socket Head (Ref #12)
12
Part #90110-05067
Oil Level Gauge Assy (Ref #13)
13
Part #5S7-85720-00
. O-RING (Ref #14)
14
Part #5VY-8A8E0-00
Bolt, Flange Deep Recess (Ref #15)
15
Part #95E32-06016
CLAMP (Ref #16)
16
Part #90465-08053
Plug, Blind (Ref #17)
17
Part #3P6-15399-00
O-RING (Ref #18)
18
Part #93210-15566
Bolt, Hexagon Socket Head (Ref #19)
19
Part #90110-06161
Plate (Ref #20)
20
Part #BD5-15113-00
BOLT (Ref #21)
21
Part #90109-08195
Horn (Ref #22)
22
Part #BD5-83371-00
Bolt, Flange (Ref #23)
23
Part #95807-06010
