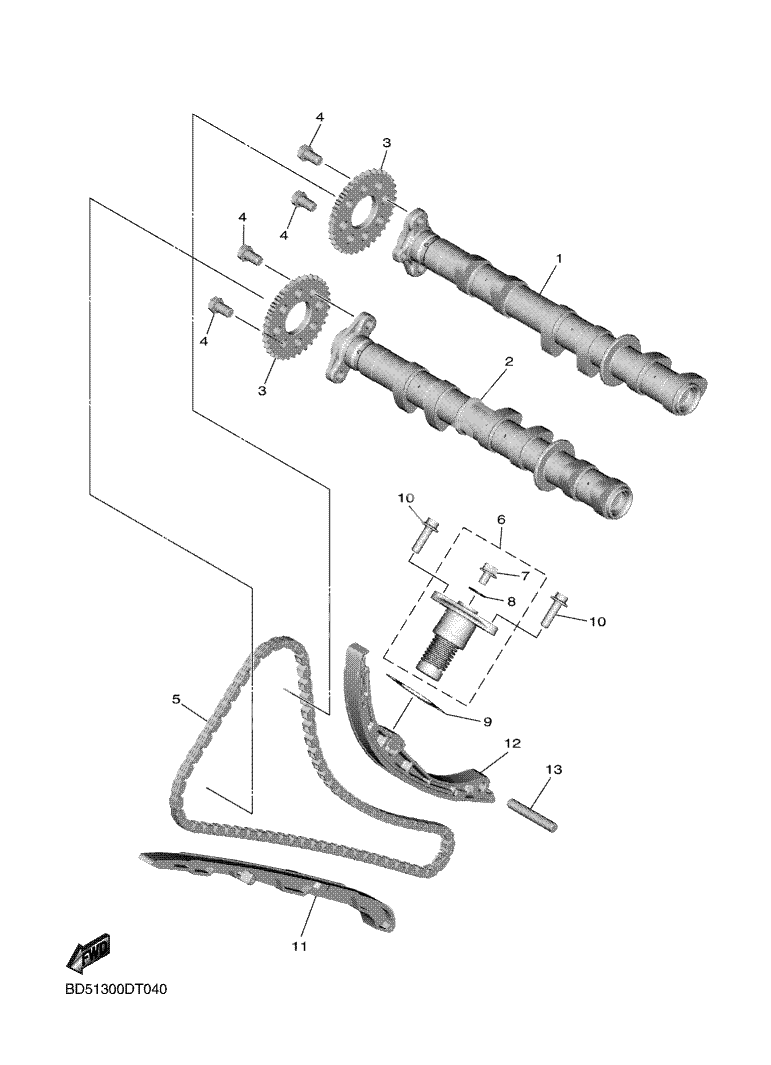

CAMSHAFT
CAMSHAFT
CAMSHAFT ASSY 1 (Ref #1)
1
Part #1RC-12170-00
CAMSHAFT ASSY 2 (Ref #2)
2
Part #1RC-12180-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
スプロケツト,カムチエーン (Ref #3)
3
Part #20S-12176-00
CHAIN (Ref #5)
5
Part #94591-57128
テンシヨナアセンブリ,カムチエーン (Ref #6)
6
Part #B90-12210-00
. BOLT (Ref #7)
7
Part #5EL-12228-00
. GASKET (Ref #8)
8
Part #5SL-12214-00
Gasket, Tensioner Case (Ref #9)
9
Part #1WS-12213-00
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06395
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06395
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06395
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06395
Damper, Chain 1 (Ref #11)
11
Part #1RC-12251-00
チエーンダンパアセンブリ (Ref #12)
12
Part #1RC-12250-01
Pin, Dowel (Ref #13)
13
Part #93607-44002
