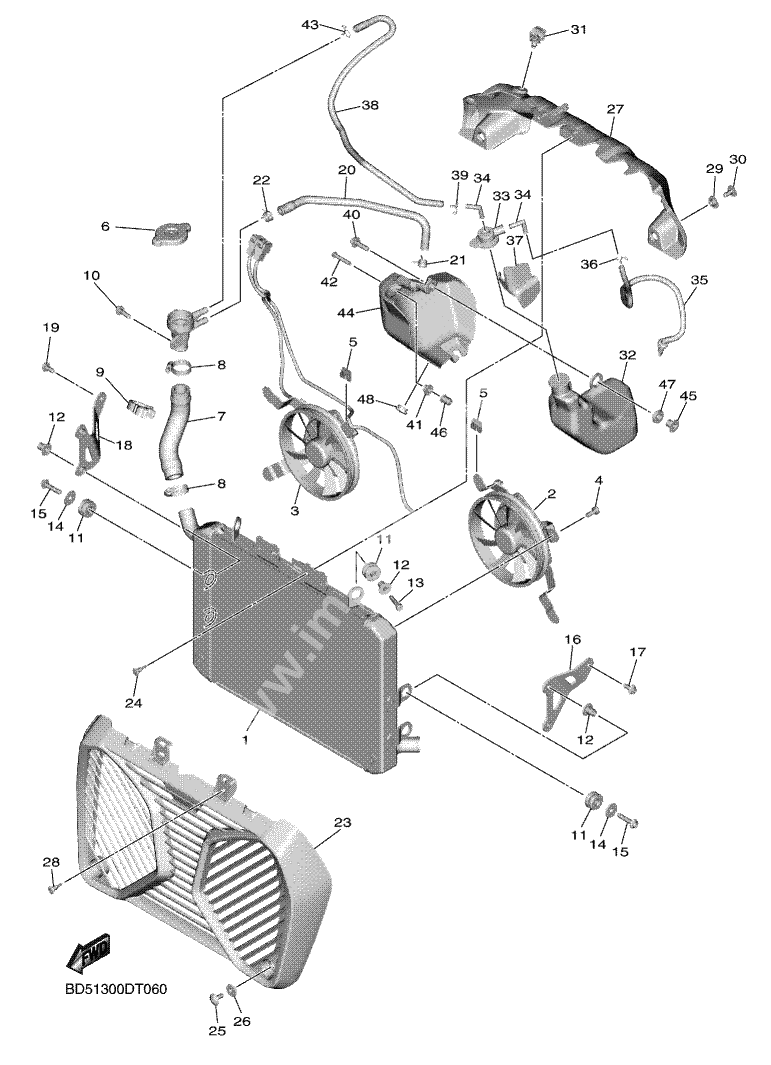

RADIATOR AND HOSE
RADIATOR AND HOSE
Radiator comp (Ref #1)
1
Part #BD5-12461-00
Blower Assy (Ref #2)
2
Part #BD5-12405-00
Blower Assy (Ref #3)
3
Part #BD5-12405-10
BOLT, BLOWER HOLDING (Ref #4)
4
Part #3D8-12675-00
PLATE (Ref #5)
5
Part #1AA-12535-00
PLATE (Ref #5)
5
Part #1AA-12535-00
PLATE (Ref #5)
5
Part #1AA-12535-00
PLATE (Ref #5)
5
Part #1AA-12535-00
. キヤツプ, ラジエタ (Ref #6)
6
Part #22W-12462-00
Hose 6 (Ref #7)
7
Part #BD5-12589-00
Hose Clamp Assy (Ref #8)
8
Part #90450-32003
Hose Clamp Assy (Ref #8)
8
Part #90450-32003
Hose Clamp Assy (Ref #8)
8
Part #90450-32003
Hose Clamp Assy (Ref #8)
8
Part #90450-32003
Clamp (Ref #9)
9
Part #90464-23004
Bolt, Hexagon Socket Head (Ref #10)
10
Part #90110-06048
Bolt, Hexagon Socket Head (Ref #13)
13
Part #90110-06178
Washer, Plate (Ref #14)
14
Part #90201-06071
Washer, Plate (Ref #14)
14
Part #90201-06071
Washer, Plate (Ref #14)
14
Part #90201-06071
Washer, Plate (Ref #14)
14
Part #90201-06071
Bolt, Hexagon Socket Head (Ref #15)
15
Part #90110-06415
Bolt, Hexagon Socket Head (Ref #15)
15
Part #90110-06415
Bolt, Hexagon Socket Head (Ref #15)
15
Part #90110-06415
Bolt, Hexagon Socket Head (Ref #15)
15
Part #90110-06415
Bracket, radiator (Ref #16)
16
Part #BD5-2142K-00
Bolt, Hexagon Socket Head (Ref #17)
17
Part #90110-06428
Bracket, Radiator 2 (Ref #18)
18
Part #BD5-2142L-00
Hose 1 (Ref #20)
20
Part #BD5-12576-00
CLIP (Ref #21)
21
Part #90467-10039
Clip (Ref #22)
22
Part #90467-13083
Grill, Air Intake 1 (Ref #23)
23
Part #BD5-2837N-00
RIVET (Ref #24)
24
Part #90269-06001
Bolt,hex. Socket Button (Ref #25)
25
Part #90111-06161
COLLAR (Ref #26)
26
Part #90387-06066
Cover, radiator (Ref #27)
27
Part #BD5-12467-00
BOLT (Ref #30)
30
Part #90111-06151
Clamp (Ref #31)
31
Part #90464-12018
Tank, Recovery (Ref #32)
32
Part #1RC-21871-00
CAP (Ref #33)
33
Part #1RC-21875-00
Elbow (Ref #34)
34
Part #1RC-21828-00
Elbow (Ref #34)
34
Part #1RC-21828-00
Elbow (Ref #34)
34
Part #1RC-21828-00
Elbow (Ref #34)
34
Part #1RC-21828-00
PIPE, BREATHER (Ref #35)
35
Part #1RC-21826-00
CLIP (Ref #36)
36
Part #90467-08075
PROTECTOR 1 (Ref #37)
37
Part #1RC-22825-00
Pipe 1 (Ref #38)
38
Part #BD5-21816-00
Clip (Ref #39)
39
Part #90467-08017
Bolt, Hexagon Socket Head (Ref #40)
40
Part #90110-06233
Collar (Ref #41)
41
Part #1RC-21748-00
Bolt, Button Head (Ref #42)
42
Part #92012-05030
CLIP (Ref #43)
43
Part #90467-10041
Cover (Ref #44)
44
Part #1RC-2172W-00
Collar (Ref #45)
45
Part #90387-06285
NUT (Ref #46)
46
Part #90179-05523
Collar (Ref #47)
47
Part #1RC-21749-00
Grommet (Ref #48)
48
Part #90480-13203
