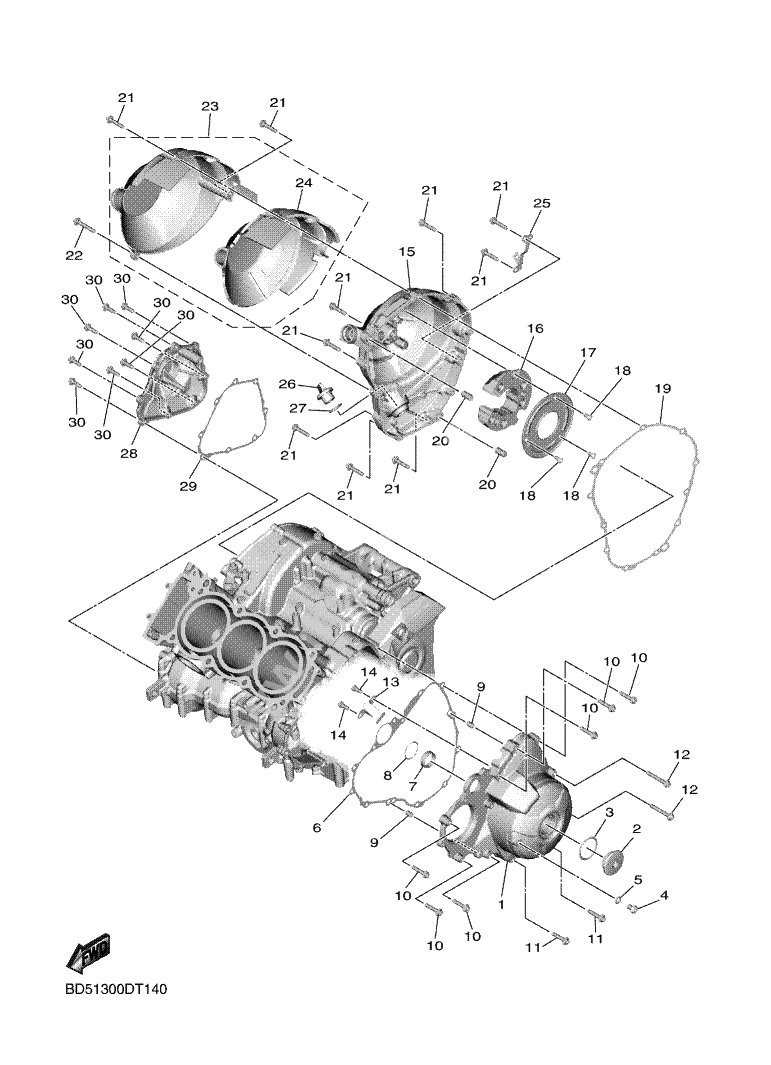

CRANK CASE COVER
CRANK CASE COVER
Cover, Crankcase 1 (Ref #1)
1
Part #1RC-15411-01
PLUG, STRAIGHT SCREW (Ref #2)
2
Part #90340-36003
O-Ring (Ref #3)
3
Part #93210-357A3
Bolt, Button Head (Ref #4)
4
Part #92017-08012
GASKET (Ref #5)
5
Part #90430-08143
Gasket, Crankcase Cover 1 (Ref #6)
6
Part #BD5-15451-00
Pipe, Water (Ref #7)
7
Part #1RC-12564-00
O-Ring (Ref #8)
8
Part #93210-28543
Pin, Dowel (Ref #9)
9
Part #99530-08012
Pin, Dowel (Ref #9)
9
Part #99530-08012
Pin, Dowel (Ref #9)
9
Part #99530-08012
Pin, Dowel (Ref #9)
9
Part #99530-08012
Bolt, Hexagon Socket Head (Ref #11)
11
Part #90110-06389
Bolt, Hexagon Socket Head (Ref #11)
11
Part #90110-06389
Bolt, Hexagon Socket Head (Ref #11)
11
Part #90110-06389
Bolt, Hexagon Socket Head (Ref #11)
11
Part #90110-06389
Bolt, Hexagon Socket Head (Ref #12)
12
Part #90110-06394
Bolt, Hexagon Socket Head (Ref #12)
12
Part #90110-06394
Bolt, Hexagon Socket Head (Ref #12)
12
Part #90110-06394
Bolt, Hexagon Socket Head (Ref #12)
12
Part #90110-06394
Clamp 2 (Ref #13)
13
Part #1RC-15484-00
Bolt, Hexagon Socket Head (Ref #14)
14
Part #90110-06168
Bolt, Hexagon Socket Head (Ref #14)
14
Part #90110-06168
Bolt, Hexagon Socket Head (Ref #14)
14
Part #90110-06168
Bolt, Hexagon Socket Head (Ref #14)
14
Part #90110-06168
Cover, Crankcase 2 (Ref #15)
15
Part #1RC-15421-11
DAMPER 1 (Ref #16)
16
Part #B90-15316-00
COVER (Ref #17)
17
Part #B90-15492-00
GASKET, CRANKCASE COVER 2 (Ref #19)
19
Part #1RC-15461-00
Pin, Dowel (Ref #20)
20
Part #93610-20189
Pin, Dowel (Ref #20)
20
Part #93610-20189
Pin, Dowel (Ref #20)
20
Part #93610-20189
Pin, Dowel (Ref #20)
20
Part #93610-20189
Bolt, Hexagon Socket Head (Ref #22)
22
Part #90110-06321
COVER ASSY (Ref #23)
23
Part #BS2-15490-10
. DAMPER 2 (Ref #24)
24
Part #B90-15326-00
Plate (Ref #25)
25
Part #BD5-15191-00
Plug, Oil (Ref #26)
26
Part #5GJ-15363-10
O-RING (Ref #27)
27
Part #93210-19123
Cover, Oil Pump (Ref #28)
28
Part #1RC-15416-10
ガスケツト,オイルポンプカバー 1 (Ref #29)
29
Part #1RC-15456-00
