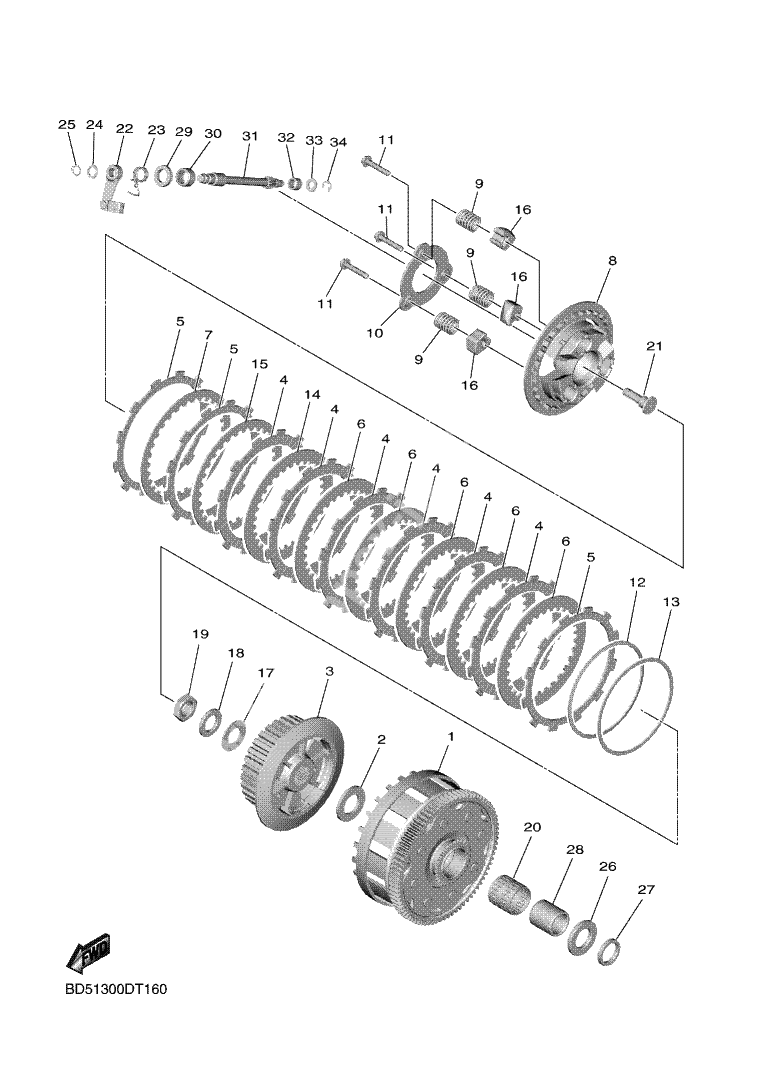

Сцепление
Сцепление
PRIMARY DRIVEN GEAR COMP. (Ref #1)
1
Part #1RC-16150-00
PLATE, THRUST 1 (Ref #2)
2
Part #5VY-16154-00
Boss, Clutch (Ref #3)
3
Part #B90-16371-10
Plate, Clutch 1 (Ref #7)
7
Part #1TD-16324-00
Pressure Plate Assy (Ref #8)
8
Part #B90-16350-10
Plate, Pressure 2 (Ref #10)
10
Part #B90-16352-00
Spring.,cushion (Ref #12)
12
Part #1TD-16383-00
Plate, seat (Ref #13)
13
Part #1TD-16384-00
Plate, Clutch 1 (Ref #14)
14
Part #BR9-16324-00
Plate, Clutch 2 (Ref #14)
14
Part #4B1-16325-00
Washer, Plate (Ref #17)
17
Part #90201-20030
Washer, conical spring (Ref #18)
18
Part #90208-20001
NUT (Ref #19)
19
Part #90179-20011
Bearing (Ref #20)
20
Part #93310-33277
ROD, PUSH 1 (Ref #21)
21
Part #4XV-16356-01
Push Lever Assy (Ref #22)
22
Part #1RC-16340-00
SPRING, TORSION (Ref #23)
23
Part #90508-18051
WASHER, PLATE (Ref #24)
24
Part #90201-10029
Circlip (Ref #25)
25
Part #99009-10400
プレート,スラスト 2 (Ref #26)
26
Part #5VY-16164-00
Plate, Thrust 2 (Ref #27)
27
Part #2C0-16164-00
Spacer 1 (Ref #28)
28
Part #1RC-16181-00
OIL SEAL (Ref #29)
29
Part #93102-15212
. BEARING (Ref #30)
30
Part #93315-21570
Axle, Push Lever (Ref #31)
31
Part #5VY-16382-10
. BEARING (Ref #32)
32
Part #93317-11096
Washer, Plate (Ref #33)
33
Part #92907-08600
Circlip (Ref #34)
34
Part #99001-07600
