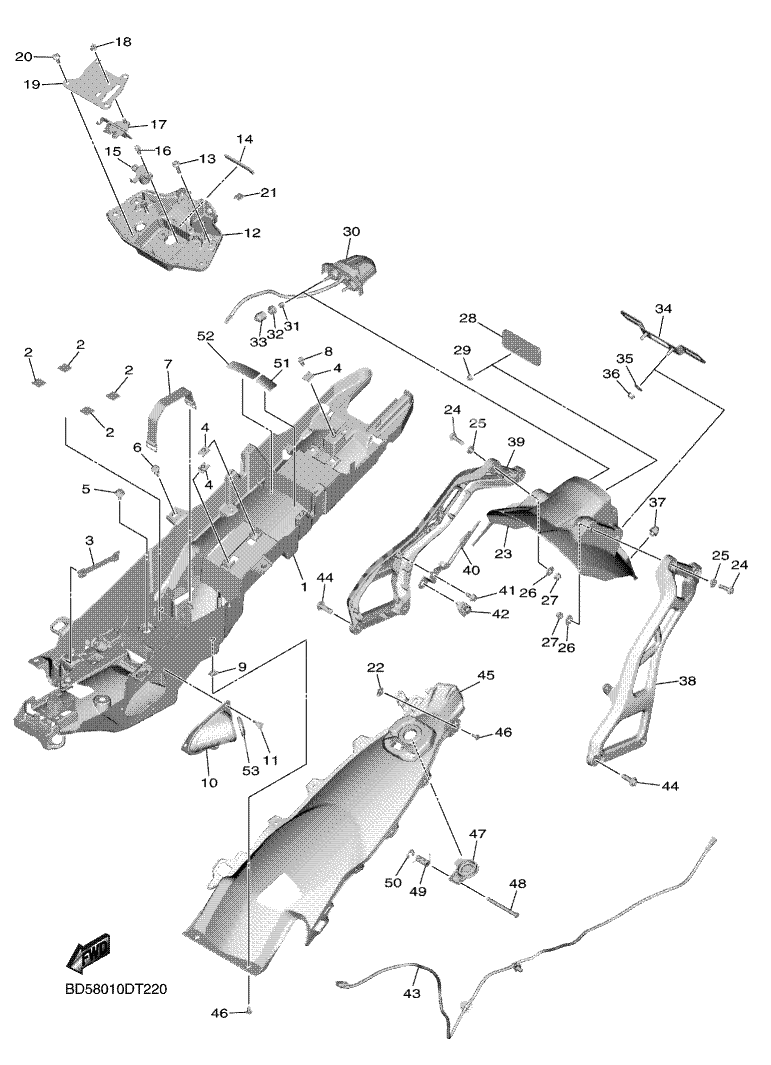

REAR FENDER
REAR FENDER
Box, Battery 1 (Ref #1)
1
Part #BD5-8212B-00
Plate 1 (Ref #3)
3
Part #BD5-2162G-00
Bolt (Ref #5)
5
Part #90109-06202
RIVET (Ref #6)
6
Part #90269-07008
Band, Battery (Ref #7)
7
Part #133-82131-00
Bolt, Flange (Ref #8)
8
Part #95022-06012
Nut, Spring (Ref #9)
9
Part #90183-05042
BOX (Ref #10)
10
Part #BD5-2160E-00
RIVET (Ref #11)
11
Part #90269-06008
BRACKET, TAILLIGHT (Ref #12)
12
Part #BD5-2117E-00
Bolt, Hexagon Socket Head (Ref #13)
13
Part #90110-06172
DAMPER (Ref #14)
14
Part #2C0-2174Y-00
Rotor Set (Ref #15)
15
Part #1RC-W2470-00
Bolt, Flange (Ref #16)
16
Part #95022-06014
Seat Lock Assy (Ref #17)
17
Part #B90-24780-00
NUT, FLANGE (Ref #18)
18
Part #95702-06500
Bracket, seat lock (Ref #19)
19
Part #BD5-2478X-00
Bolt,hex. Socket Button (Ref #20)
20
Part #90111-06059
Nut, Spring (Ref #21)
21
Part #90183-05076
Guard, Mud (Ref #23)
23
Part #BD5-21629-00
BOLT (Ref #24)
24
Part #90109-06015
BOLT (Ref #24)
24
Part #90109-06015
BOLT (Ref #24)
24
Part #90109-06015
BOLT (Ref #24)
24
Part #90109-06015
Collar (Ref #25)
25
Part #90387-06048
Collar (Ref #25)
25
Part #90387-06048
Collar (Ref #25)
25
Part #90387-06048
Collar (Ref #25)
25
Part #90387-06048
Washer, Plate (Ref #26)
26
Part #90201-06057
Washer, Plate (Ref #26)
26
Part #90201-06057
Washer, Plate (Ref #26)
26
Part #90201-06057
Washer, Plate (Ref #26)
26
Part #90201-06057
Nut, Self-Locking (Ref #27)
27
Part #90185-06122
Nut, Self-Locking (Ref #27)
27
Part #90185-06122
Nut, Self-Locking (Ref #27)
27
Part #90185-06122
Nut, Self-Locking (Ref #27)
27
Part #90185-06122
. REAR REFLECTOR ASSY (Ref #28)
28
Part #3Y6-85130-02
Nut, Self-Locking (Ref #29)
29
Part #95602-05200
LICENCE LIGHT UNIT ASSY (Ref #30)
30
Part #B88-84745-00
Collar (Ref #31)
31
Part #90387-05067
GROMMET (Ref #32)
32
Part #90480-11009
WEIGHT (Ref #33)
33
Part #1RC-2622H-00
Bracket (Ref #34)
34
Part #2S3-84703-10
NUT, SELF U-FLANGE (Ref #36)
36
Part #95607-06200
Plug (Ref #37)
37
Part #90338-07014
Stay, Fender 1 (Ref #38)
38
Part #BD5-21613-00
Stay, Fender 2 (Ref #39)
39
Part #BD5-21614-00
Bracket 3 (Ref #40)
40
Part #BD5-2161A-00
Bolt, Flange (Ref #41)
41
Part #90105-06020
Clamp (Ref #42)
42
Part #90464-10008
Wire, Sub-Lead (Ref #43)
43
Part #BD5-82318-00
Bolt, Hexagon Socket Head (Ref #44)
44
Part #90110-08199
Bolt, Hexagon Socket Head (Ref #44)
44
Part #90110-08199
Bolt, Hexagon Socket Head (Ref #44)
44
Part #90110-08199
Bolt, Hexagon Socket Head (Ref #44)
44
Part #90110-08199
Cover, Rear Fender (Ref #45)
45
Part #BD5-21651-00
SCREW, TRUSS HEAD TAPPING (Ref #46)
46
Part #97707-50012
SCREW, TRUSS HEAD TAPPING (Ref #46)
46
Part #97707-50012
SCREW, TRUSS HEAD TAPPING (Ref #46)
46
Part #97707-50012
SCREW, TRUSS HEAD TAPPING (Ref #46)
46
Part #97707-50012
CAP, ROTOR (Ref #47)
47
Part #1RC-2465B-00
Pin (Ref #48)
48
Part #90249-03002
Spring, Torsion (Ref #49)
49
Part #90508-09007
Circlip (Ref #50)
50
Part #93430-02001
Label, Caution (Ref #51)
51
Part #1WS-24877-C0
LABEL, WARNING CARRIER 1 (Ref #52)
52
Part #1B7-2816J-20
Damper, seat (Ref #53)
53
Part #2BS-24747-00
