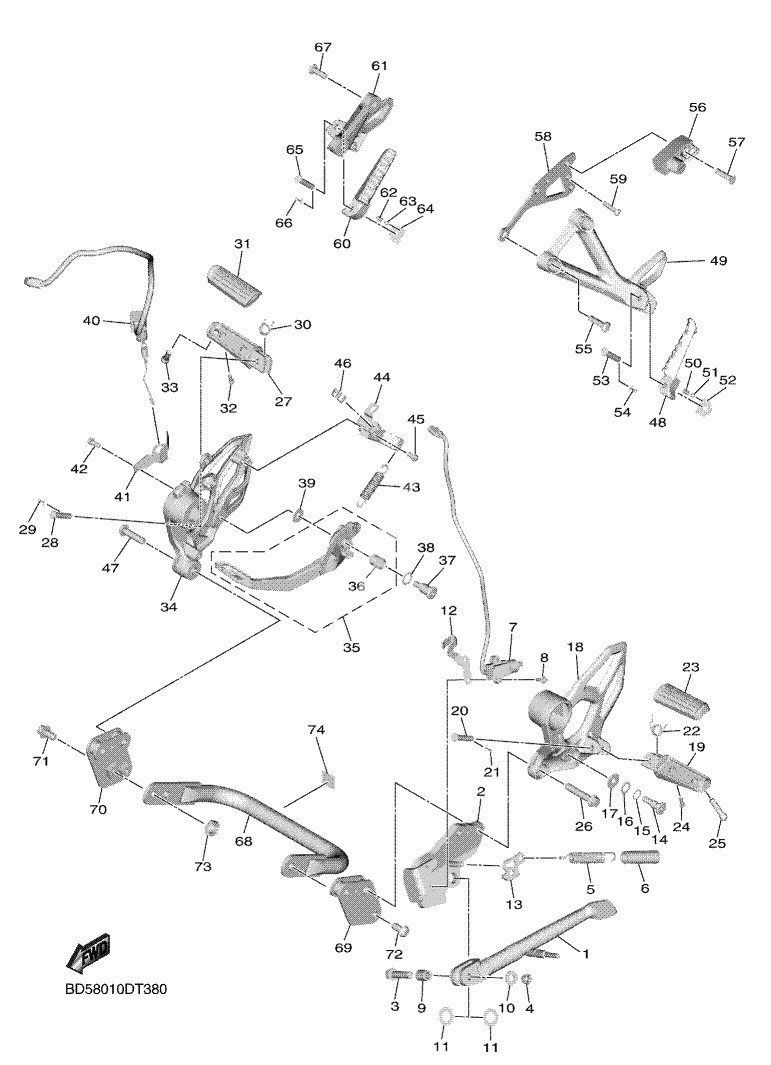

STAND FOOTREST
STAND FOOTREST
Stand, Side (Ref #1)
1
Part #BD5-27311-00
Bracket, Side Stand (Ref #2)
2
Part #BD5-27321-00
Bolt, Flange (Ref #3)
3
Part #90105-10188
Nut, U (Ref #4)
4
Part #95612-10100
Spring, main stand (Ref #5)
5
Part #2S3-27116-00
HOSE (L60) (Ref #6)
6
Part #90445-197J2
SWITCH, SIDE STAND (Ref #7)
7
Part #1RC-82566-50
Bolt, Hexagon Socket Head (Ref #8)
8
Part #90110-05067
COLLAR (Ref #9)
9
Part #90387-10050
WASHER, PLATE (Ref #10)
10
Part #90201-10035
Washer, Plate (Ref #11)
11
Part #90201-17018
Washer, Plate (Ref #11)
11
Part #90201-17018
Washer, Plate (Ref #11)
11
Part #90201-17018
Washer, Plate (Ref #11)
11
Part #90201-17018
Bracket 1 (Ref #12)
12
Part #BD5-27323-00
Link, Side Stand (Ref #13)
13
Part #2S3-27315-00
Bolt (Ref #14)
14
Part #2S3-27217-00
Washer, Wave (Ref #15)
15
Part #90206-12074
Washer, Plate (Ref #16)
16
Part #90201-12013
WASHER, PLATE (Ref #17)
17
Part #90201-080H1
Bracket 2 (Ref #18)
18
Part #BD5-27442-00
FOOTREST 4 (Ref #19)
19
Part #4BH-27451-01
PIN (Ref #20)
20
Part #91701-08040
Pin, Cotter (Ref #21)
21
Part #91401-25015
Spring, Torsion (Ref #22)
22
Part #90508-183B9
Cover, Footrest (Ref #23)
23
Part #BD5-27413-00
Screw, Pan Head (Ref #24)
24
Part #90157-05025
Bolt (Ref #25)
25
Part #90109-08231
Bolt, Flange (Ref #26)
26
Part #90105-10329
FOOTREST 4 (Ref #27)
27
Part #4BH-27461-01
. PIN, COTTER (Ref #29)
29
Part #91402-25015
Spring, Torsion (Ref #30)
30
Part #90508-184B0
Bracket 3 (Ref #34)
34
Part #BD5-27443-00
Pedal, Brake (Ref #35)
35
Part #BD5-27211-00
. BUSH (Ref #36)
36
Part #90386-14171
Bolt (Ref #37)
37
Part #4C8-27434-00
Washer, Wave (Ref #38)
38
Part #90206-14086
Washer, Plate (Ref #39)
39
Part #90201-08103
Stop Switch Assy (Ref #40)
40
Part #BD5-82530-00
Stay, stop switch (Ref #41)
41
Part #BD5-2144G-00
Bolt, Hexagon Socket Head (Ref #42)
42
Part #90110-06398
Spring, Tension (Ref #43)
43
Part #90506-26012
Bracket 1 (Ref #44)
44
Part #BD5-27263-00
Bolt, Flange (Ref #45)
45
Part #95022-06012
Clamp (Ref #46)
46
Part #90464-11015
Bolt, Flange (Ref #47)
47
Part #90105-10246
Footrest, Rear 1 (Ref #48)
48
Part #B5C-27431-00
Bracket 4 (Ref #49)
49
Part #BD5-2741L-00
. SPRING, COMPRESSION (Ref #50)
50
Part #90501-12743
BALL (Ref #51)
51
Part #93501-04011
Washer, special (Ref #52)
52
Part #5VX-27437-00
Pin, Clevis (Ref #53)
53
Part #91702-08040
SCREW (Ref #55)
55
Part #90149-08061
ヘルメツトハンガーアセンブリ (Ref #56)
56
Part #4R8-21308-01
Screw, Countersunk (Ref #57)
57
Part #90151-06018
Holder (Ref #58)
58
Part #BD5-27911-10
Bolt, Button Head (Ref #59)
59
Part #92017-06030
Footrest, Rear 2 (Ref #60)
60
Part #B5C-27441-00
Bracket 5 (Ref #61)
61
Part #BD5-2742L-00
BOLT (Ref #67)
67
Part #90111-08083
TUBE, CROSS 1 (Ref #68)
68
Part #BD5-27133-00
Bracket, Adapter 1 (Ref #69)
69
Part #BD5-274A3-00
Bracket,adapter 2 (Ref #70)
70
Part #BD5-274A4-00
Bolt, Flange (Ref #71)
71
Part #95817-10025
Bolt, Button Head (Ref #72)
72
Part #92017-10025
Nut, Self-Locking (Ref #73)
73
Part #90185-10170
LABEL, NOTICE 1 (Ref #74)
74
Part #BD5-2815P-00
