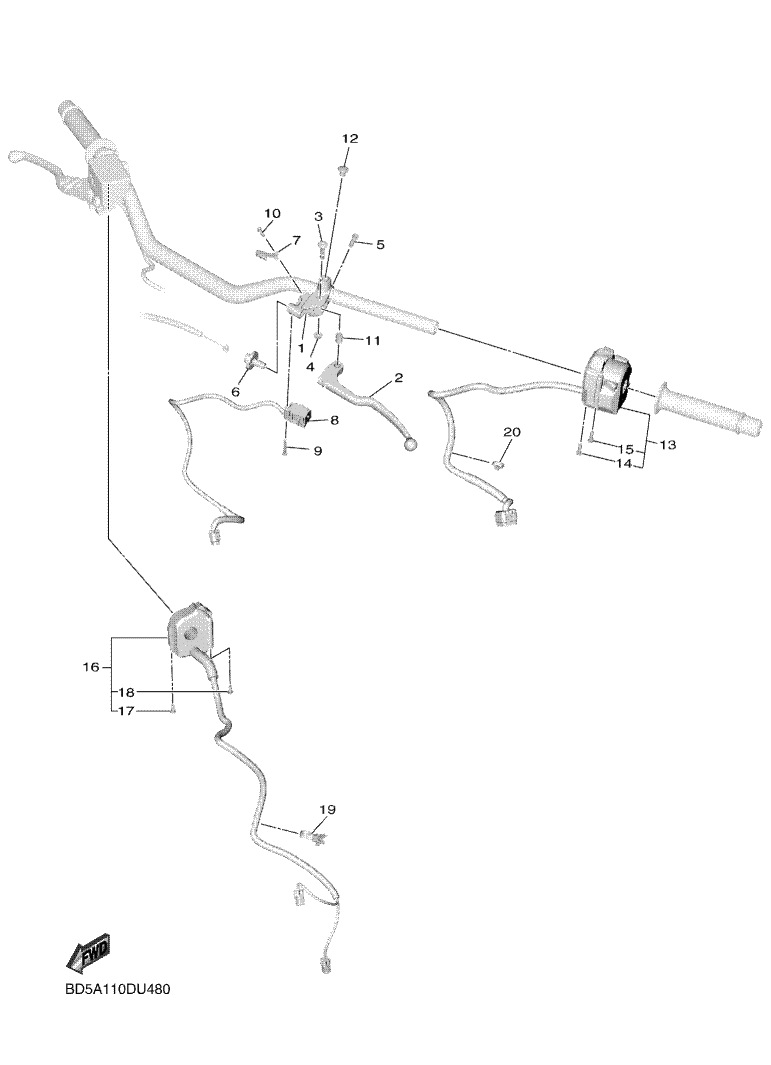

HANDLE SWITCH AND LEVER
HANDLE SWITCH AND LEVER
Holder, Lever 1 (Ref #1)
1
Part #B67-82911-00
Lever 1 (Ref #2)
2
Part #B67-83912-00
BOLT, LEVER (Ref #3)
3
Part #2C0-83945-00
NUT, SELF U-FLANGE (Ref #4)
4
Part #95607-06200
Bolt, Flange (Ref #5)
5
Part #95027-06020
BOLT, CABLE ADJUSTING (Ref #6)
6
Part #5LV-83951-00
PLATE, SPRING (Ref #7)
7
Part #4XV-83929-00
Switch (Ref #8)
8
Part #BD5-82917-01
Screw, With Washer (Ref #9)
9
Part #90159-04011
Screw, Pan Head (Ref #10)
10
Part #98507-04010
COLLAR, LEVER 1 (Ref #11)
11
Part #5JJ-83913-00
PLUG (Ref #12)
12
Part #90338-09012
Switch, Handle 7 (Ref #13)
13
Part #BD5-83954-01
. SCREW, PAN HEAD (Ref #14)
14
Part #98507-05040
. SCREW, PAN HEAD (Ref #15)
15
Part #98507-05055
Switch, Handle 3 (Ref #16)
16
Part #BD5-83963-01
. SCREW, PAN HEAD (Ref #17)
17
Part #98507-05035
. SCREW, PAN HEAD (Ref #18)
18
Part #98507-05045
Clamp (Ref #19)
19
Part #90464-12089
CLAMP (Ref #20)
20
Part #90464-16061
