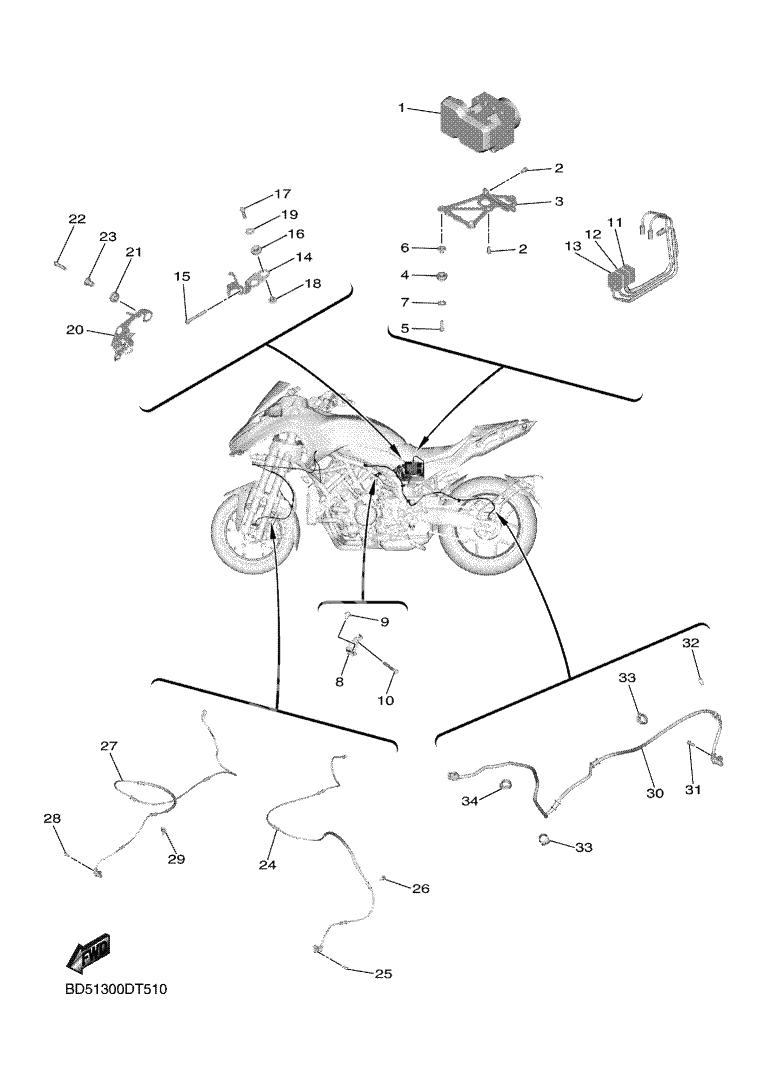

ELECTRICAL
ELECTRICAL
CLAMP (Ref #1)
1
Part #90464-15195
Clamp (Ref #2)
2
Part #90464-14010
WIRE, SUB LEAD (Ref #3)
3
Part #1RC-82509-00
Battery assy (Ref #4)
4
Part #5YT-82100-00
Starter Relay Assy (Rc19-089B) (Ref #5)
5
Part #1XC-81940-00
. FUSE (30A-BL) (Ref #6)
6
Part #1AE-82151-00
Cover, Lead Wire (Ref #7)
7
Part #5SL-82119-30
Bolt, Flange (Ref #8)
8
Part #95022-06008
Wire Harness Assy (Ref #9)
9
Part #BD5-82590-30
Wire Harness Assy (Ref #9)
9
Part #BD5-82590-30
Wire Harness Assy (Ref #9)
9
Part #BD5-82590-30
Wire Harness Assy (Ref #9)
9
Part #BD5-82590-30
. FUSE (50A) (Ref #10)
10
Part #5JW-82151-10
. FUSE (1A-BL) (Ref #11)
11
Part #1MC-82151-00
. FUSE (1A-BL) (Ref #11)
11
Part #1MC-82151-00
. FUSE (1A-BL) (Ref #11)
11
Part #1MC-82151-00
. FUSE (1A-BL) (Ref #11)
11
Part #1MC-82151-00
. FUSE (15A-BL) (Ref #15)
15
Part #5JJ-82151-10
. FUSE (15A-BL) (Ref #15)
15
Part #5JJ-82151-10
. FUSE (15A-BL) (Ref #15)
15
Part #5JJ-82151-10
. FUSE (15A-BL) (Ref #15)
15
Part #5JJ-82151-10
. FUSE (25A-BL) (Ref #17)
17
Part #5JJ-82151-70
. FUSE (25A-BL) (Ref #17)
17
Part #5JJ-82151-70
. FUSE (25A-BL) (Ref #17)
17
Part #5JJ-82151-70
. FUSE (25A-BL) (Ref #17)
17
Part #5JJ-82151-70
. FUSE (20A-BL) (Ref #18)
18
Part #5JJ-82151-20
. FUSE (20A-BL) (Ref #18)
18
Part #5JJ-82151-20
. FUSE (20A-BL) (Ref #18)
18
Part #5JJ-82151-20
. FUSE (20A-BL) (Ref #18)
18
Part #5JJ-82151-20
Wire, Minus Lead (Ref #19)
19
Part #BD5-82116-00
Bolt, Hext. Socket Head (Ref #20)
20
Part #91312-06012
Rectifier & Regulator Assy (Ref #21)
21
Part #1D7-81960-10
Bolt, Flange (Ref #22)
22
Part #95022-06025
RELAY ASSY (5VK-40) (Ref #23)
23
Part #5VK-81950-40
RELAY ASSY (1TP-00) (Ref #24)
24
Part #1TP-81950-00
. HOLDER, RELAY (Ref #25)
25
Part #5EA-81952-00
RELAY ASSY (G8HN-1C4T-DJ-Y52) (Ref #26)
26
Part #5DM-81950-00
SENSOR, LEAN ANGLE (Ref #27)
27
Part #5PS-82576-01
Bolt, Hexagon Socket Head (Ref #28)
28
Part #91312-04025
WASHER, PLATE (Ref #29)
29
Part #90201-04030
TERMINAL COMP. (Ref #30)
30
Part #BD5-8254B-00
Cover, terminal (Ref #31)
31
Part #BD5-81916-00
Sensor, Air Temperature (Ref #32)
32
Part #5YU-85886-00
Screw, Round Tapping (Ref #33)
33
Part #90160-05012
Clamp (Ref #36)
36
Part #90464-20181
CLAMP (Ref #37)
37
Part #90464-13073
CLAMP (Ref #38)
38
Part #90464-12183
CLAMP (Ref #39)
39
Part #90464-16061
