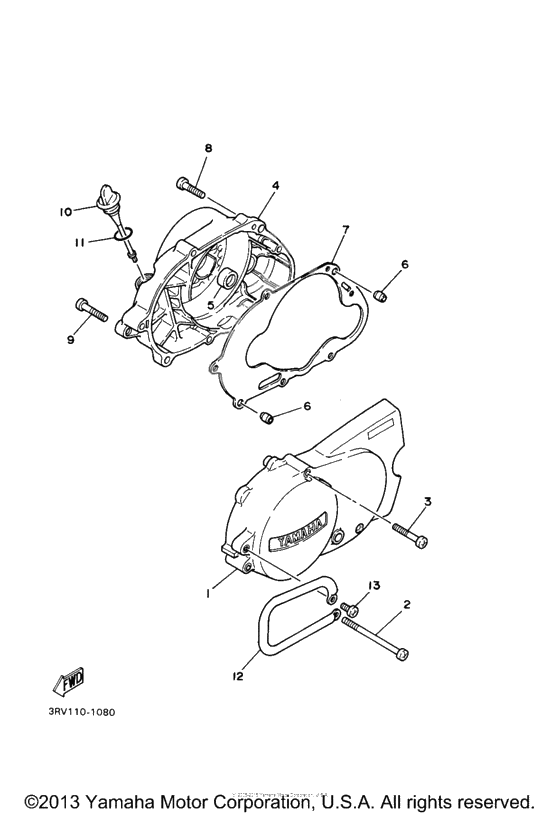

Crankcase cover 1
Crankcase cover 1
Крышка картера 1 (Ref #1)
1
Part #21W-15411-00-00
Screw, Pan Head (Ref #2)
2
Part #98507-06100-00
Screw, Pan Head (Ref #3)
3
Part #98507-06045-00
Крышка картера 2 (Ref #4)
4
Part #5R7-15421-00-00
Oil seal (Ref #5)
5
Part #93104-11053-00
Pin, Dowel (Ref #6)
6
Part #99530-10114-00
Pin, Dowel (Ref #6)
6
Part #99530-10114-00
Pin, Dowel (Ref #6)
6
Part #99530-10114-00
Pin, Dowel (Ref #6)
6
Part #99530-10114-00
Gasket, Crankcase Cover 1 (Ref #7)
7
Part #4AW-15451-00-00
Screw, Pan Head (Ref #8)
8
Part #98507-06035-00
Screw, Pan Head (Ref #9)
9
Part #98507-06040-00
Plug, Oil Level (Ref #10)
10
Part #517-15362-10-00
Washer, Needle Valve (Ref #11)
11
Part #93210-19123-00
PROTECTOR (Ref #12)
12
Part #4BC-15491-00-00
Screw, Pan Head (Ref #13)
13
Part #98517-06012-00
-
10517-15362-02-00
Plug, Oil Level
1Replaced by 517-15362-10-00 Доступно: Нет в наличии
-
-
Цена: 390.00 р.
Доступно: 4
-
-
1398507-06012-00
Screw, Pan Head
1Replaced by 98517-06012-00 Доступно: Нет в наличии
