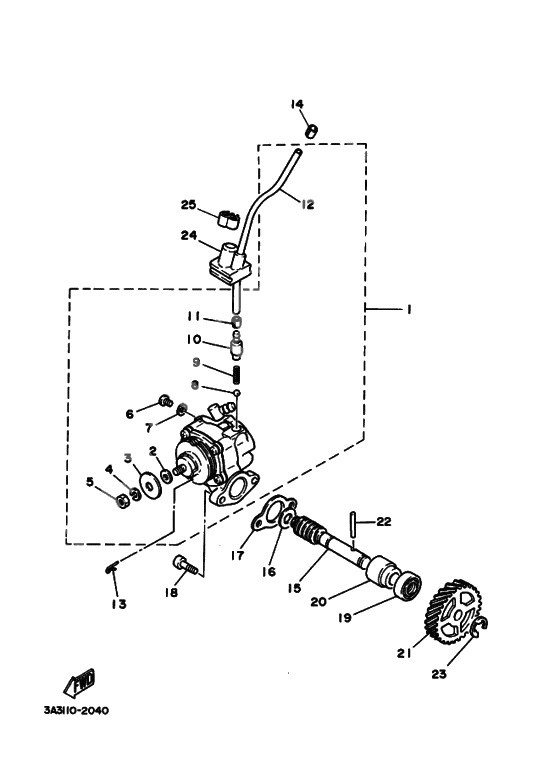

Oil pump
Oil pump
Oil Pump Assy (Ref #1)
1
Part #3UL-13101-00-00
Shim (T=1.0) (Ref #2)
2
Part #137-13137-00-10
Shim (T=0.5) (Ref #2)
2
Part #137-13137-00-05
Shim (T=0.3) (Ref #2)
2
Part #137-13137-00-03
Плата ругулятора (Ref #3)
3
Part #137-13138-01-00
Washer, Plate (Ref #4)
4
Part #92907-05100-00
Nut, flange (Ref #5)
5
Part #95317-05600-00
Screw, Pan Head (Ref #6)
6
Part #98907-04008-00
Прокладка (Ref #7)
7
Part #90430-04004-00
Ball (Ref #8)
8
Part #93505-32002-00
Пружина компрессора (Ref #9)
9
Part #90501-02217-00
. . ノズル アセンブリ (Ref #10)
10
Part #402-13552-00-00
CLIP (Ref #11)
11
Part #90468-02033-00
Pipe, Over Flow 1 (Ref #12)
12
Part #904-4505M-07-00
Hose (L200) (Ref #12)
12
Part #904-4505N-13-00
CLIP (Ref #13)
13
Part #367-13146-01-00
Shaft, Worm (Ref #15)
15
Part #275-13175-01-00
Washer, Plate (Ref #16)
16
Part #90201-08624-00
Прокладка насоса (Ref #17)
17
Part #126-13116-01-00
Screw, Pan Head (Ref #18)
18
Part #98507-05016-00
Oil seal (Ref #19)
19
Part #93101-10002-00
Metal, Worm Shaft Outer (Ref #20)
20
Part #137-13176-00-00
Ведущая шестерня (Ref #21)
21
Part #248-13178-00-00
Pin, Dowel (Ref #22)
22
Part #93603-22028-00
Circlip (Ref #23)
23
Part #99001-08600-00
Держатель масляной трубы (Ref #24)
24
Part #525-13174-00-00
CLIP (Ref #25)
25
Part #90468-15020-00
