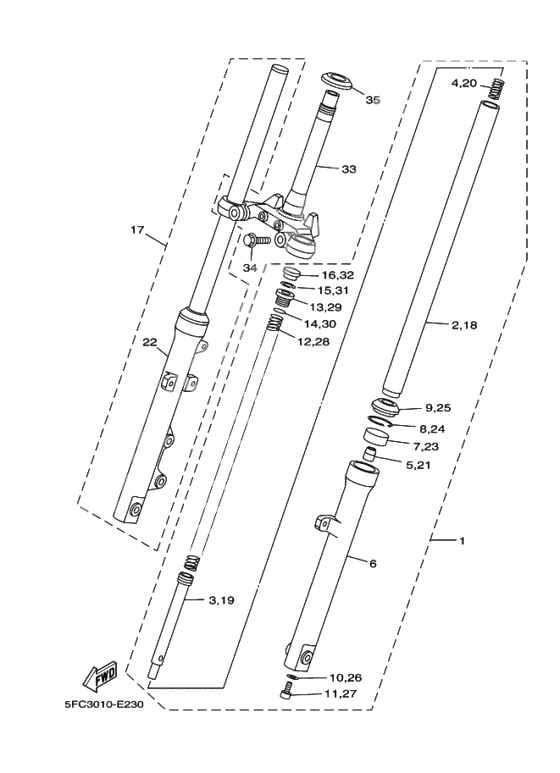

Front fork assy(ur silv
Front fork assy(ur silv
Front Fork Assy (L.h) (Ref #1)
1
Part #5FC-23102-00-00
Inner Tube Comp.1 (Ref #2)
2
Part #5FC-23110-00-00
Cylinder Comp., Front Fork (Ref #3)
3
Part #5FC-23170-00-00
Spring, Rebound (Ref #4)
4
Part #5R2-23151-00-00
Spindle, Taper (Ref #5)
5
Part #3VP-23173-00-00
Tube, Outer (L.h) (Ref #6)
6
Part #5FC-23126-00-00
Oil seal (Ref #7)
7
Part #5FC-23145-00-00
. CIRCLIP (Ref #8)
8
Part #93450-40N50-00
Seal, Dust (Ref #9)
9
Part #5FC-23144-00-00
Прокладка (Ref #10)
10
Part #90430-08143-00
Washer, Needle Valve (Ref #10)
10
Part #90201-08087-00
Болт диагональный (Ref #11)
11
Part #90110-08N51-00
Spring, Front Fork (Ref #12)
12
Part #5FC-23141-00-00
Bolt, cap (Ref #13)
13
Part #3VP-23111-00-00
Washer, Needle Valve (Ref #14)
14
Part #93210-16500-00
. CIRCLIP (Ref #15)
15
Part #3VP-23183-00-00
CAP (Ref #16)
16
Part #5FC-23154-00-00
Front Fork Assy (R.h) (Ref #17)
17
Part #5FC-23103-00-00
Tube, Outer 2 (Ref #22)
22
Part #5FC-23136-00-00
UNDER BRACKET COMP. (Ref #33)
33
Part #5FC-23340-10-00
BOLT (Ref #34)
34
Part #95027-10030-00
Обойма шарика 1 (Ref #35)
35
Part #156-23411-00-00
