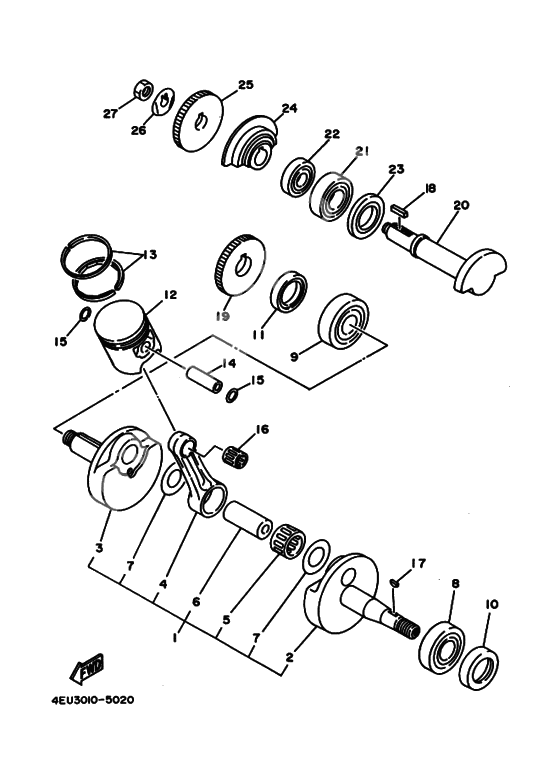

Crankshaft, piston
Crankshaft, piston
Вал коленчатый (Ref #1)
1
Part #4EU-11400-00-00
Кривошип (Ref #2)
2
Part #4EU-11412-00-00
Кривошип (Ref #3)
3
Part #4EU-11422-00-00
шатун (Ref #4)
4
Part #3R1-11651-01-00
Bearing Cylinder #10 (Ref #5)
5
Part #93310-418C4-00
Палец шатунный (Ref #6)
6
Part #4V0-11681-00-00
Washer, Plate (Ref #7)
7
Part #90209-18112-00
Washer, Plate (Ref #7)
7
Part #90209-18112-00
Washer, Plate (Ref #7)
7
Part #90209-18112-00
Washer, Plate (Ref #7)
7
Part #90209-18112-00
BEARING (Ref #8)
8
Part #93306-20475-00
BEARING (Ref #9)
9
Part #93306-30442-00
Oil seal (Ref #10)
10
Part #931-02204-47-00
Oil seal (Ref #11)
11
Part #93103-28011-00
Piston (std) (Ref #12)
12
Part #4EU-11631-00-A0
Piston (std) (Ref #12)
12
Part #4EU-11631-00-D0
Piston (std) (Ref #12)
12
Part #4EU-11631-00-B0
Piston (std) (Ref #12)
12
Part #4EU-11631-00-C0
Кольца поршневые (Ref #13)
13
Part #4EU-11603-20-00
ピン, ピストン (Ref #14)
14
Part #102-11633-02-00
Circlip (Ref #15)
15
Part #93450-13022-00
Circlip (Ref #15)
15
Part #93450-13022-00
Circlip (Ref #15)
15
Part #93450-13022-00
Circlip (Ref #15)
15
Part #93450-13022-00
BEARING (Ref #16)
16
Part #93310-11268-00
KEY,WOODRUFF (Ref #17)
17
Part #90280-03017-00
Key, Straight (Ref #18)
18
Part #90282-05047-00
Ведущая шестерня (Ref #19)
19
Part #4BA-11536-00-00
Грузик (Ref #20)
20
Part #4EU-11454-00-00
Bearing (7K2) (Ref #21)
21
Part #93306-00423-00
BEARING (Ref #22)
22
Part #93306-20211-00
Oil seal (Ref #23)
23
Part #93102-25446-00
Грузик (Ref #24)
24
Part #4EU-11464-00-00
Gear, Balance Weight (Ref #25)
25
Part #4BA-11531-01-00
Шайба, стопорная (Ref #26)
26
Part #90215-10284-00
Nut, flange (Ref #27)
27
Part #90170-10405-00
